10-013816-01EN, Rev. 2, June 2020

Scanner Assembly and Setup 43

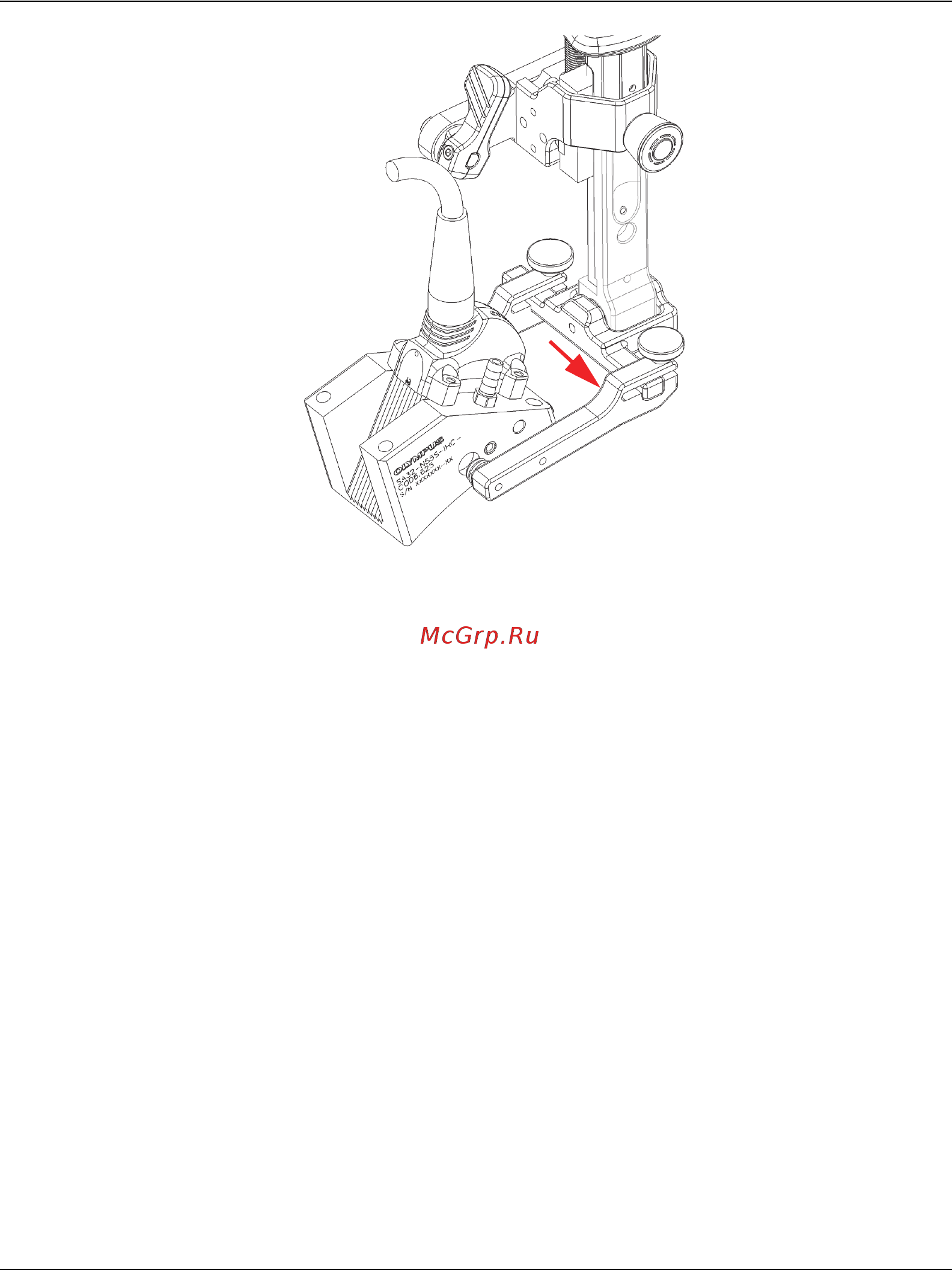

Figure 2-13 Sliding the yoke arm to the tip of the yoke pivoting beam

2. Remove the probe/wedge assembly from the yoke.

3. To reinstall a probe/wedge assembly, align the wedge pivot holes with the button

of the yoke arm that is not slid out (Figure 2-14 on page 44).
