Icom IC-M602 [11/78] Panel description
![Icom IC-M602 [11/78] Panel description](/views2/1074668/page11/bgb.png)
5
2

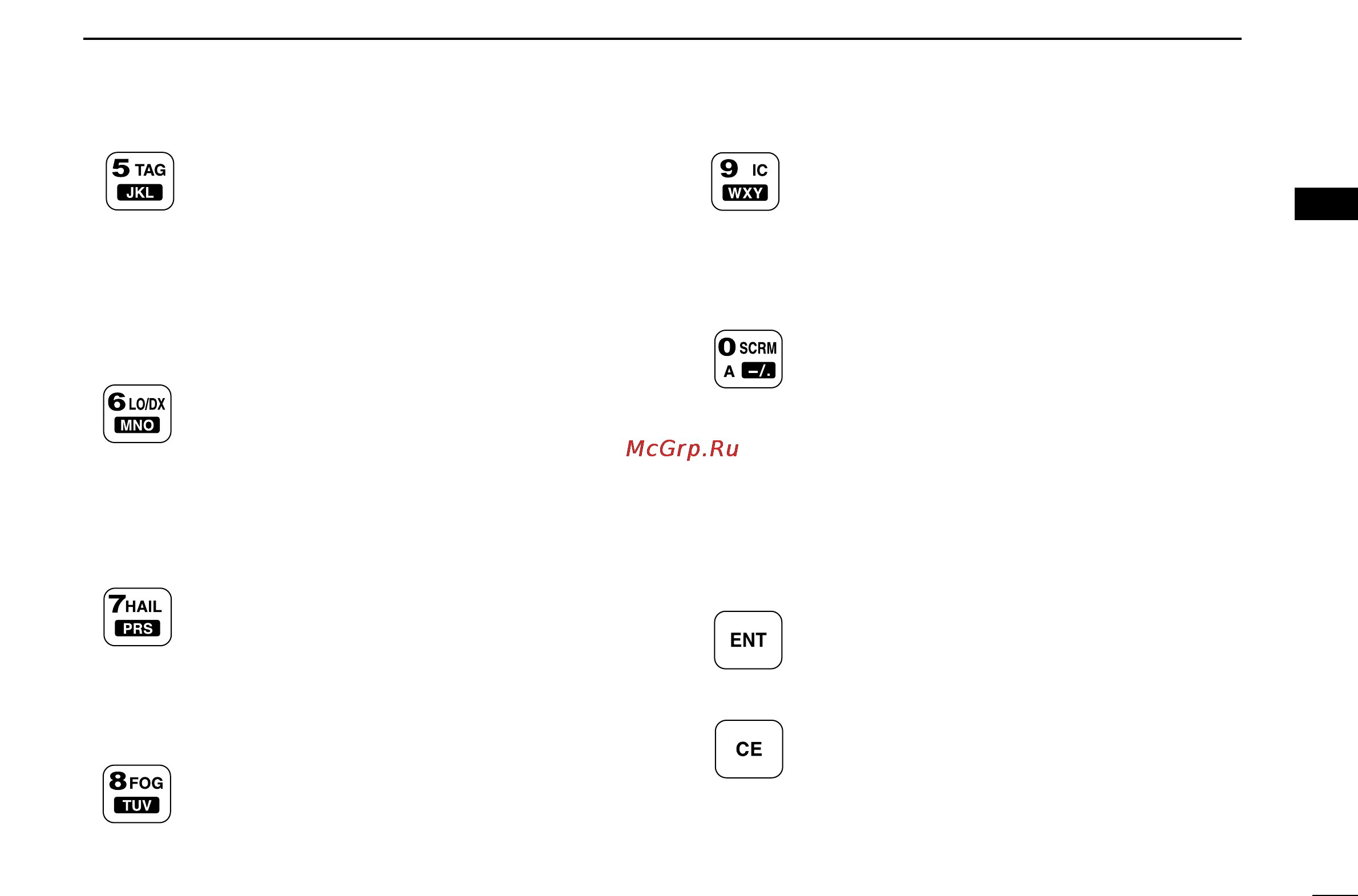

PANEL DESCRIPTION
➥ Inputs the numeral “5” for channel number
input, etc.
➥ Inputs “5,” “J,” “K,” “L,” “j,” “k” or “l” for channel
comment input.
➥ After pushing [F], sets the displayed channel
as a tag (scanned) channel. (p.17)
➥ While pushing [H/L], push for 3 sec. to clear all
tag channels. (p.17)
➥ Inputs the numeral “6” for channel number
input, etc.
➥ Inputs “6,” “M,” “N,” “O,” “m,” “n” or “o” for
channel comment input.
➥ After pushing [F], turns the attenuator function
ON or OFF. (p. 10)
•“LOCAL” appears when the attenuator is in use.
➥ Inputs the numeral “7” for channel number
input, etc.
➥ Inputs “7,” “P,” “R,” “S,” “p,” “r” or “s” for chan-
nel comment input.
➥ After pushing [F], turns the hailer function ON
or OFF. (p. 41)
➥ Inputs the numeral “8” for channel number
input, etc.
➥ Inputs “8,” “T,” “U,” “V,” “t,” “u” or “v” for channel
comment input.
➥ After pushing [F], turns the auto fog horn func-
tion ON or OFF. (p. 43)
➥ Inputs the numeral “9” for channel number
input, etc.
➥ Inputs “9,” “W,” “X,” “Y,” “w,” “x” or “y” for chan-
nel comment input.
➥ After pushing [F], turns the intercom function
ON or OFF. (p. 40)
➥ Inputs the numeral “0” for channel number
input, etc.
➥ Push for 1 sec. to edit “A” channel for channel
number input.
➥ Inputs “0” and symbols (“–” “/” “.”) for channel
comment input.
➥ After pushing [F], activates an optional voice
scrambler function. (p. 13)
•The optional voice scrambler function cannot be
used on Channel 16 and 70.
➥ Fixes input of channel number and channel
comment, etc.
➥ Clears entered digits and retrieves the previ-
ous frequency, channel or channel names dur-
ing setting.
2
