Icom IC-M602 [14/78] Basic operation
![Icom IC-M602 [14/78] Basic operation](/views2/1074668/page14/bge.png)
8
3
BASIC OPERATION

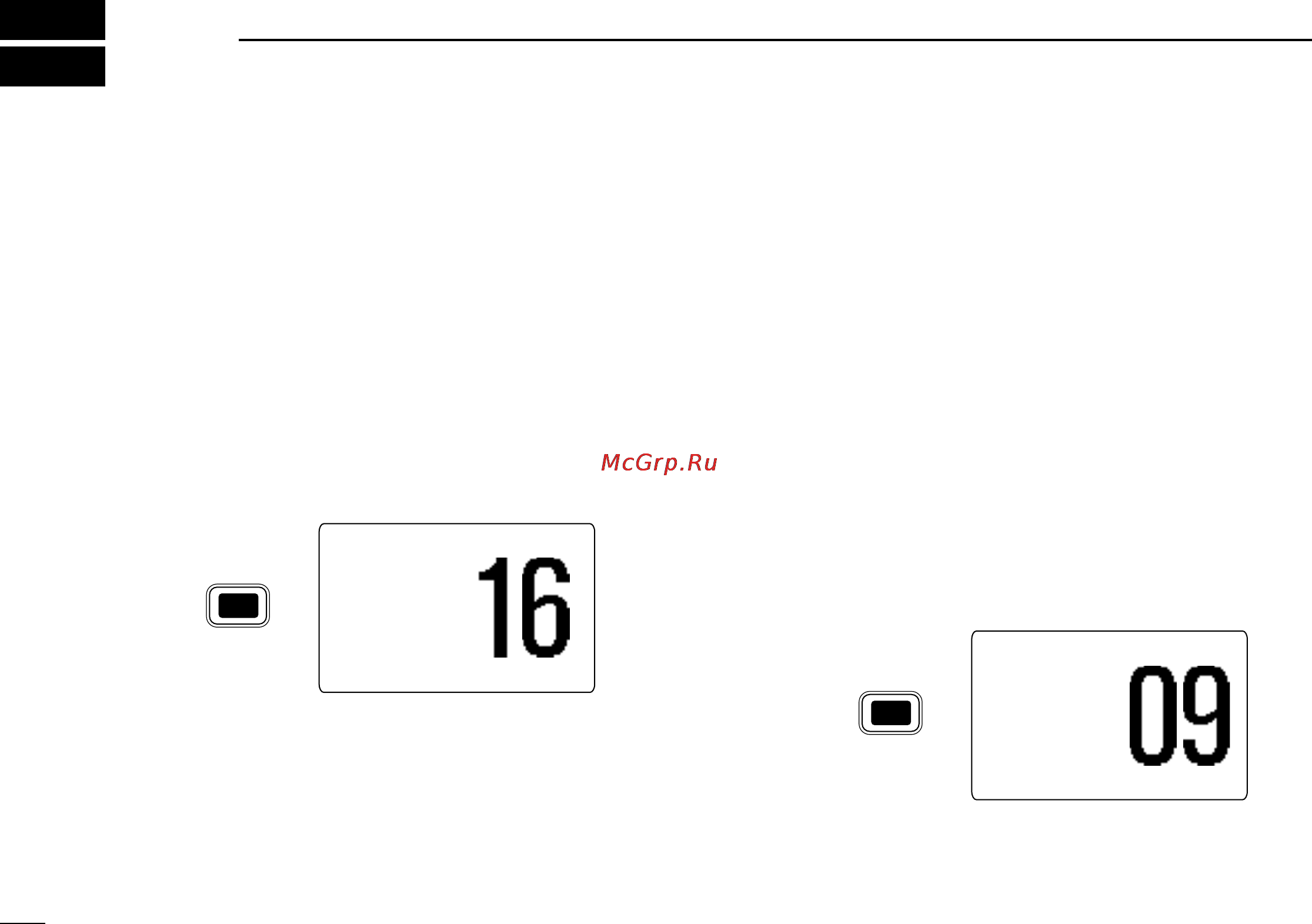

■ Channel selection
DD
Channel 16
Channel 16 is the distress and safety channel. It is used for
establishing initial contact with another station and for emer-
gency communications. Channel 16 is monitored during both
dualwatch and tri-watch. While standing by, you must monitor
Channel 16.
➥ Push [16•9] momentarily to select Channel 16.
➥ Push [CH/WX•U/I/C] to return to the condition before se-
lecting Channel 16, or rotate [CHANNEL] to select operat-
ing channel.
DD
Channel 9 (Call channel)
Each regular channel group has a separate leisure-use call
channel. The call channel is monitored during tri-watch. The
call channels can be programmed (p. 11) and are used to
store your most often used channels in each channel group
for quick recall.
➥ Push [16•9] for 1 sec. to select the call channel of the se-
lected channel group.
•“CALL” and call channel number appear.
• Each channel group may have an independent call channel after
programming a call channel.
➥ Push [CH/WX•U/I/C] to return to the condition before se-
lecting the call channel
, or rotate [CHANNEL] to select an
operating channel.
Push for
1 sec.
9
16
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.206N
123"23.236W
--UTC-10:10--CALLING
Push
9
16
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.206N
123"23.236W
--UTC-10:10--CALLING
