SCAN OPERATION
17

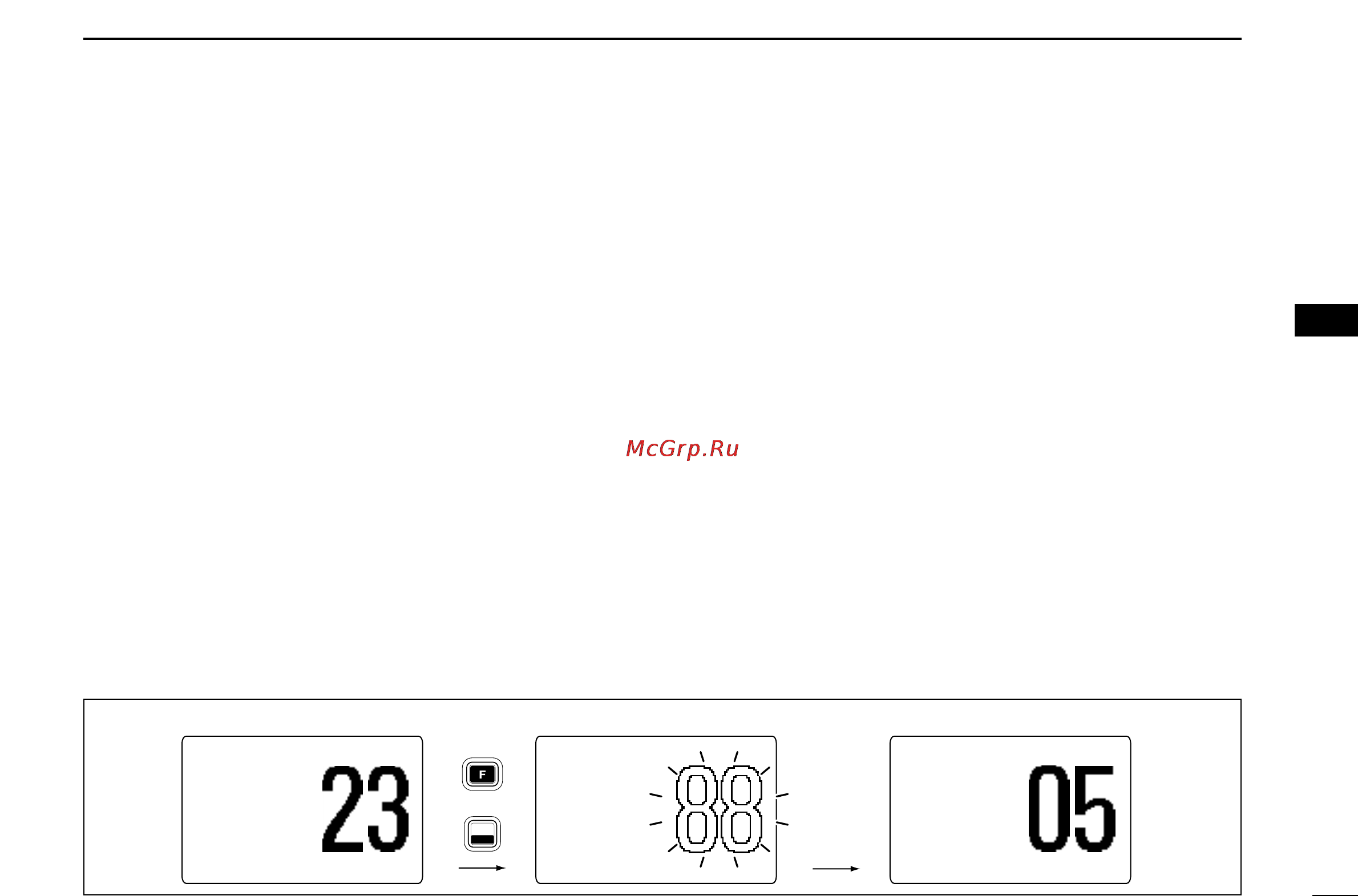

Push
SCN
GHI
then
Scan starts. When a signal is received
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.206N
123"23.236W
--UTC-10:10---INTL-
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.206N
123"23.236W
--UTC-10:10---INTL-
4
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.206N
123"23.236W
--UTC-10:10---INTL-
[Example]: Starting a normal scan.
■ Setting tag channels
For more efficient scanning, add desired channels as tag
channels or clear tag channels for unwanted channels. Chan-
nels set as non-tag channels will be skipped during scanning.
Tag channels can be assigned to each channel group
(U.S.A., International, Canada) independently.
q While pushing [H/L], push [CH/WX•U/I/C] one or more
times to select the desired channel group, if desired.
w Select the desired channel to set as a tag channel.
e Push [F], then push [5
TAG] to set the displayed channel
as a tag channel.
•“TAG” appears in the display.
r To cancel the tag channel setting, repeat step e.
•“TAG” disappears.
• Clearing all tag channels in the selected channel group
➥ While pushing [H/L], push [5
TAG] for 3 sec. to clear all tag
channels in the channel group.
■ Starting a scan
Set scan type (priority or normal scan) and scan resume timer
in advance using set mode. (p. 45)
q Set tag channels as described at left.
w Make sure the squelch is closed to start a scan.
e While pushing [H/L], push [CH/WX•U/I/C] one or more
times to select the desired channel group, if desired.
r
Push [F], then push [4
SCN
] to start priority or normal scan.
•“PRI-SCAN 16” or “NORMAL SCAN” appears in the function
display.
•When a signal is detected, scan pauses until the signal disap-
pears or resumes after pausing 5 sec. according to set mode set-
ting. (Channel 16 is still monitored during priority scan.)
•Rotate [CHANNEL] to check the scanning tag channels, to
change the scanning direction or resume the scan manually.
•“16” blinks and a beep tone sounds when a signal is received
on Channel 16 during priority scan.
t To stop the scan, push [CLR] or repeat step r.
5
