HM-127 REMOTE-CONTROL MICROPHONE

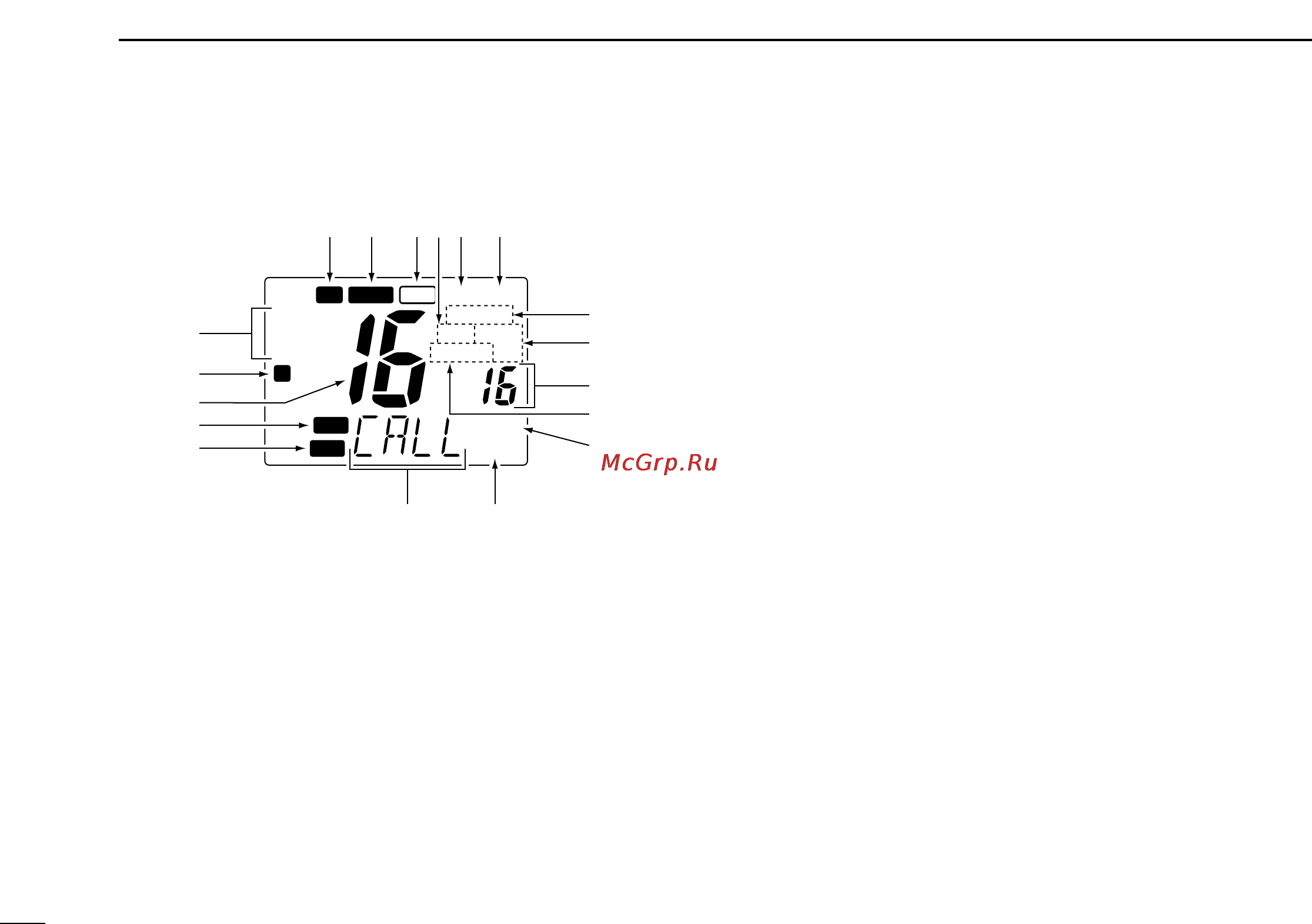

■ Function display
q CHANNEL GROUP INDICATOR (pgs. 9, 64)
Indicates whether an International (INT), U.S.A. (USA) or
Canadian (CAN) channel is selected.
w KEY LOCK INDICATOR (p. 66)
➥ Appears while the key lock function is in use.
➥ Flashes while the all key lock function is in use.
e CHANNEL NUMBER READOUT
➥ Indicates the selected operating channel number. “A”
appears when a simplex channel is selected. “b” ap-
pears when a receive only channel for a Canadian chan-
nel group is selected. (pgs. 9, 64)
➥ In set mode, indicates the selected condition. (pgs. 44,
69)
➥ “IC” appears during intercom mode. (pgs. 40, 70)
r VOLUME INDICATOR (p. 65)
Appears while audio output level is adjusted.
t SQUELCH INDICATOR (p. 65)
Appears while noise squelch level is adjusted.
y CHANNEL NAME INDICATOR
➥ Channel comment appears (and scrolls) if programmed.
(pgs. 11, 70)
➥ In set mode, indicates or scrolls the selected set mode
item. (pgs. 44, 69)
u ATTENUATOR INDICATOR (pgs. 10, 65)
Appears when the RF attenuator is in use.
i SCRAMBLER INDICATOR (pgs. 13, 67)
Appears when an optional voice scrambler is activated.
o SCAN INDICATOR (pgs. 17, 68)
➥ “SCAN” appears during normal scan.
➥ “P SCAN” appears during priority scan.
!0 PRIORITY CHANNEL INDICATOR
➥ Indicates a priority channel during priority scan or
dual/tri-watch. (pgs. 14, 17, 68)
CALL
WX ALT
DUP
P SCAN
SCRM
LOCAL
TRI
DUAL
LOW
TAG
CAN
USA
INT
L
TX
BUSY
VOL
SQL
q
w
r
t
e
!8 !7 !4!5 !3
!2
!1
!0
o
i
uy
!6
