DSC OPERATION
DD
Receiving an individual call
While monitoring Channel 70 and an individual call is re-
ceived:
➥ The emergency alarm or beeps sound depending on the
received category.
➥ “Received Individual” appears in the display.
➥ Push [ENT] to change to the channel specified by the call-
ing station for voice communication; push [CLR] to ignore
the individual call.
DD
Receiving a position request call
While monitoring Channel 70 and a position request call is re-
ceived:
➥ “Received POS REQ” appears in the display.
➥ Push [ENT] to reply to the call.
DD
Receiving a polling request call
While monitoring Channel 70 and a polling request call is re-
ceived:
➥ “Received POLL REQ” appears in the display.
➥ Push [ENT] to reply to the call.

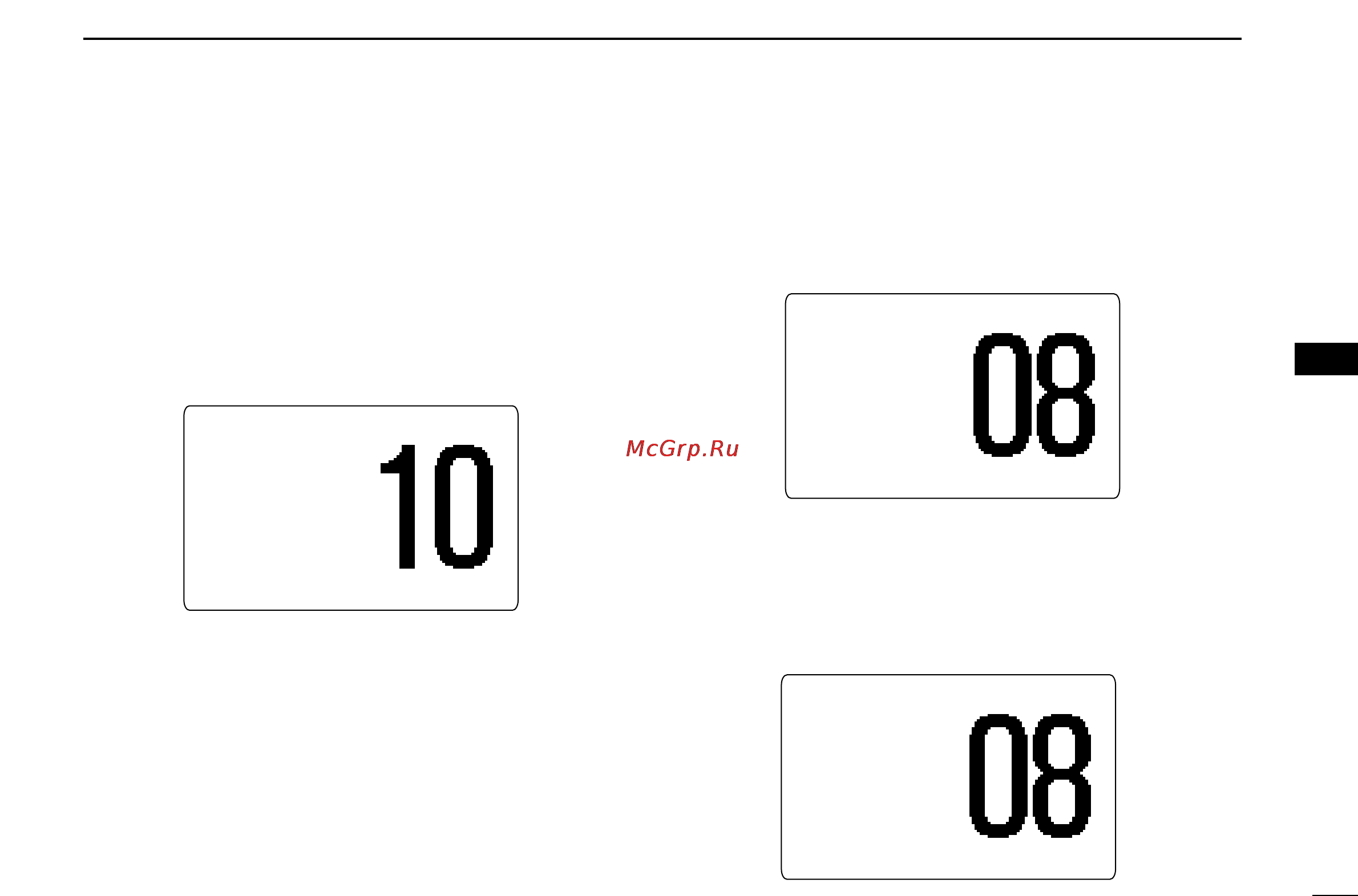

BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
POLL REQ
<Chuck3
<CLR˘Exit>
<ENT˘Reply>COMMERCIAL
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
POS REQ
<Chuck3
<CLR˘Exit>
<ENT˘Reply>COMMERCIAL
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
Individual
<Chuck3
<CLR˘Exit>
<ENT˘OK> COMMERCIAL
