HM-127 REMOTE-CONTROL MICROPHONE
OPTIONAL

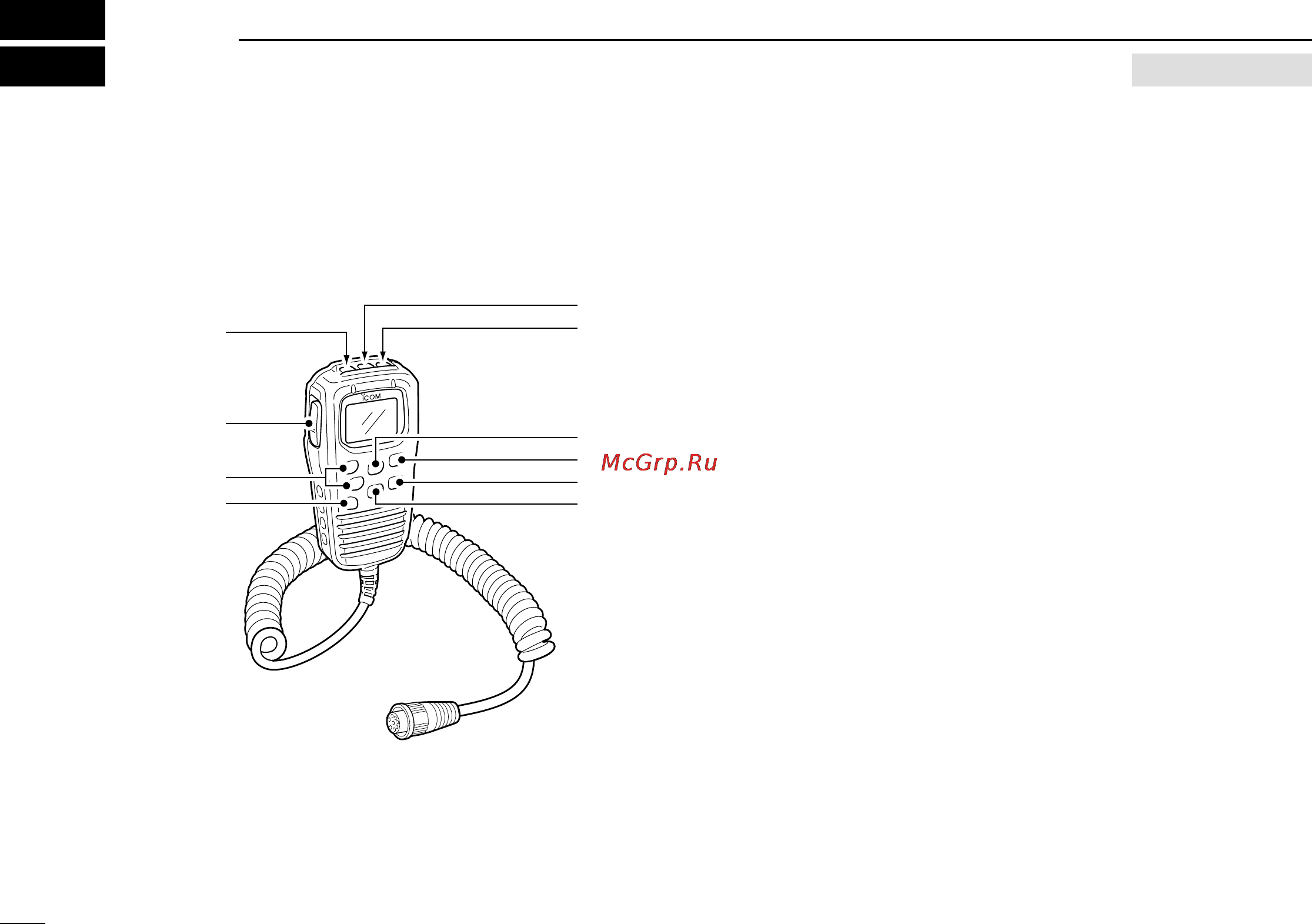

■ Panel description
The optional HM-127 remotely controls the IC-M602 and pro-
vides an optional intercom function.
q POWER SWITCH [PWR] (pgs. 10, 65)
Push for 2 sec. to turn the HM-127 power ON or OFF
when the IC-M602 power is turned ON.
w PTT SWITCH [PTT] (pgs. 10, 65)
Push and hold to transmit; release to receive.
e CHANNEL UP/DOWN SWITCHES [
YY
]/[
ZZ
]
➥ Push either switch to change the operating channel, set
mode contents, etc. (pgs. 10, 65)
➥ Push either switch to adjust audio level or noise squelch
level after [VOL] or [SQL] is pushed, respectively. (pgs.
10, 65)
➥
Push either switch to adjust the brightness of the LCD and
switch backlight after [VOL] is pushed for 1 sec. (p. 66)
➥ In set mode, changes setting of the selected item. (pgs.
44, 69)
➥ Checks tag channels or changes scanning direction dur-
ing scan. (pgs. 17, 68)
r CHANNEL 16/CALL CHANNEL SWITCH [16•9]
➥ Selects channel 16 when pushed. (pgs. 8, 64)
➥ Selects call channel when pushed for 1 sec. (pgs. 8, 64)
•“CALL” appears when call channel is selected.
➥ Push for 3 sec. to enter call channel programming con-
dition when call channel is selected. (pgs. 11, 67)
➥ While pushing [H/L], enters memory name programming
condition. (pgs. 11, 70)
➥ Enters set mode when pushed while turning power ON.
(pgs. 44, 69)
t CHANNEL/DUALWATCH/TRI-WATCH SWITCH
[CH/WX•DW•U/I/C]
➥ Selects and toggles the regular channels and weather
channel when pushed momentarily. (pgs. 9, 64)
q
w
r
e
u
y
t
i
o
!0
