ASUS ESC4000 DHD G4 7-3

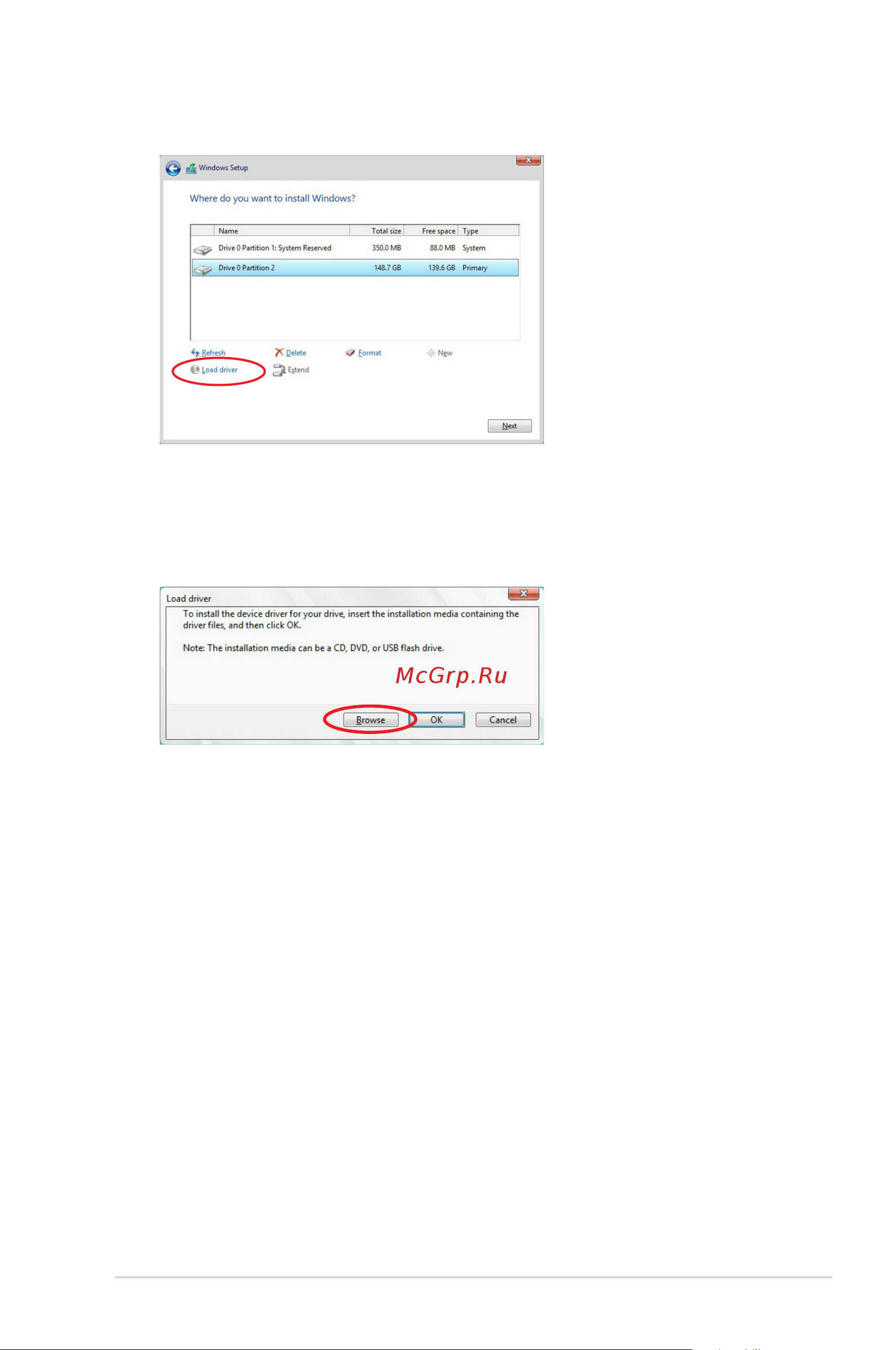

3. Click Load Driver.

4. A message appears, reminding you to insert the installation media containing the driver

of the RAID controller driver. If you have only one optical drive installed in your system,

eject the Windows OS installation disc and replace with the motherboard Support DVD

into the optical drive. Click Browse to continue.

5. Locate the driver in the corresponding folder of the Support DVD then click OK to

continue.

6. Select the RAID controller driver you need from the list and click Next.
