7-4 Chapter 7: Driver Installation

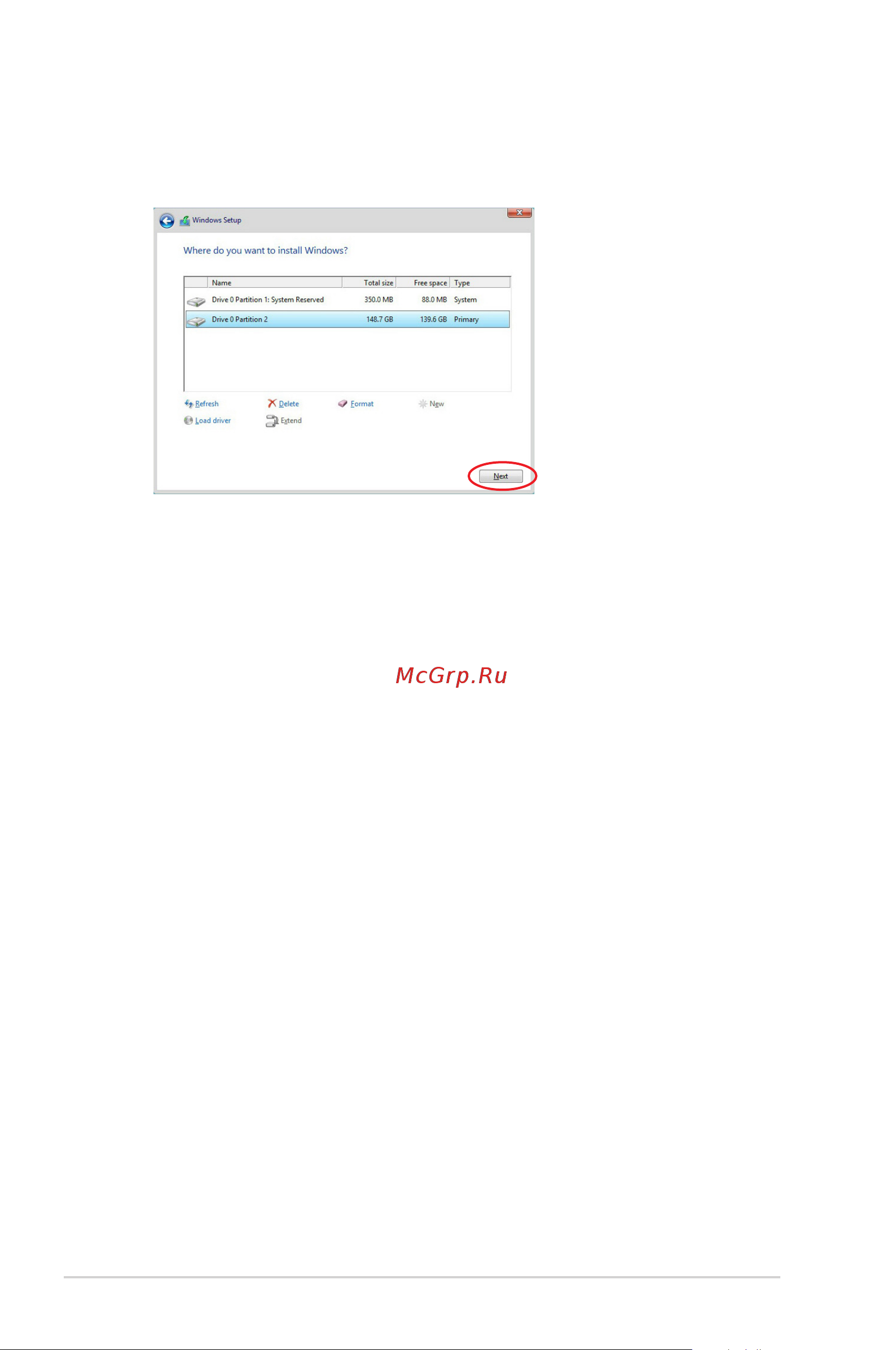

7. When the system nishes loading the RAID driver, replace the motherboard Support

DVD with the Windows Server installation disc. Select the drive to install Windows and

click Next.

8. Setup then proceeds with the OS installation. Follow screen instructions to continue.
