Daikin EHYKOMB33AA2 [10/136] About the box
![Daikin EHYKOMB33AA2 [10/136] About the box](/views2/1746854/page10/bga.png)

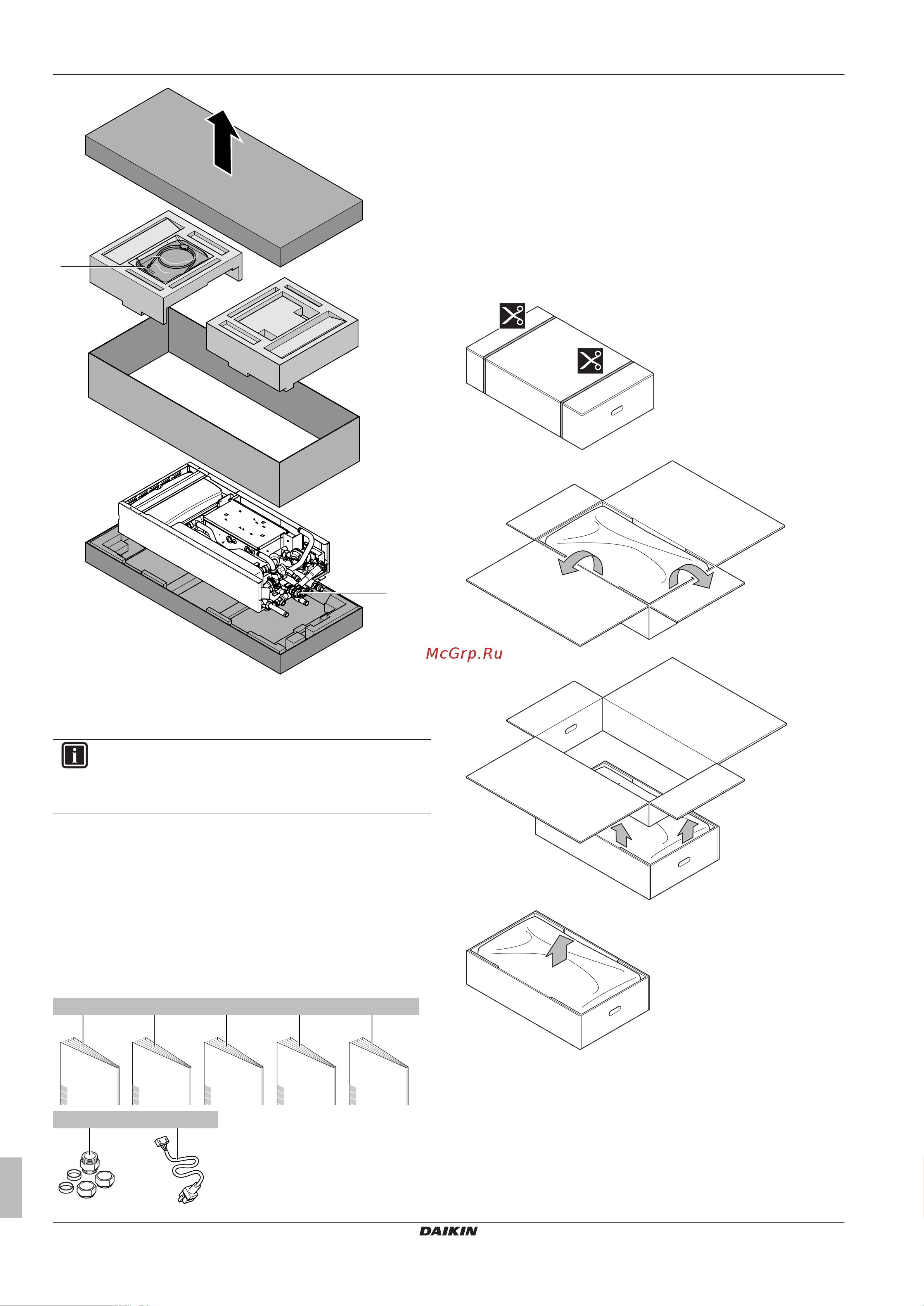

4 About the box
Installer reference guide
10
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02
a
b
a Installation manual, operation manual, addendum book for
optional equipment, quick installation guide, general safety
precautions, boiler communication cable
b Connection pieces for the gas boiler
INFORMATION
Do NOT throw away the upper cardboard cover. On the
outside of the cardboard cover, the installation pattern is
printed.
4.3.2 To remove the accessories from the
indoor unit
The installation manual, operation manual, addendum book for
optional equipment, general safety precautions, quick installation
guide, and boiler communication cable are located in the upper part
of the box. The connection pieces for the gas boiler are attached to
the water piping.
1 Remove the accessories as described in "4.3.1To unpack the
indoor unit"on page9.
a b c d e
f g
a General safety precautions
b Addendum book for optional equipment
c Indoor unit installation manual
d Operation manual
e Quick installation guide
f Connection pieces for gas boiler
g Boiler communication cable
4.4 Gas boiler
4.4.1 To unpack the gas boiler
Before unpacking, move the gas boiler as close as possible to its
installation position.
1
2
