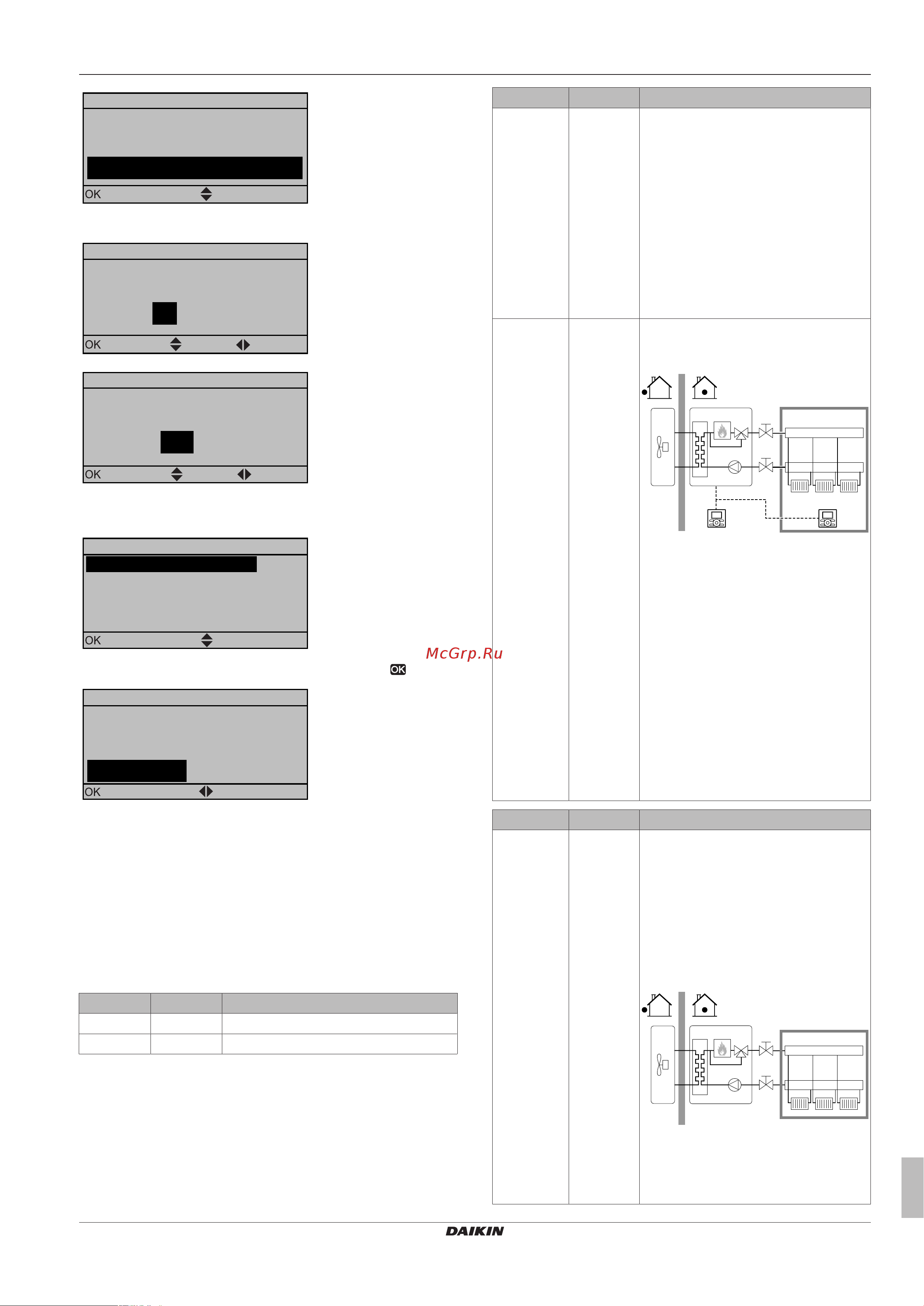

8 Configuration
Installer reference guide
53
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02
Language
Select the desired language
Confirm Adjust
2 Set the current date and time.
1 2013
Jan
Tue
Confirm Adjust Scroll
Date
What is the date today?
00 : 00
What is the current time?
Time
Confirm
Adjust
Scroll
3 Set the system layout settings: Standard, Options, Capacities.
For more details, see "8.1.2Basic configuration"on page53.
A.2 1
Scroll
Select
System layout
Standard
Options
Capacities
Confirm layout
4 After configuration, select Confirm layout and press .
Confirm layout
Please confirm the system
layout. The system will
restart and will be ready for
first startup.
OK
Cancel
Confirm
Adjust
5 The user interface re-initialises and you can proceed the
installation by setting the other applicable settings and
commissioning of the system.
When the installer settings are changed, the system will request to
confirm. When confirmation is complete, the screen will shortly turn
OFF and "busy" will be displayed for several seconds.
8.1.2 Basic configuration
Quick wizard: Language / time and date
# Code Description
[A.1] N/A Language
[1] N/A Time and date
Quick wizard: Standard
Space heating/cooling settings
The system can heat up or cool down a space. Depending on the
type of application, the space heating/cooling settings must be made
accordingly.
# Code Description
[A.2.1.7] [C-07] Unit temperature control:
▪ 0 (LWT control): Unit operation is
decided based on the leaving water
temperature regardless the actual
room temperature and/or heating or
cooling demand of the room.
▪ 1 (Ext RT control): Unit operation is
decided by the external thermostat or
equivalent (e.g. heat pump convector).
▪ 2 (RT control)(default): Unit operation
is decided based on the ambient
temperature of the user interface.
[A.2.1.B] N/A Only if there are 2user interfaces (1
installed in the room, 1 installed at the
indoor unit):
a
b
▪ a: At unit
▪ b: In room as room thermostat
User interface location:
▪ At unit: this user interface is used to
control the unit. The other user
interface is automatically set to In
room.
▪ In room (default): this user interface
acts as room thermostat. The other
user interface is automatically set to At
unit
# Code Description
[A.2.1.8] [7-02] The system can supply leaving water to
up to 2 water temperature zones. During
configuration, the number of water zones
must be set.
Number of LWT zones:
▪ 0 (1 LWT zone)(default): Only 1
leaving water temperature zone. This
zone is called the main leaving water
temperature zone.
a
▪ a: Main LWT zone
continued >>
