Daikin EHYKOMB33AA2 [107/136] Technical data
![Daikin EHYKOMB33AA2 [107/136] Technical data](/views2/1746854/page107/bg6b.png)

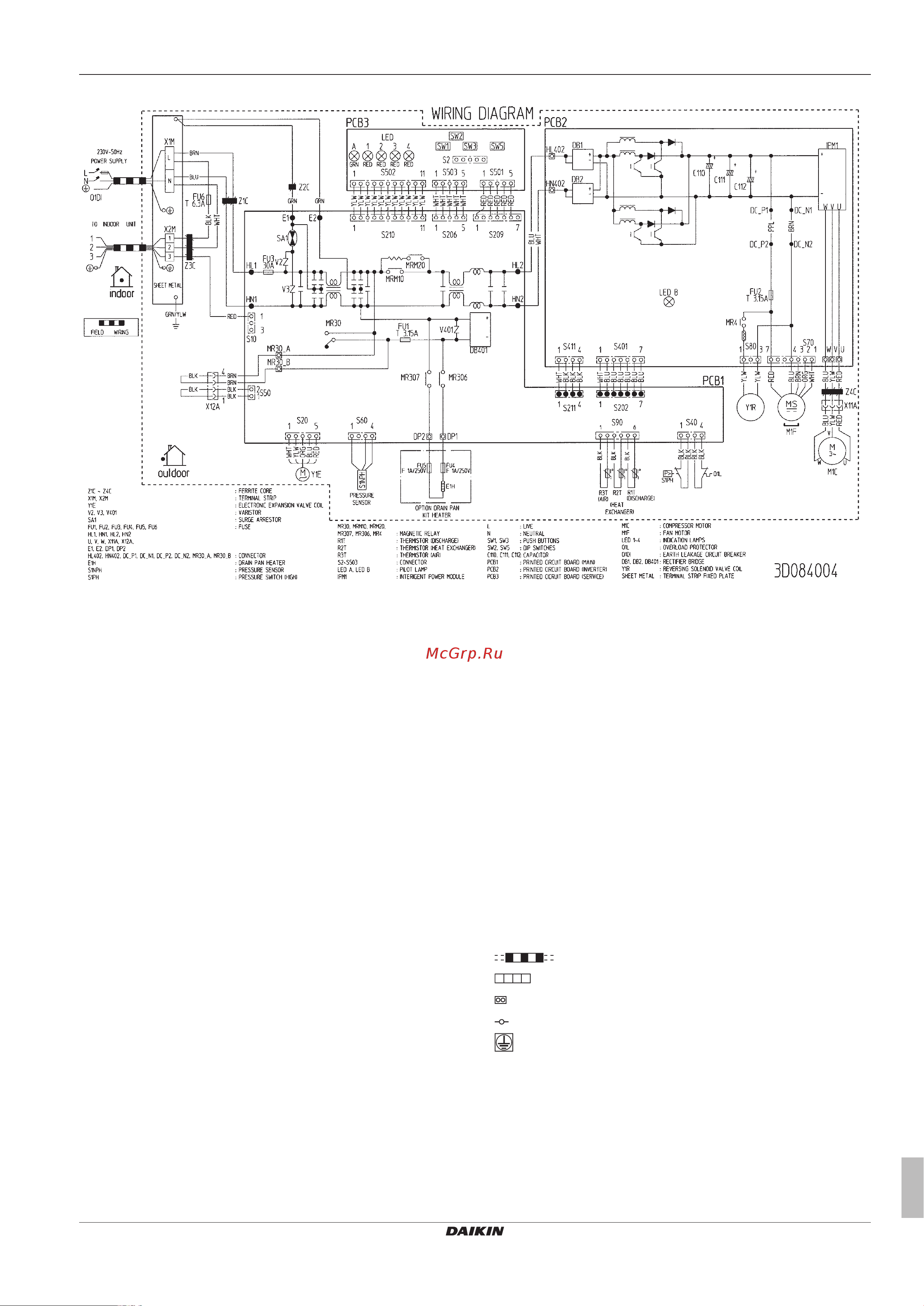

15 Technical data
Installer reference guide
107
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02
Only for EVLQ08CAV3
C110~C112 Capacitor
DB1, DB2, DB401 Rectifier bridge
DC_N1, DC_N2 Connector
DCM1, DCM2 Connector
DP1, DP2 Connector
DC_P1, DC_P2 Connector
DCP1, DCP2 Connector
E1, E2 Connector
E1H Drain pan heater
FU1~FU6 Fuse
HL1, HL2, HL402 Connector
HN1, HN2, HN402 Connector
IPM1 Interigent power module
L Live
LED 1~LED 4 Indication lamps
LED A, LED B Pilot lamp
M1C Compressor motor
M1F Fan motor
MR4, MR30, MR306,
MR307
Magnetic relay
MRM10, MRM20 Magnetic relay
MR30_A, MR30_B Connector
N Neutral
PCB1 Printed circuit board (main)
PCB2 Printed circuit board (inverter)
PCB3 Printed circuit board (service)
Q1DI Earth leakage circuit breaker
Q1L Overload protector
R1T Thermistor (discharge)
R2T Thermistor (heat exchanger)
R3T Thermistor (air)
S1NPH Pressure sensor
S1PH High pressure switch
S2~S503 Connector
SA1 Surge arrestor
SHEET METAL Terminal strip fixed plate
SW1, SW3 Push buttons
SW2, SW5 DIP switches
U Connector
V Connector
V2, V3, V401 Varistor
W Connector
X11A, X12A Connector
X1M, X2M Terminal strip
Y1E Electronic expansion valve coil
Y1R Reversing solenoid valve coil
Z1C~Z4C Ferrite core
Field wiring
Terminal strip
Connector
Terminal
Protective earth
BLK Black
BLU Blue
BRN Brown
GRN Green
ORG Orange
PPL Purple
RED Red
