7 Installation
Installer reference guide
24
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02

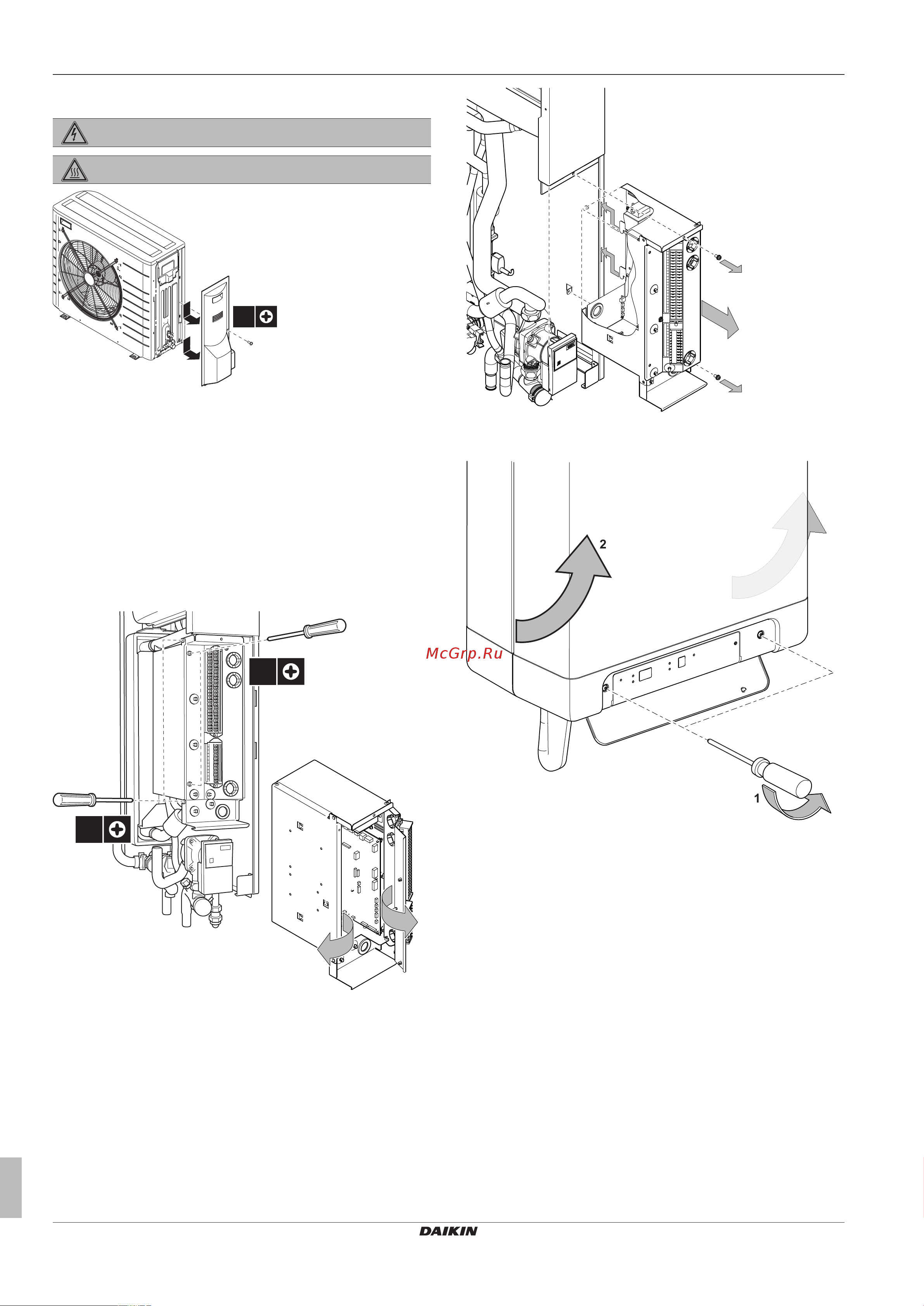

7.2.2 To open the outdoor unit
DANGER: RISK OF ELECTROCUTION
DANGER: RISK OF BURNING
1×
1
2
2
7.2.3 To open the switch box cover of the
indoor unit
1 Remove the side panel at the right side of the indoor unit. The
side panel is fixed at the bottom with 1 screw.
2 Remove the upper and lower screw on the side panel of the
switch box.
3 The right panel of the switch box will open.
4 Remove the upper and lower screw on the front panel of the
switch box.
5 The front panel of the switch box will open.
2×
2×
2
4
5
3
When the boiler is installed and access to the switch box is required,
please follow the steps below.
6 Remove the upper and lower screw on the side panel of the
switch box.
7 Remove the switch box from the unit.
8 Hook the switch box to the side of the unit with the hooks
foreseen on the switch box.
6
6
7
8
7.2.4 To open the gas boiler
1
2
1 Open the display cover.
2 Unscrew both screws.
3 Tilt the front panel towards you and remove the front panel.
7.2.5 To open the switch box cover of the gas
boiler
1 Open the gas boiler, see "7.2.4 To open the gas boiler" on
page24.
2 Pull the boiler controller unit forwards. The boiler controller will
tip downwards to provide access.
