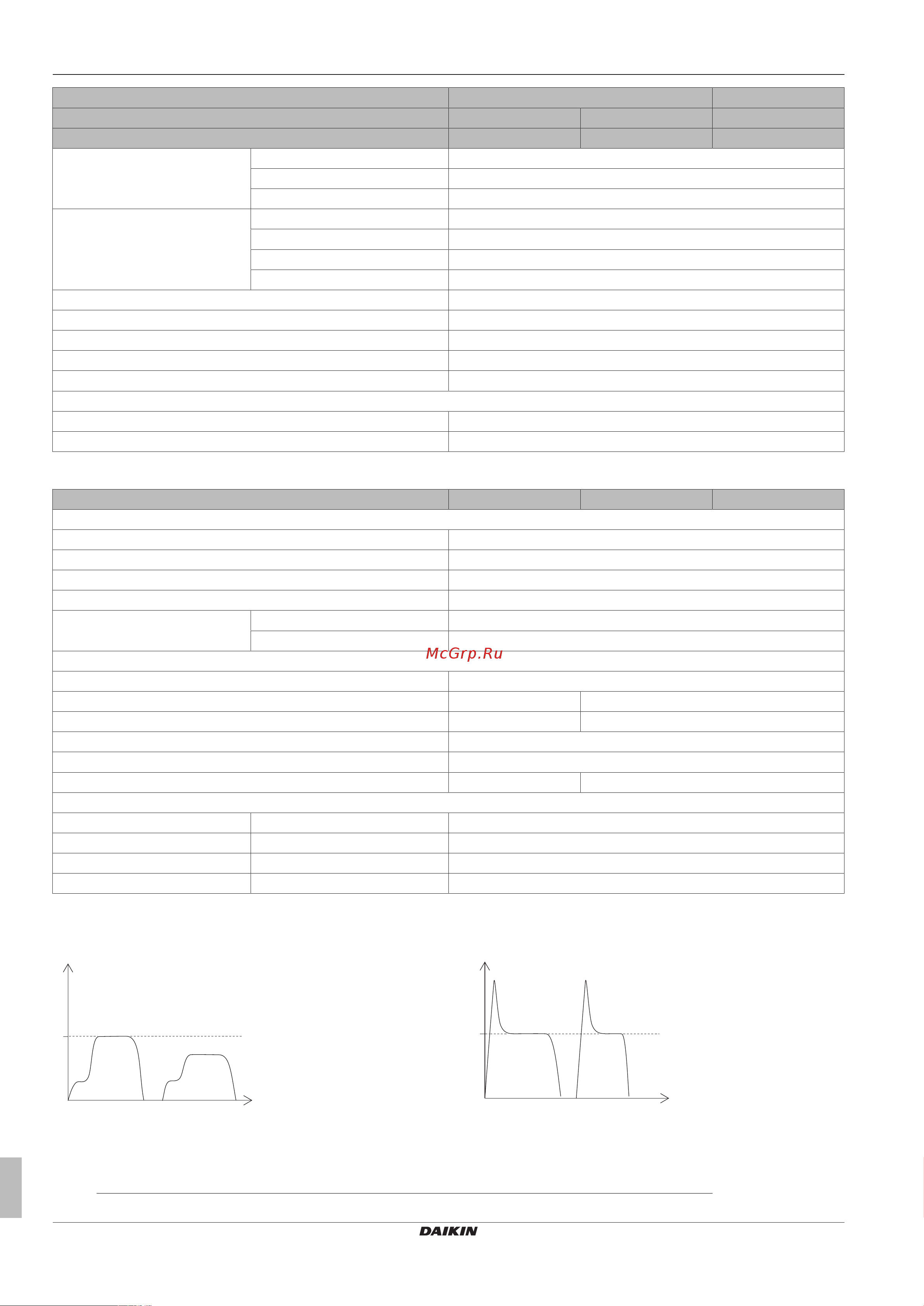

15 Technical data
Installer reference guide
116
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02
Heating only type Reversible type
Outdoor units EVLQ05CAV3 EVLQ08CAV3 EVLQ08CAV3
Indoor units EHYHBH05 EHYHBH08 EHYHBX08
Drain Quantity 2
Type Hole
Diameter (OD) 1×Ø15+1×Ø20mm
Piping length Minimum 3m
Maximum 20m
Equivalent —
Chargeless —
Additional refrigerant charge 0.02kg/m IF >10m
Maximum height difference between outdoor unit and indoor unit 20m
Defrost method Reverse cycle
Defrost control Sensor for outdoor heat exchanger temperature
Capacity control method Inverter controlled
Standard accessories
Item Installation manual
Quality 1
Electrical specifications
EVLQ05CAV3 EVLQ08CAV3 EVLQ08CAV3
Power supply
Name V3
Phase 1
Frequency 50Hz
Voltage 230V
Voltage range Minimum –10%
Maximum +10%
Current
Nominal running current —
Starting current 15.7A
3
15.9A
3
Maximum running current 15.7A 15.9A
Z
max
—
Minimum S
sc
value —
Recommended fuses 16A 20A
Wiring connections
For power supply Quantity 3
Remark —
For connection with indoor Quantity 4
Remark Earth wire
Figure A: Starting current
Daikin inverter controlled compressor starting current always less
then or equal to maximal running current.
A
B
D
E
C
A Running current
B Time
C Maximum
D Example 1
E Example 2
Standard on/off compressor starting current to maximum running
current
A
B
D E
C
A Running current
B Time
C Maximum
D Example 1
(3)
See figureA.
