7 Installation
Installer reference guide
43
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02
X1M
9
10
X5M
S3S
2 Fix the cable with cable ties to the cable tie mountings.

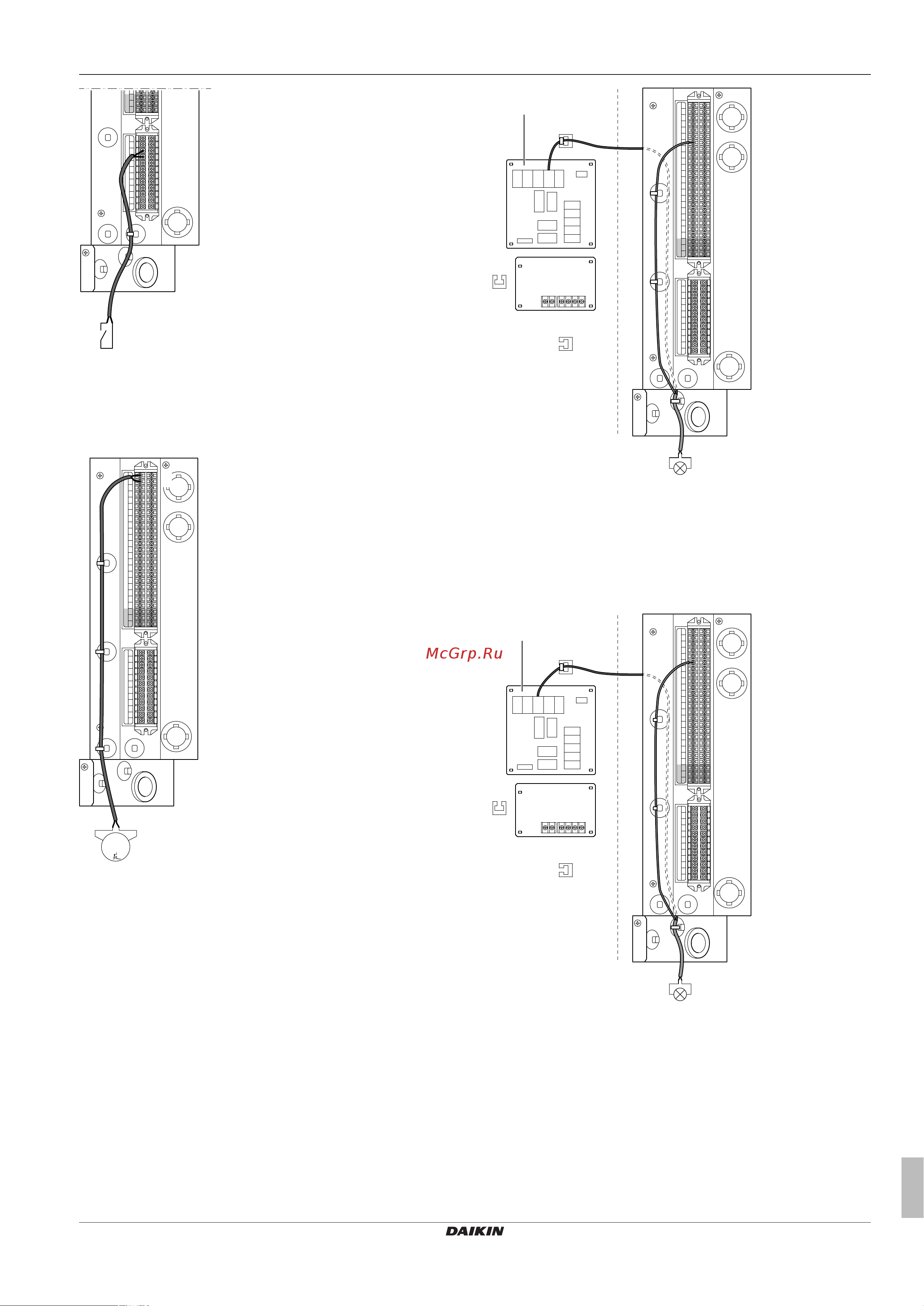

7.11.13 To connect the domestic hot water pump
1 Connect the domestic hot water pump cable to the appropriate
terminals as shown in the illustration below.
35
34
X2M
X1M
X5M
1~
M
M2P
2 Fix the cable with cable ties to the cable tie mountings.
7.11.14 To connect the alarm output
1 Connect the alarm output cable to the appropriate terminals as
shown in the illustration below.
28
Y1
X2M
X1M
A4P
A8P
X5M
a
a Installation of EKRP1HB is required.
2 Fix the cable with cable ties to the cable tie mountings.
7.11.15 To connect the space cooling/heating ON/
OFF output
1 Connect the space cooling/heating ON/OFF output cable to the
appropriate terminals as shown in the illustration below.
29
Y2
X2M
X1M
A4P
A8P
X5M
a
a Installation of EKRP1HB is required.
2 Fix the cable with cable ties to the cable tie mountings.
7.11.16 To connect the power consumption digital
inputs
1 Connect the power consumption digital inputs cable to the
appropriate terminals as shown in the illustration below.
