15 Technical data
Installer reference guide
124
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02

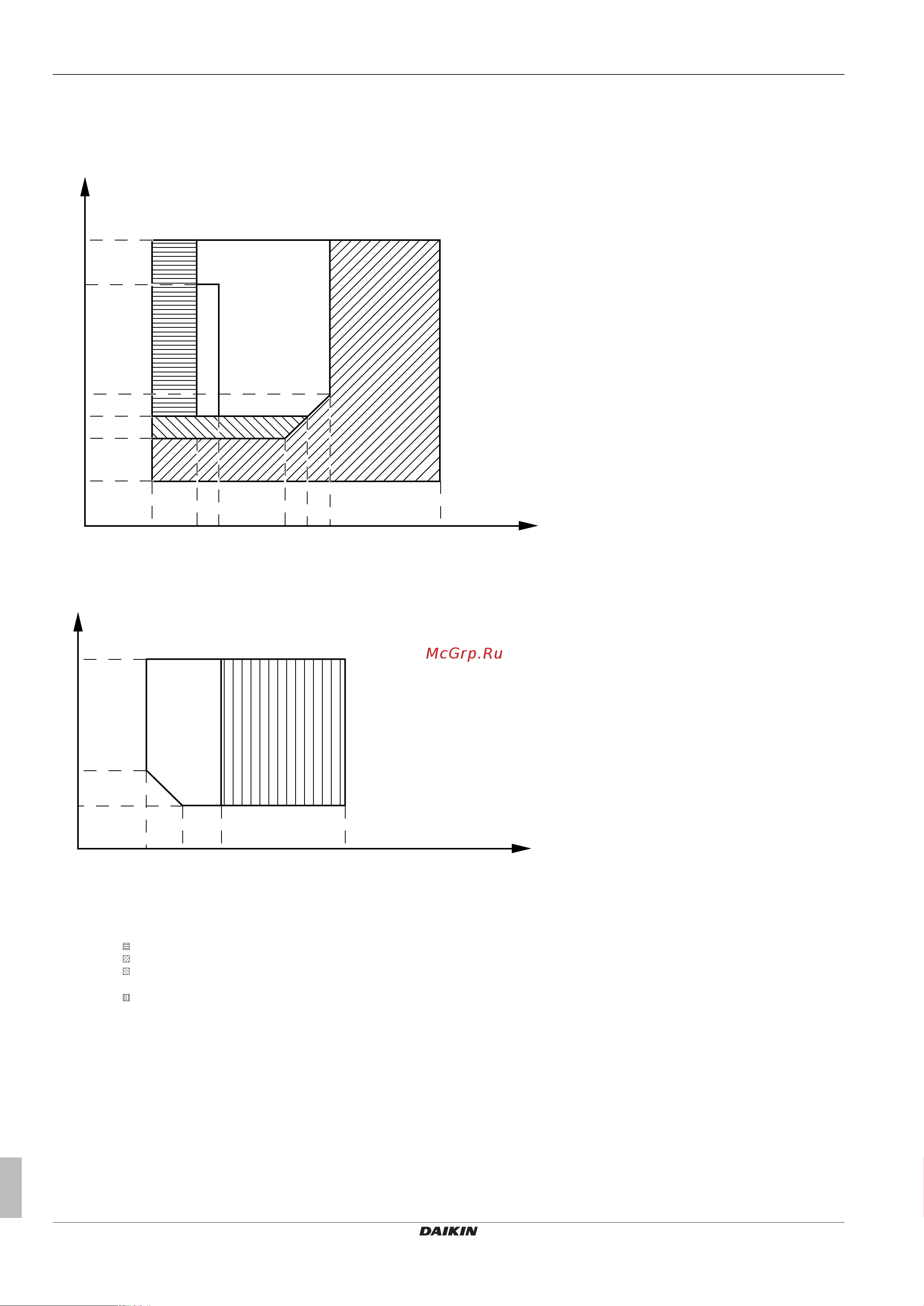

15.8 Operation range
15.8.1 Operation range: Heating and cooling
Heating mode
–25
15 25 30 45 50 55 80
–20
–15
10
25
C
A (°C DB)
B (°C)
4D082876-1B
Cooling mode
43
18
10
5 13 22 50
A (°C DB)
B (°C)
4D082876-1B
A Outdoor temperature
B Leaving condenser water temperature
C No limit
Outdoor unit operation is possible if setpoint ≥25°C.
Boiler operation (maximum condenser leaving water temperature is 55°C)
Operation of outdoor unit is possible, but no guarantee of capacity. (If outdoor temperature <–25°C outdoor unit will stop)(Indoor unit and boiler
operation will continue)
Pull down area
