7 Installation

Installer reference guide

EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +

EHYKOMB33AA

Daikin Altherma hybrid heat pump

4P355634-1A – 2016.02

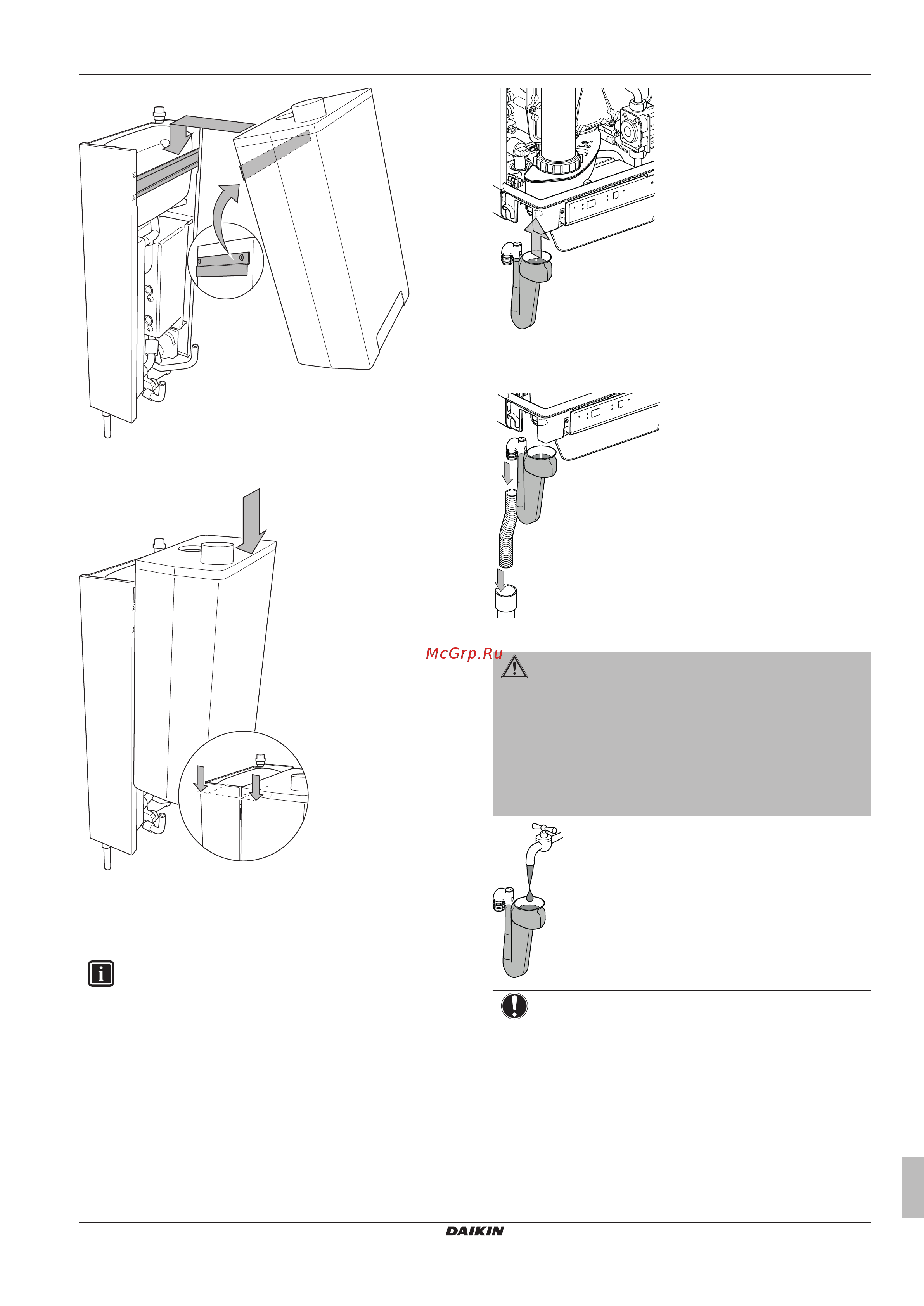

6 Slide the boiler downwards to fix the boiler bracket onto the

indoor unit mounting bracket.

7 Make sure the gas boiler is fixed properly and well aligned with

the indoor unit.

7.5.2 To install the condensate trap

INFORMATION

The boiler is provided with a 25 mm flexible pipe on the

condensate trap.

Prerequisite: The boiler MUST be opened before installing the

condensate trap.

1 Fit the flexible tube (accessory) to the condensate trap outlet.

2 Fill the condensate trap with water.

3 Slide the condensate trap as far as possible upwards onto the

condensate drain connector below the gas boiler.

4 Connect the flexible tube (where applicable with the overflow

pipe from the pressure relief valve) to the drain via an open

connection.

WARNING

▪ ALWAYS fill the condensate trap with water and place

it on the boiler before powering up the boiler. See

illustration below.

▪ NOT placing or filling up the condensate trap may

cause flue gases to come into the installation room and

can lead to dangerous situations!

▪ In order to place the condensate trap, the front cover

MUST be pulled forward or removed entirely.

NOTICE

It is recommended that any external condensate pipe is

insulated and increased to Ø32mm in order to prevent the

condensate from freezing.
