8 Configuration
Installer reference guide
59
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02
# Code Description
[A.3.1.2.1] N/A << continuation
▪ Fixed/scheduled: The desired leaving
water temperature is:
▪ NOT weather-dependent (i.e.,
does NOT depend on the outdoor
ambient temperature)
▪ according a schedule. The
scheduled actions are On or OFF.
Remark: This value can only be
set in leaving water temperature
control.
▪ WD/scheduled: The desired leaving
water temperature is:
▪ weather-dependent (i.e., does
depend on the outdoor ambient
temperature)
▪ according a schedule. The
scheduled actions are On or OFF.
Remark: This value can only be
set in leaving water temperature
control.
# Code Description
[7.7.2.1] [0‑00]
[0‑01]
[0‑02]
[0‑03]

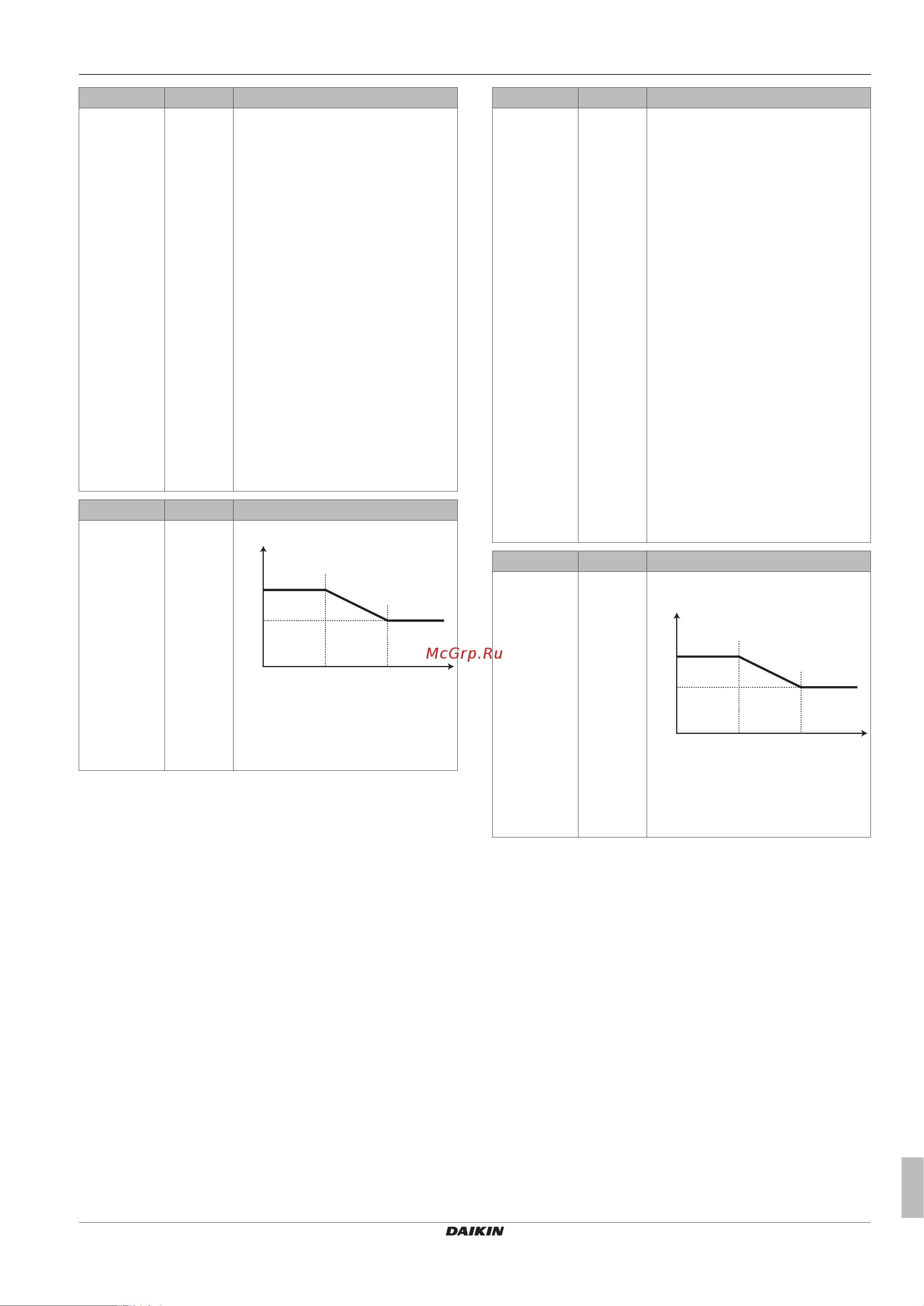

Set weather-dependent heating:
[0-00]
[0-01]
T
a
T
t
[0-03] [0-02]
▪ T
t
: Target leaving water temperature
(additional)
▪ T
a
: Outdoor temperature
continued >>
# Code Description
[7.7.2.1] [0‑00]
[0‑01]
[0‑02]
[0‑03]
<< continuation
▪ [0‑03]: Low outdoor ambient
temperature. –40°C~+5°C (default: –
10°C)
▪ [0‑02]: High outdoor ambient
temperature. 10°C~25°C (default:
15°C)
▪ [0‑01]: Desired leaving water
temperature when the outdoor
temperature equals or drops below
the low ambient temperature.
[9‑05]°C~[9‑06]°C (default: 60°C).
Note: This value should be higher
than [0-00] as for low outdoor
temperatures warmer water is
required.
▪ [0‑00]: Desired leaving water
temperature when the outdoor
temperature equals or rises above
the high ambient temperature.
[9‑05]°C~min(45, [9‑06])°C (default:
35°C).
Note: This value should be lower
than [0-01] as for high outdoor
temperatures less warm water is
required.
# Code Description
[7.7.2.2] [0‑04]
[0‑05]
[0‑06]
[0‑07]
Only for EHYHBX08. Set weather-
dependent cooling:
[0-04]
[0-05]
T
a
T
t
[0-07] [0-06]
▪ T
t
: Target leaving water temperature
(additional)
▪ T
a
: Outdoor temperature
continued >>
