5 About the units and options
Installer reference guide
14
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02
Valve kit (EKVK1A, EKVK2A, EKVK3A)
A set of valves for the easy connection of the field piping. For the
connection of the correct kit, see the combination table.
For installation instructions, see the installation manual of the valve
kit.
Recirculation thermistor (EKTH2)
Kit for recirculating the water on the gas boiler. Only use this kit
when there is no domestic hot water tank installed.
Connection kit for 3rd‑party tank (EKHY3PART)
Use the connection kit to connect a 3rd‑party tank to the system.
The connection kit exists of a thermistor and a 3-way valve.
Connection kit for 3rd‑party tank with built‑in thermostat
(EKHY3PART2)
Kit for the connection of a 3rd‑party tank with built‑in thermostat to
the system. The kit converts a thermostat demand from the tank to a
domestic hot water request for the indoor unit.
5.3.3 Possible options for the gas boiler
Main options
Boiler cover plate (EKHY093467)
Cover plate to protect the gas boiler’s piping and valves.
For installation instructions, see the installation manual of the cover
plate.
Gas conversion kit G25 (EKPS076227)
Kit for the conversion of the gas boiler for use with gas type G25.
Gas conversion kit G31 (EKHY075787)
Kit for the conversion of the gas boiler for use with gas type G31
(propane).
Dual pipe conversion kit (EKHY090707)
Kit for the conversion of a concentric flue gas system to a dual pipe
system.
For installation instructions, see the installation manual of the dual
pipe conversion kit.
80/125 concentric connection kit (EKHY090717)
Kit for the conversion of 60/100 concentric flue gas connections to
80/125 concentric flue gas connections.
For installation instructions, see the installation manual of the
concentric connection kit.
Flue gas flap valve (EKFGF1A)
Non-return flap valve for use in multi-boiler flue gas systems. This
valve can only be used in systems using natural gas (G20, G25),
and CANNOT be used in systems using propane (G31).
Other options

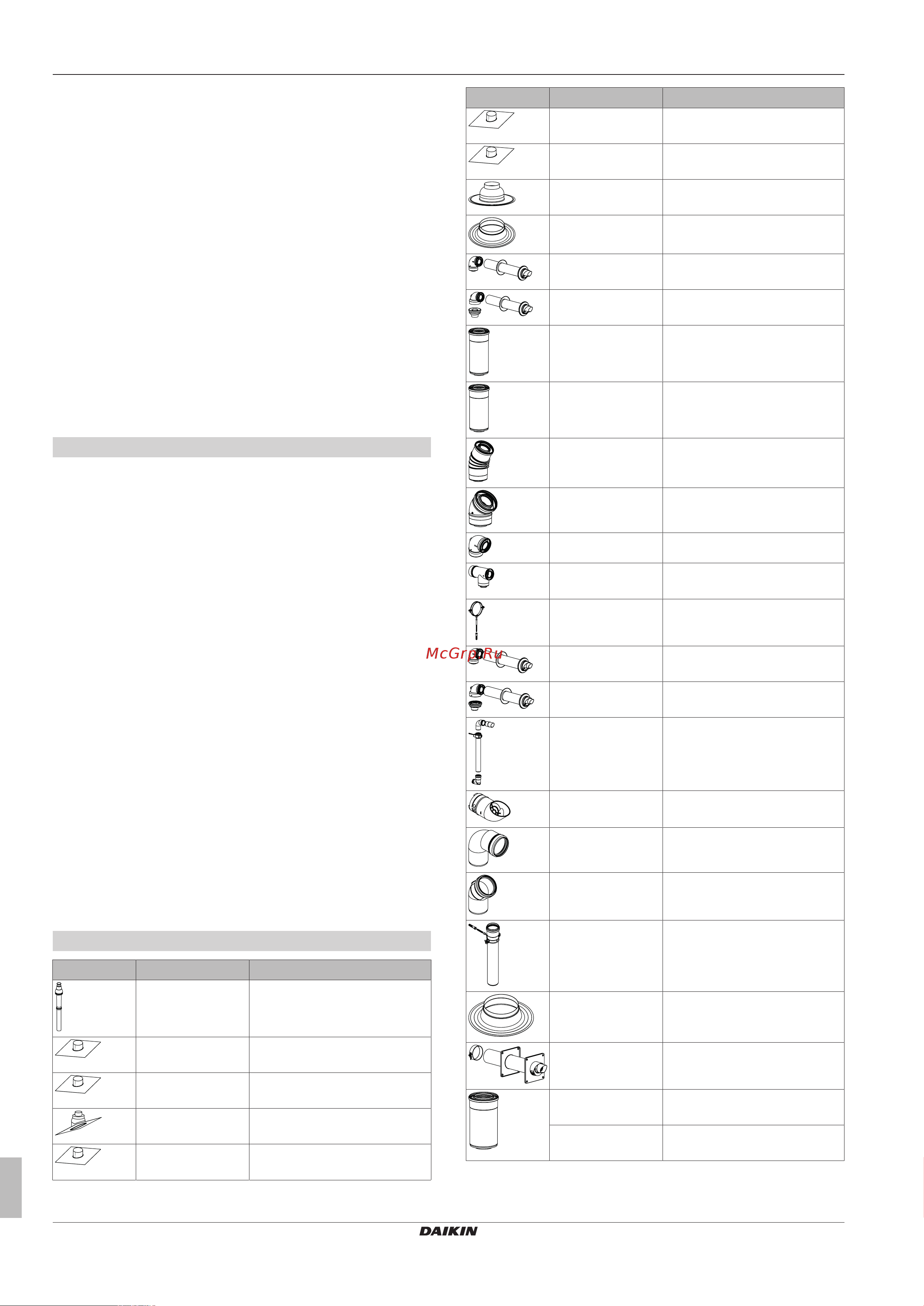

Accessories Part number Description
EKFGP6837 Roof terminal PP/GLV 60/100
AR460
EKFGS0518 Weather slate steep Pb/GLV
60/100 18°-22°
EKFGS0519 Weather slate steep Pb/GLV
60/100 23°-17°
EKFGP7910 Weather slate steep PF 60/100
25°-45°
EKFGS0523 Weather slate steep Pb/GLV
60/100 43°-47°
Accessories Part number Description
EKFGS0524 Weather slate steep Pb/GLV
60/100 48°-52°
EKFGS0525 Weather slate steep Pb/GLV
60/100 53°-57°
EKFGP1296 Weather slate flat Aluminum
60/100 0°-15°
EKFGP6940 Weather slate flat Aluminum
60/100
EKFGP2978 Wall terminal kit PP/GLV
60/100
EKFGP2977 Wall terminal kit low profile PP/
GLV 60/100
EKFGP4651 Extension PP/GLV
60/100×500mm
EKFGP4652 Extension PP/GLV
60/100×1000mm
EKFGP4664 Elbow PP/GLV 60/100 30°
EKFGP4661 Elbow PP/GLV 60/100 45°
EKFGP4660 Elbow PP/GLV 60/100 90°
EKFGP4667 Meas. tee with inspection panel
PP/GLV 60/100
EKFGP4631 Wall bracket Ø100
EKFGP1292 Wall terminal Kit PP/GLV
60/100
EKFGP1293 Wall terminal kit low profile PP/
GLV 60/100
EKFGP1294 Plume management kit 60 (UK
only)
EKFGP1295 Flue deflector 60 (UK only)
EKFGP1284 PMK elbow 60 90 (UK only)
EKFGP1285 PMK elbow 60 45° (2pieces)
(UK only)
EKFGP1286 PMK extension 60 L=1000
includes bracket (UK only)
EKFGW5333 Weather slate flat aluminum
80/125
EKFGW6359 Wall terminal kit PP/GLV
80/125
EKFGP4801 Extension PP/GLV
80/125×500mm
EKFGP4802 Extension PP/GLV
80/125×1000mm
