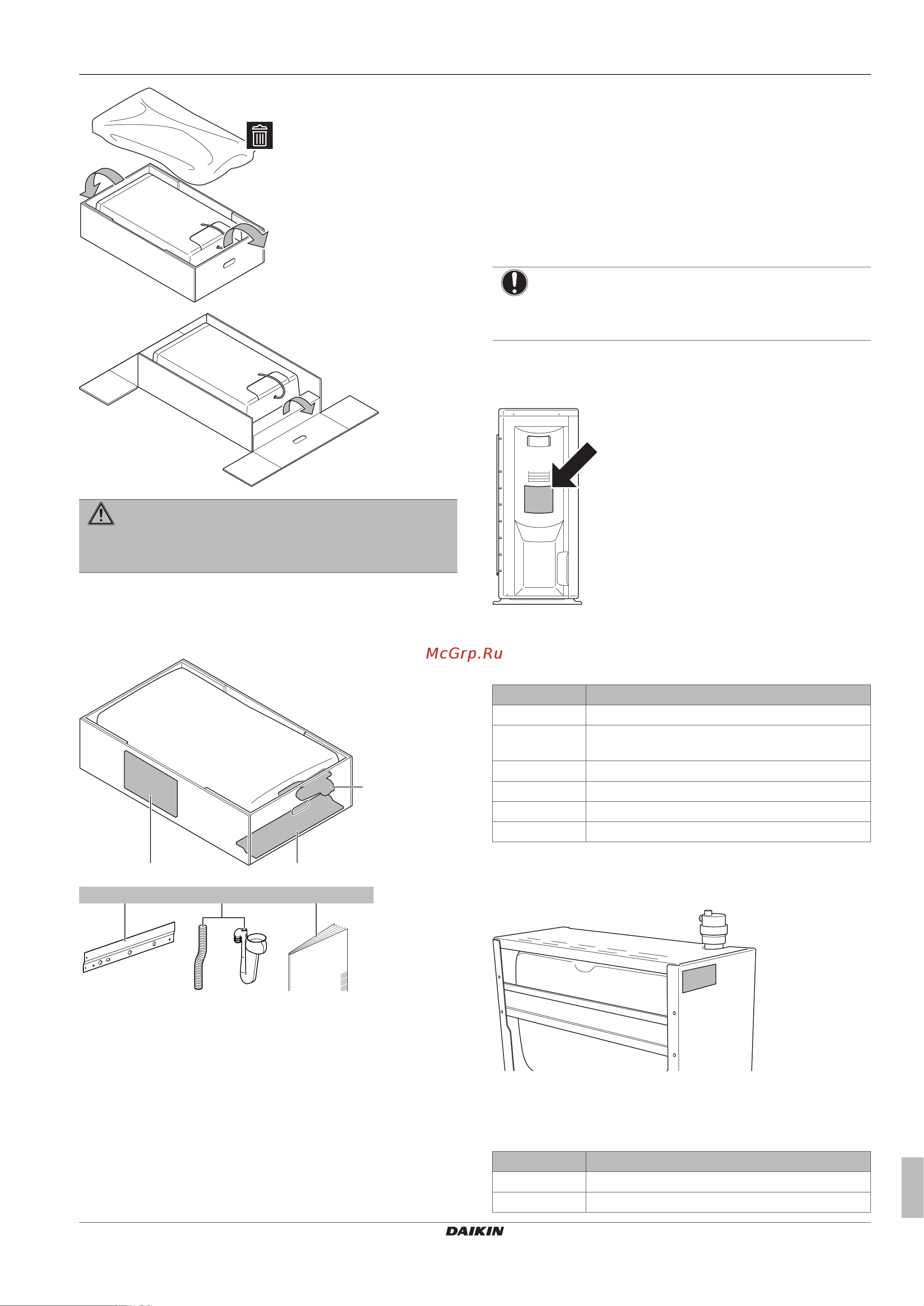

Daikin EHYKOMB33AA2 [11/136] Overview about the units and options
![Daikin EHYKOMB33AA2 [11/136] Overview about the units and options](/views2/1746854/page11/bgb.png)
5 About the units and options
Installer reference guide
11
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02
WARNING
Tear apart and throw away plastic packaging bags so that
nobody, especially children, can play with them. Possible
risk: suffocation.
4.4.2 To remove the accessories from the gas
boiler
1 Remove the accessories.
a
b
c
a b c
a Mounting strip
b Condensate trap
c Installation manual and operation manual
5 About the units and options
5.1 Overview: About the units and
options
This chapter contains information about:
▪ Identifying the outdoor unit
▪ Identifying the indoor unit
▪ Identifying the gas boiler
▪ Combining outdoor and indoor units
▪ Combining the outdoor unit with options
▪ Combining the indoor unit with options
▪ Combining the gas boiler with options
5.2 Identification
NOTICE
When installing or servicing several units at the same time,
make sure NOT to switch the service panels between
different models.
5.2.1 Identification label: Outdoor unit
Location
Model identification
Example: EVLQ05CAV3
Code Explanation
EV European split outdoor pair heat pump
L Low water temperature – ambient zone: −10~
−20°C
Q Refrigerant R410A
05 Capacity class
CA Model series
V3 Power supply
5.2.2 Identification label: Indoor unit
Location
Model identification
Example: EHYHBH05AAV3
Code Description
E European model
HY Hybrid indoor unit
