15 Technical data
Installer reference guide
103
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02

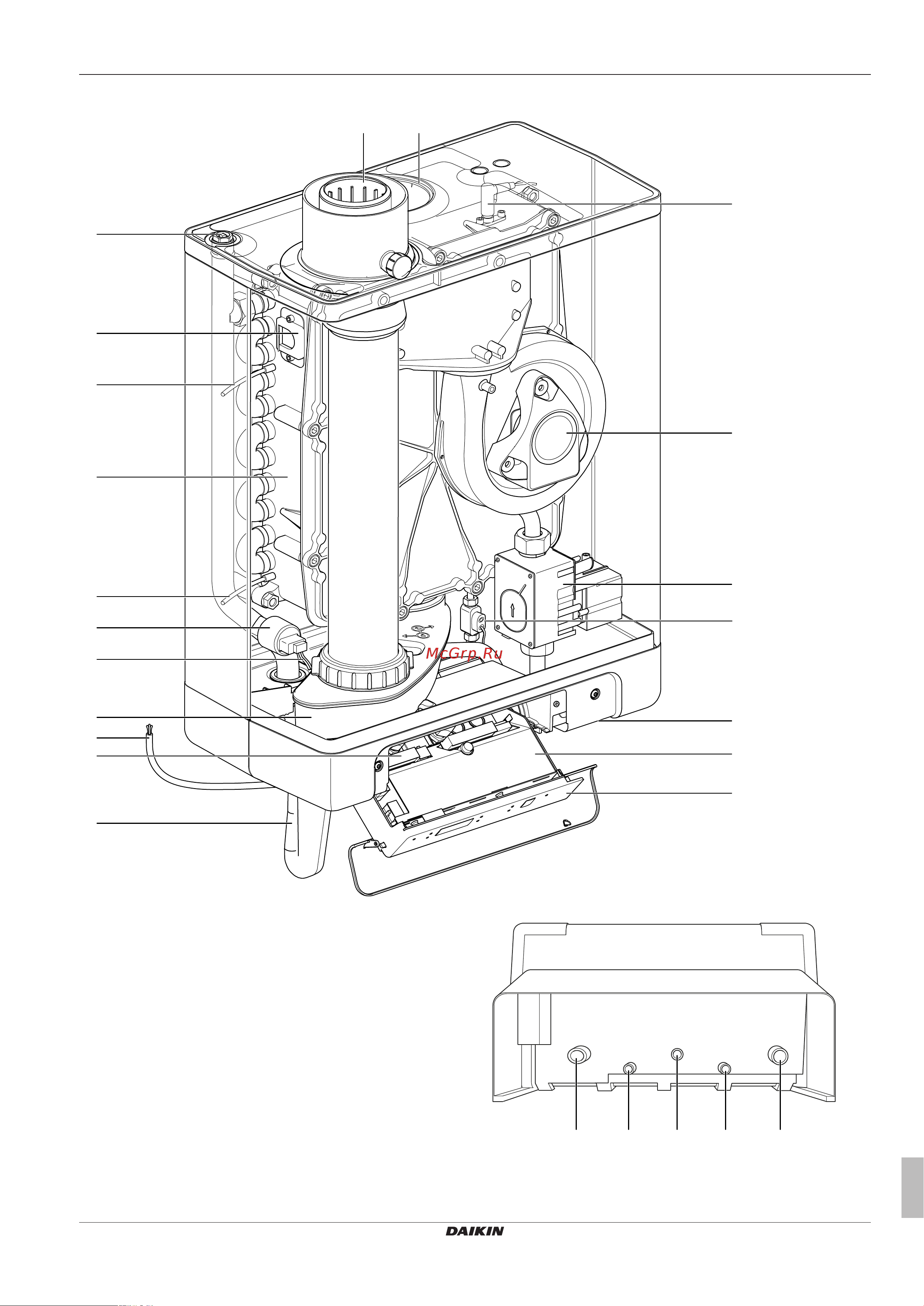

15.4.5 Components: Gas boiler
i
j
c
q
d
o
g
h
n
m
p
s
e
a
f
t
b
r
l k
a Gas valve
b Boiler control panel
c Sensor S1
d Sensor S2
e Fan
f Flow sensor
g Space heating pressure sensor
h Mains lead 230VAC without plug (stripped)
i Manual air bleed
j Sight glass
k Air supply cap
l Flue pipe adapter (use ONLY in combination with the
accompanying elbow in flue sets)
m Connection block/terminal strip X4
n Condensate drain pan
o Hot water sensor S3
p Condensate S3
q Heat exchanger
r Operating panel and read-out
s Ionisation/ignition electrode
t Position of data plate
Bottom view
a b c d e
a Space heating outlet
b Domestic hot water outlet
c Gas inlet
d Domestic hot water inlet
e Space heating inlet
