15 Technical data
Installer reference guide
98
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02

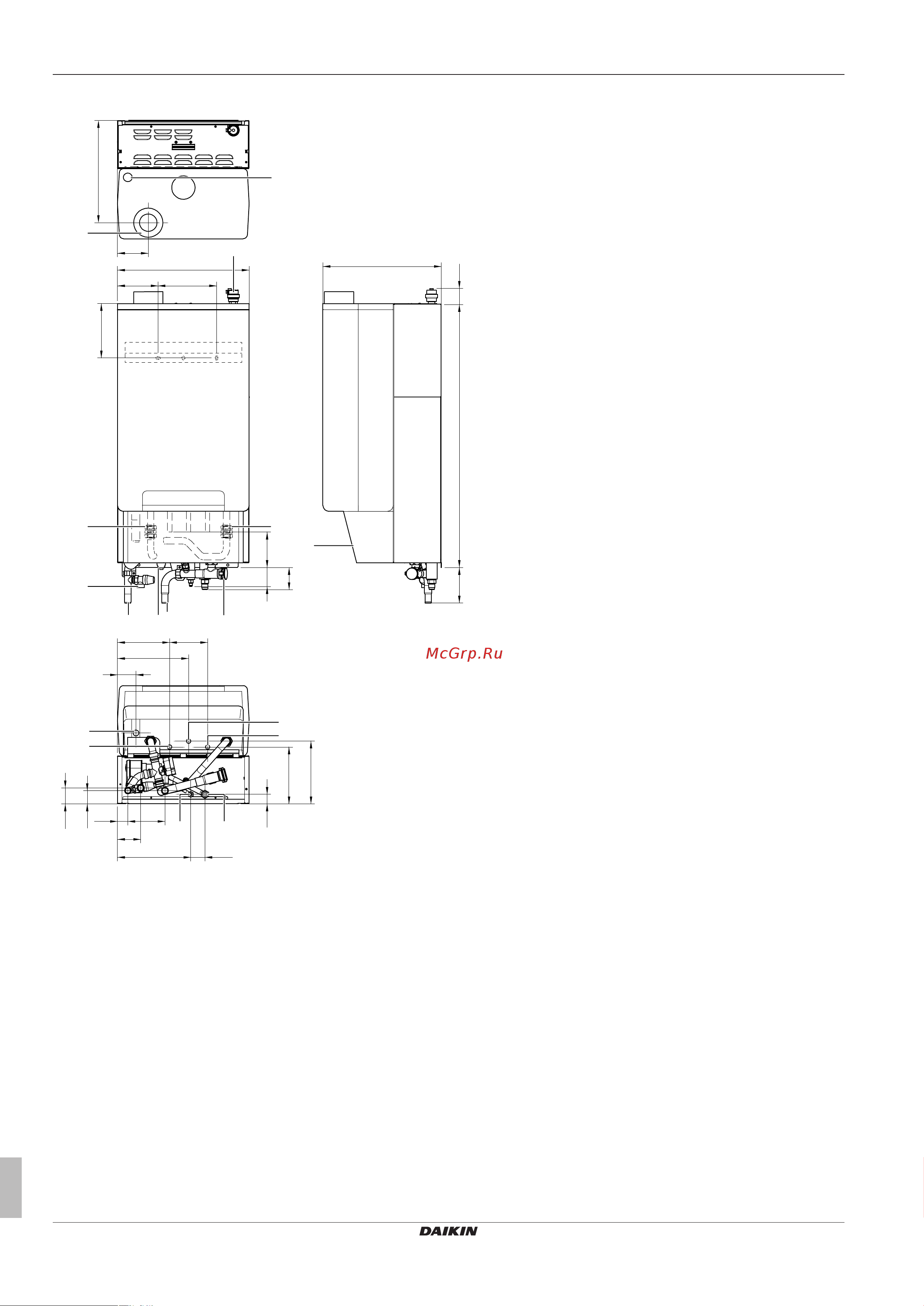

15.2.2 Dimensions and service space: Indoor unit
k
b
130
350
105
3D082233-1A
65
76
121
186
139 200
450
55121
405
63
243
178
195
215
33
48251
79
12735
45
55
g
c
q
f
e
d
o
m
n
p
o
j
h
l
i
a
a Gas pipe connection Ø15.9mm flare
b Liquid pipe connection Ø6.35mm flare
c Safety valve (pressure)
d Air purge (automatic)
e Water filter
f Water inlet connection (Ø22mm)
g Water outlet connection (Ø22mm)
h Domestic hot water inlet connection (Ø15mm)
i Domestic hot water outlet connection (Ø15mm)
j Gas connection (1/2")
k Wiring intake area heat pump module
l Condensate drain (Ø25mm flexible)
m Flue pipe/air supply (Ø60/100mm concentric)
n Air purge boiler (manual)
o Copper clamp connection 22mm (accessory)
p Boiler cover (option)
q Screw connection G1/4" (only for EHYHBH05+EHYHBH08)
Note: Typical field installation is according to local and national regulations.
