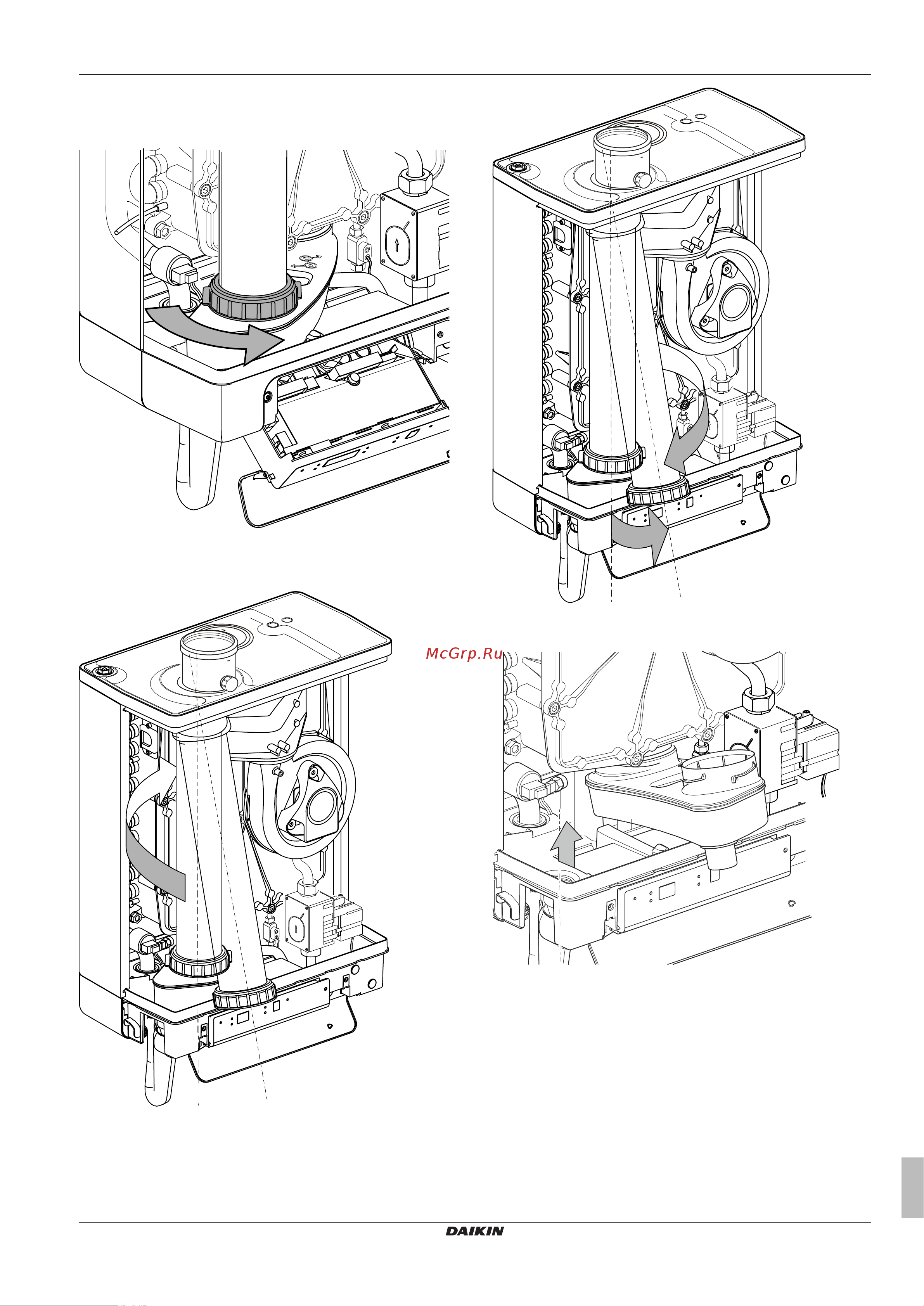

5 Wait until the appliance has cooled down.

6 Unscrew the coupling nut at the base of the flue pipe by turning

counterclockwise.

7 Slide the flue pipe upwards by turning it clockwise until the

bottom of the pipe is above the condensate drain pan

connection.

8 Pull the bottom of the pipe forwards and remove the pipe

downwards by turning the pipe alternately clockwise and

counterclockwise.

9 Lift the condensate drain pan on the left-hand side from the

connection to the condensate trap.

10 Turn it to the right with the condensate trap connection over the

edge of the base tray.
