15 Technical data

Installer reference guide

EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +

EHYKOMB33AA

Daikin Altherma hybrid heat pump

4P355634-1A – 2016.02

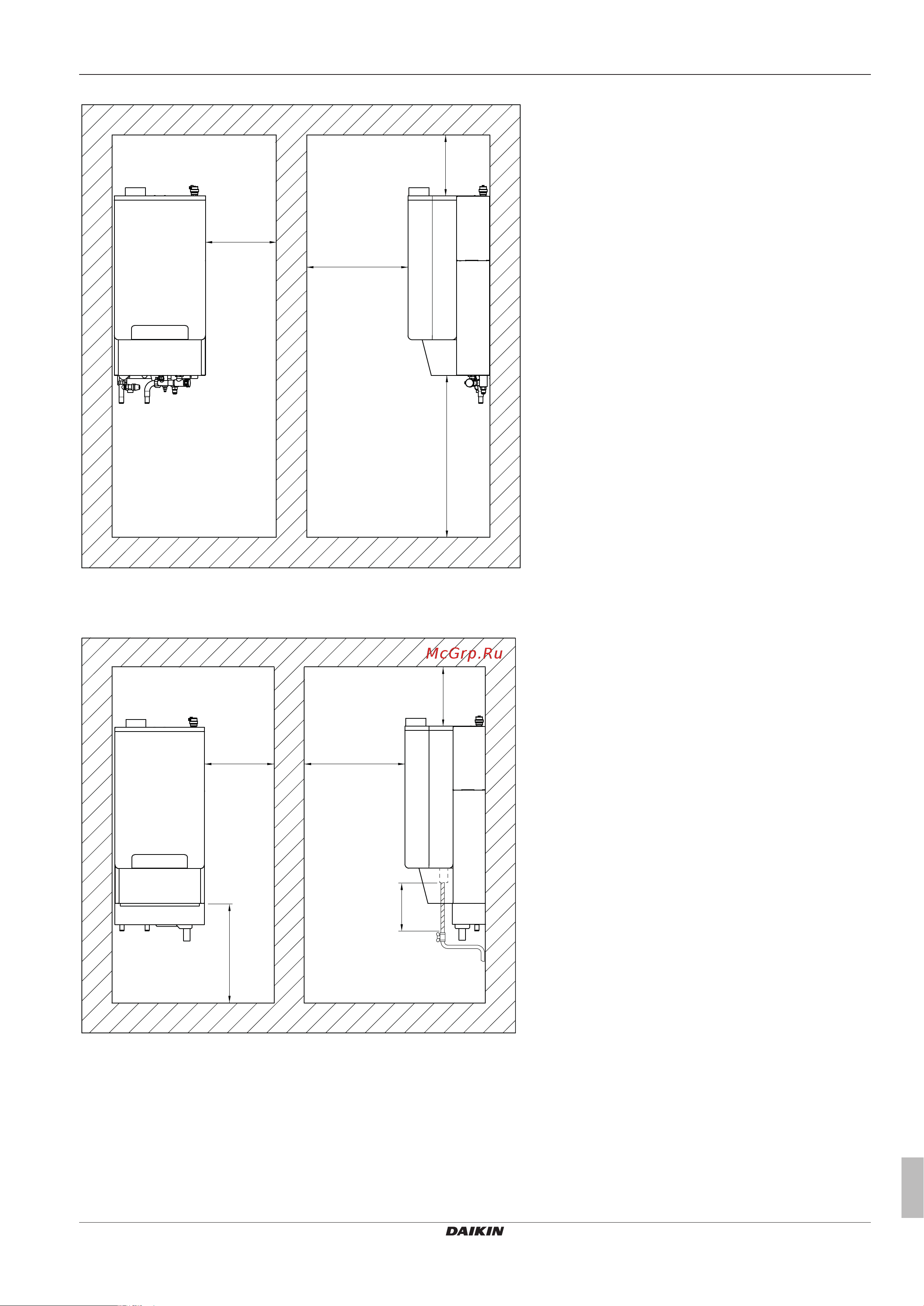

Only for EHYHBH05 + EHYHBH08

350 mm

4D084025-1C

500 mm

300 mm>500 mm*

* In combination with a mounting and/or valve kit, 800mm is required.

Only for EHYHBX08

350 mm 500 mm

4D085926-1B

300 mm

>500 mm**

240 mm*

* Removable piping to ensure installation and service of drain pan kit.

** In combination with a mounting and/or valve kit, 800mm is required.
