Chapter 4. Browser Operation

EDID Mode

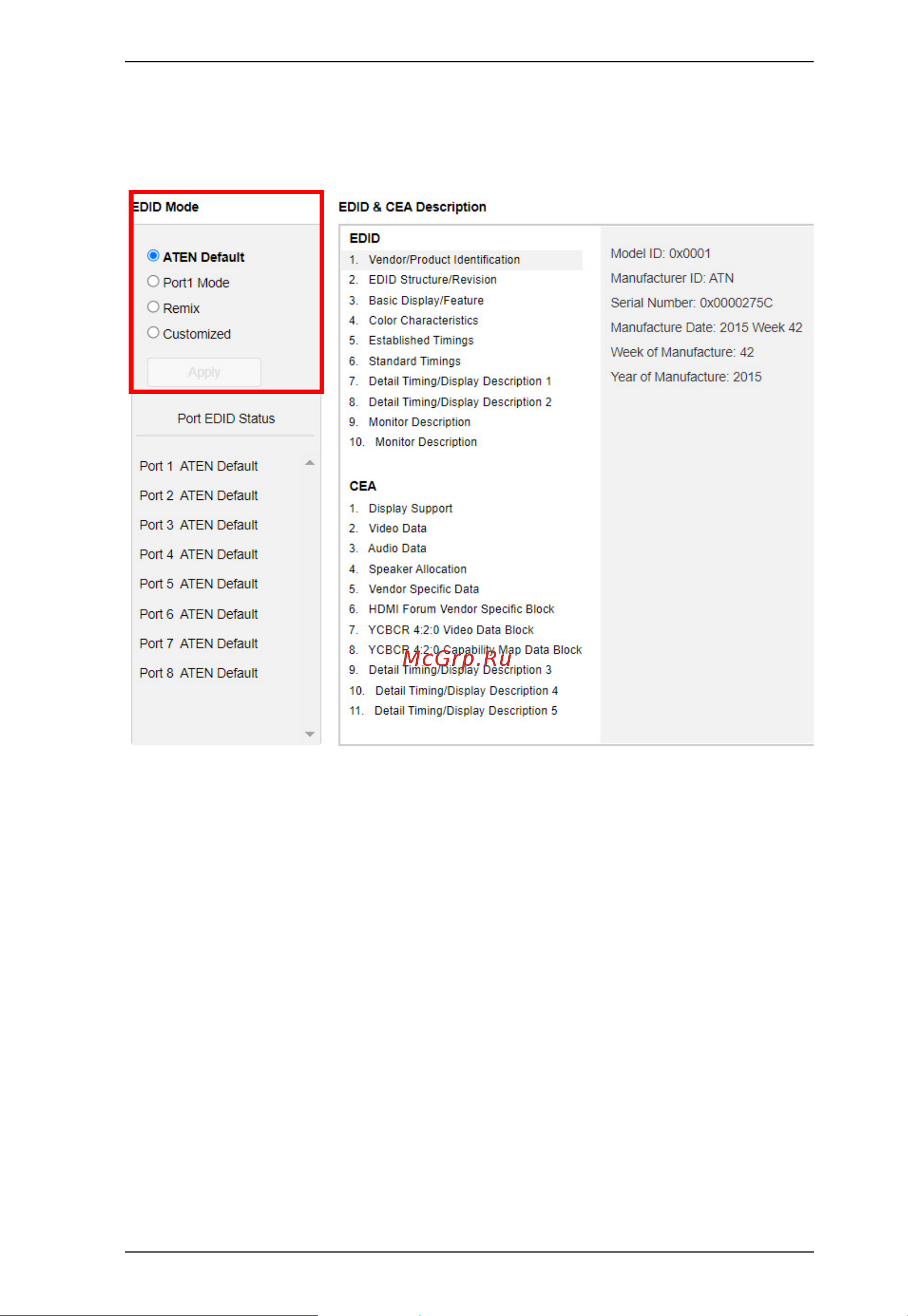

In the left panel of the page, users can select a pre-configured EDID Mode

using the EDID Mode radio buttons.

Select the EDID Mode to use and click Apply. The VM5404HA / VM5808HA

uses the settings configured for that EDID mode.

Options are:

 ATEN Default: All ports' EDID is the same as the hardware default

EDID.

 Port 1 Mode: All ports' EDID is the same as Port1's EDID.

 Remix: All ports' EDID uses the best display resolution.

 Customized: See Customized Mode, see page 61.
