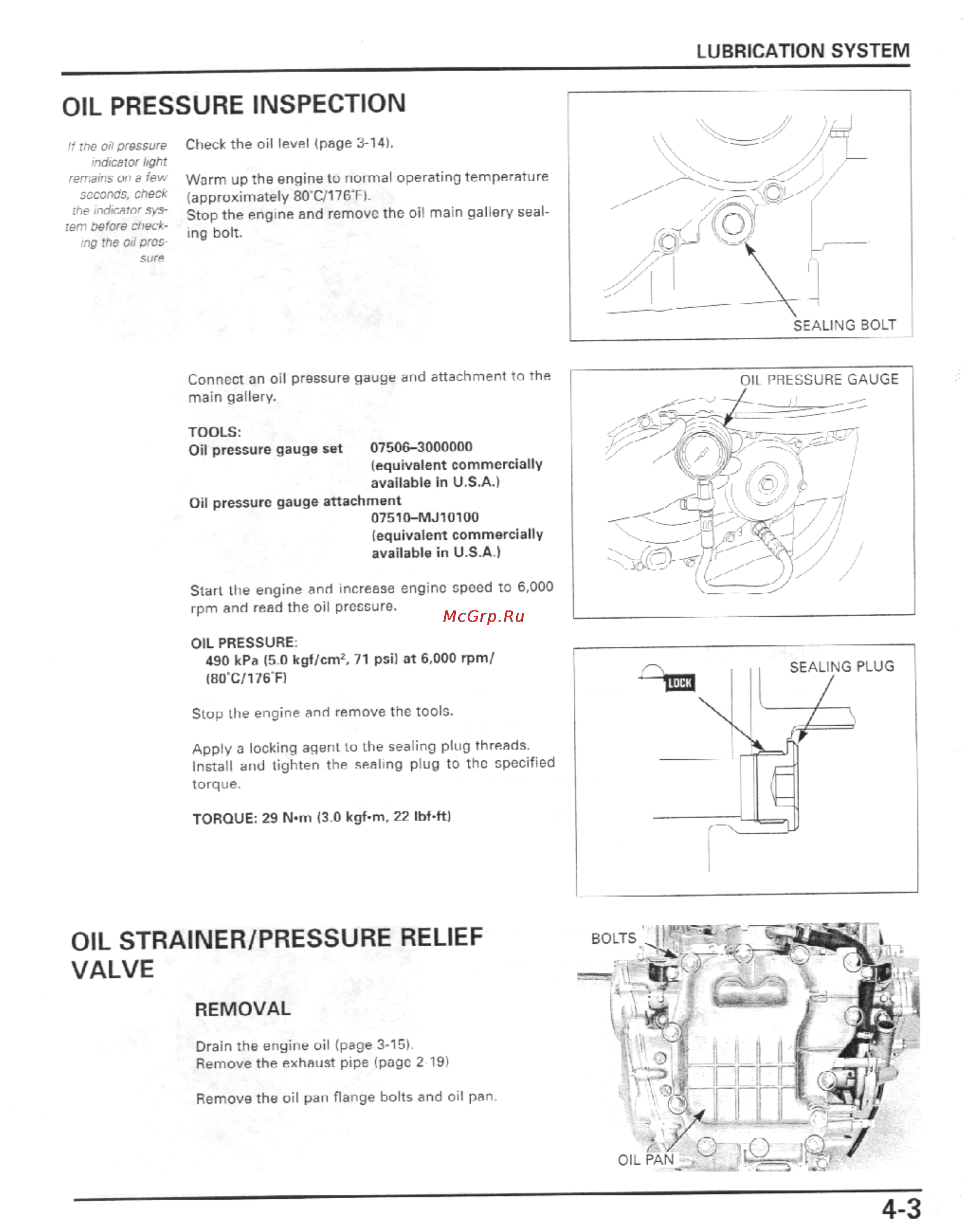

LUBRICATION SYSTEM OIL PRESSURE INSPECTION the oil pressure ndicator light remains on a few seconds check the indicator sys tem before check ing the oil pres sure Check the oil level page 3 14 Warm up the engine to normal operating temperature approximately 80 C 176T Stop the engine and remove the oil main gallery seal ing bolt Connect an oil pressure gauge and attachment to the main gallery TOOLS Oil pressure gauge set 07506 3000000 equivalent commercially available in U S A Oil pressure gauge attachment 07510 MJ10100 equivalent commercially available in U S A Start the engine and increase engine speed to 6 000 rpm and read the oil pressure OIL PRESSURE 490 kPa 5 0 kgf cm2 71 psi at 6 000 rpm 8O C 176 F Stop the engine and remove the tools Apply a locking agent to the sealing plug threads Install and tighten the sealing plug to the specified torque TORQUE 29 N m 3 0 kgf m 22 Ibf ft OIL STRAINER PRESSURE RELIEF VALVE REMOVAL Drain the engine oil page 3 15 Remove the exhaust pipe page 2 19 Remove the oil pan flange bolts and oil pan 4 3
