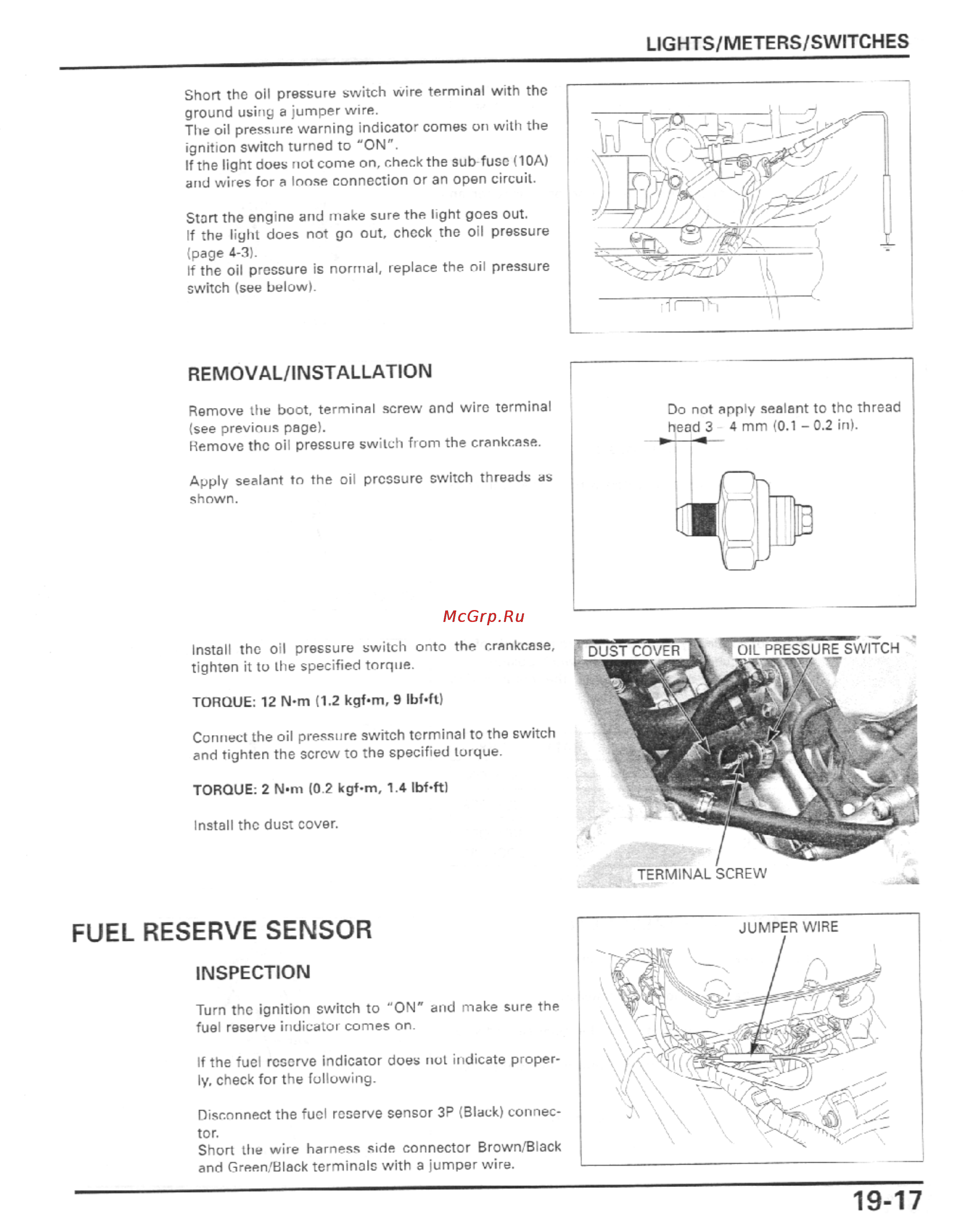

LIGHTS METERS SWITCHES Short the oil pressure switch wire terminal with the ground using a jumper wire The oil pressure warning indicator comes on with the ignition switch turned to ON If the light does not come on check the sub fuse 10A and wires for a loose connection or an open circuit Start the engine and make sure the light goes out If the light does not go out check the oil pressure page 4 3 If the oil pressure is normal replace the oil pressure switch see below REMOVAL INSTALLATION Remove the boot terminal screw and wire terminal see previous page Remove the oil pressure switch from the crankcase Do not apply sealant to the thread head 3 4 mm 0 1 0 2 in Apply sealant to the oil pressure switch threads as shown Install the oil pressure switch onto the crankcase tighten it to the specified torque TORQUE 12 N m 1 2 kgf m 9 lbf ft Connect the oil pressure switch terminal to the switch and tighten the screw to the specified torque TORQUE 2 N m 0 2 kgf m 1 4 lbf ft Install the dust cover FUEL RESERVE SENSOR JUMPER WIRE INSPECTION Turn the ignition switch to ON and make sure the fuel reserve indicator comes on If the fuel reserve indicator does nut indicate proper ly check for the following Disconnect the fuel reserve sensor 3P Black connec tor Short the wire harness side connector Brown Black and Green Black terminals with a jumper wire 19 17
