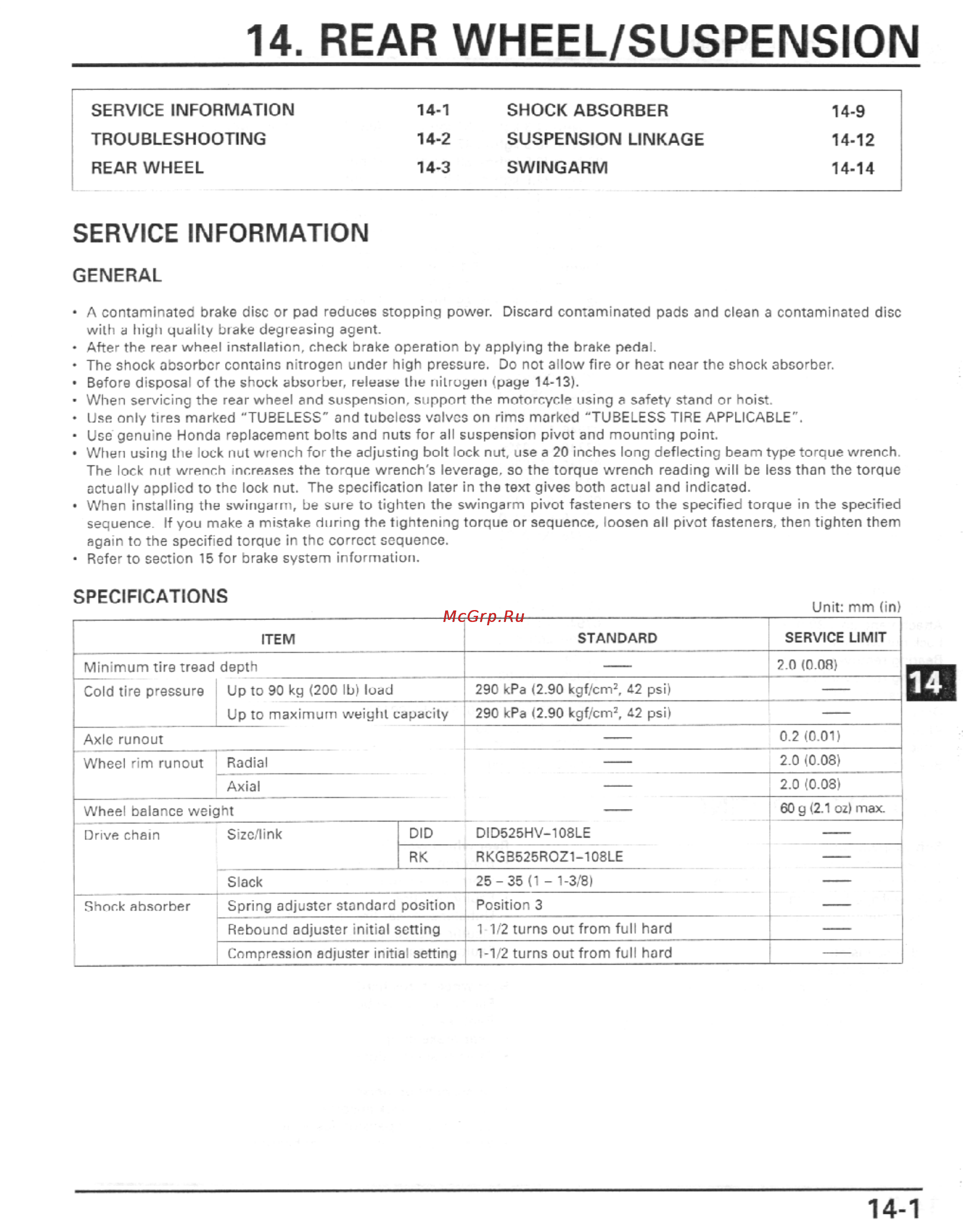

14 REAR WHEEL SUSPENSION SERVICE INFORMATION 14 1 SHOCK ABSORBER 14 9 TROUBLESHOOTING 14 2 SUSPENSION LINKAGE 14 12 REAR WHEEL 14 3 SWINGARM 14 14 SERVICE INFORMATION GENERAL A contaminated brake disc or pad reduces stopping power Discard contaminated pads and clean a contaminated disc with a high quality brake degreasing agent After the rear wheel installation check brake operation by applying the brake pedai The shock absorber contains nitrogen under high pressure Do not allow fire or heat near the shock absorber Before disposal of the shock absorber release the nitrogen page 14 13 When servicing the rear wheel and suspension support the motorcycle using a safety stand or hoist Use only tires marked TUBELESS and tubeless valves on rims marked TUBELESS TIRE APPLICABLE Use genuine Honda replacement bolts and nuts for all suspension pivot and mounting point When using the lock nut wrench for the adjusting bolt lock nut use a 20 inches long deflecting beam type torque wrench The lock nut wrench increases the torque wrench s leverage so the torque wrench reading will be less than the torque actually applied to the lock nut The specification later in the text gives both actual and indicated When installing the swingarm be sure to tighten the swingarm pivot fasteners to the specified torque in the specified sequence If you make a mistake during the tightening torque or sequence loosen all pivot fasteners then tighten them again to the specified torque in the correct sequence Refer to section 15 for brake system information SPECIFICATIONS Unit mm in STANDARD ITEM Minimum tire tread depth Cold tire pressure Up to maximum weight capacity 290 kPa 2 90 kgf cm2 Radial 2 0 0 08 Axial 2 0 0 08 60 g 2 1 oz max Slack 25 35 1 1 3 8 Spring adjuster standard position Position 3 Rebound adjuster initial setting 1 1 2 turns out from full hard Illi Shock absorber Compression adjuster initial setting 1 1 2 turns out from full hard Sizc link DID DID525HV 108LE RK RKGB525ROZ1 108LE 14 0 2 0 01 Wheel balance weight Drive chain 42 psi Axle runout Wheel rim runout 2 0 0 0R 290 kPa 2 90 kgf cm2 42 psi Up to 90 kg 200 lb load SERVICE LIMIT 14 1
