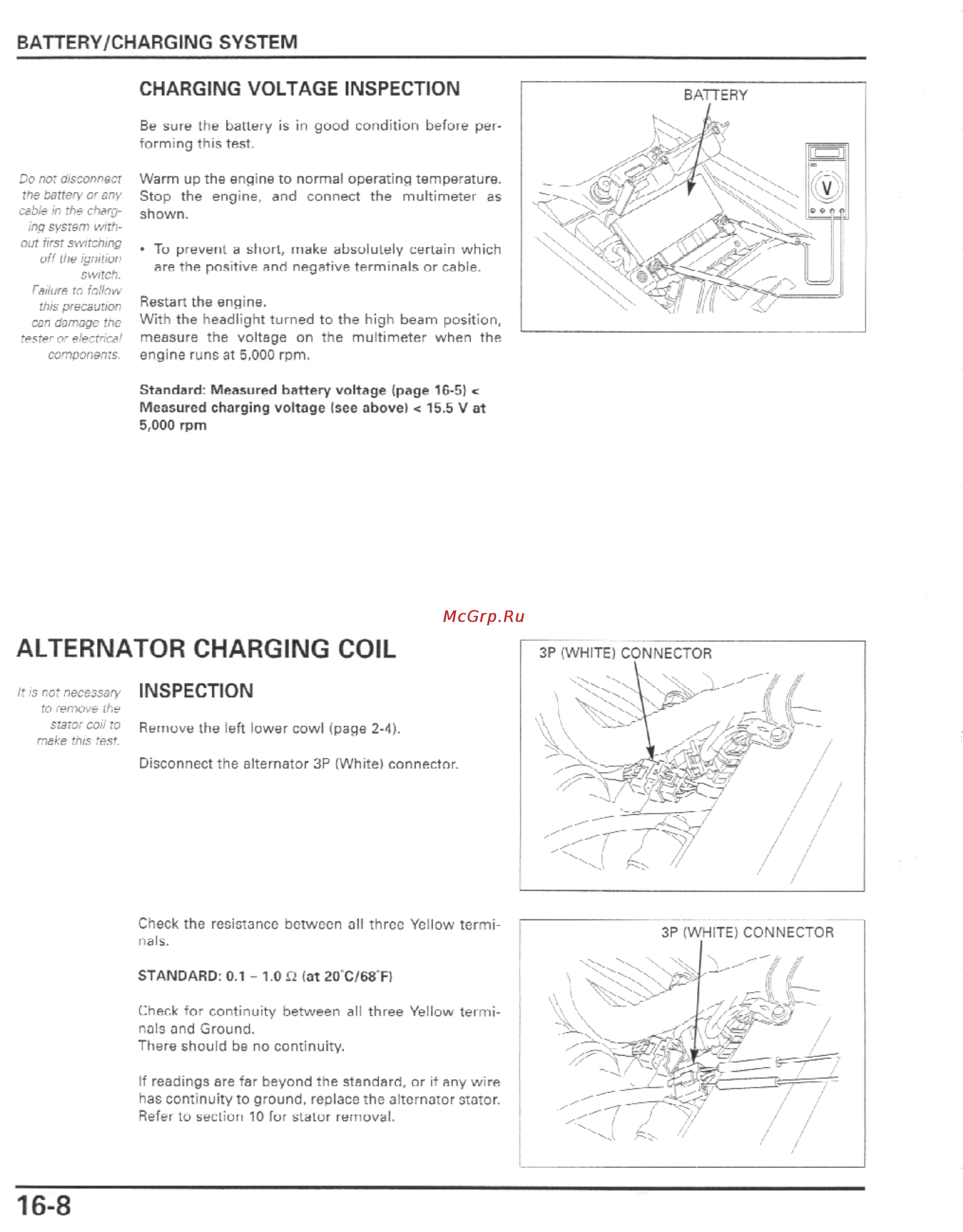

BATTERY CHARGING SYSTEM CHARGING VOLTAGE INSPECTION BATTERY Be sure the battery is in good condition before per forming this test Do no disconnect the battery or any cable in the charg ing system with out first switching off the ignition switch railure to follow this precaution can damage the tester or electrical components Warm up the engine to normal operating temperature Stop the engine and connect the multimeter as shown To prevent a short make absolutely certain which are the positive and negative terminals or cable Restart the engine With the headlight turned to the high beam position measure the voltage on the multimeter when the engine runs at 5 000 rpm Standard Measured battery voltage page 16 5 Measured charging voltage see above 15 5 V at 5 000 rpm ALTERNATOR CHARGING COIL 3P WHITE CONNECTOR It is not necessary INSPECTION to remove the stator coii to Remove the left lower cowl page 2 4 make this test Disconnect the alternator 3P White connector Check the resistance between all three Yellow termi nals STANDARD 0 1 1 0 Q at 20 C 68 F Check for continuity between all three Yellow termi nals and Ground There should be no continuity If readings are far beyond the standard or it any wire has continuity to ground replace the alternator stator Refer to section 10 for stator removal 16 8 3P WHITE CONNECTOR
