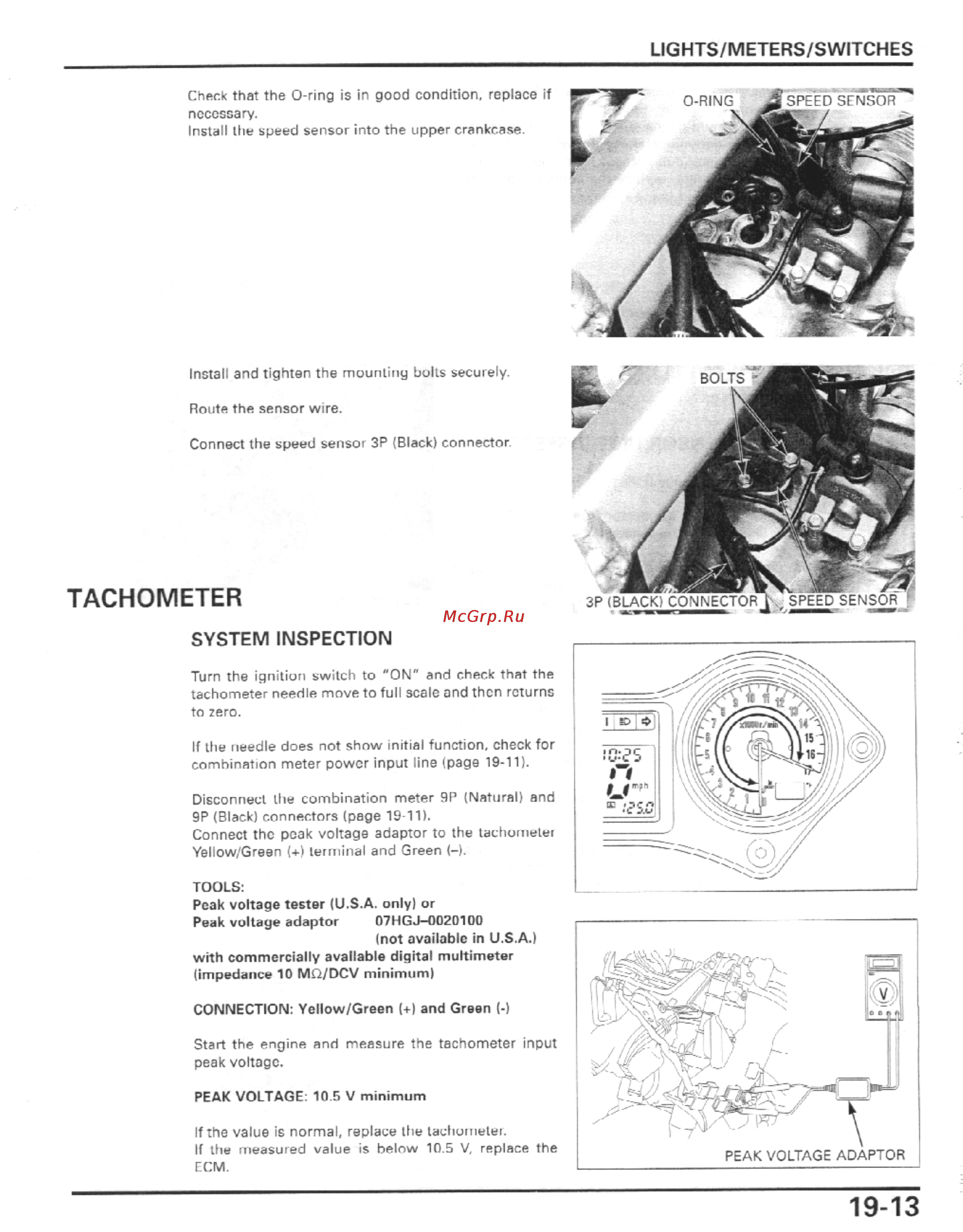

LIGHTS METERS SWITCHES Check that the O ring is in good condition replace if necessary Install the speed sensor into the upper crankcase O RING SPEED SENSOR Install and tighten the mounting bulls securely Route the sensor wire Connect the speed sensor 3P Black connector TACHOMETER SYSTEM INSPECTION Turn the ignition switch to ON and check that the tachometer needle move to full scale and then returns to zero If the needle does not show initial function check for combination meter power input line page 19 11 Disconnect the combination meter 9P Natural and 9P Black connectors page 19 11 Connect the peak voltage adaptor to the tachometer Yellow Green terminal and Green TOOLS Peak voltage tester U S A only or Peak voltage adaptor 07HGJ O02010D not available in U S A with commercially available digital multimeter impedance 10 MQ DCV minimum CONNECTION Yellow Green and Green Start the engine and measure the tachometer input peak voltage PEAK VOLTAGE 10 5 V minimum If the value is normal replace the tachometer If the measured value is below 10 5 V replace the ECM 19 13
