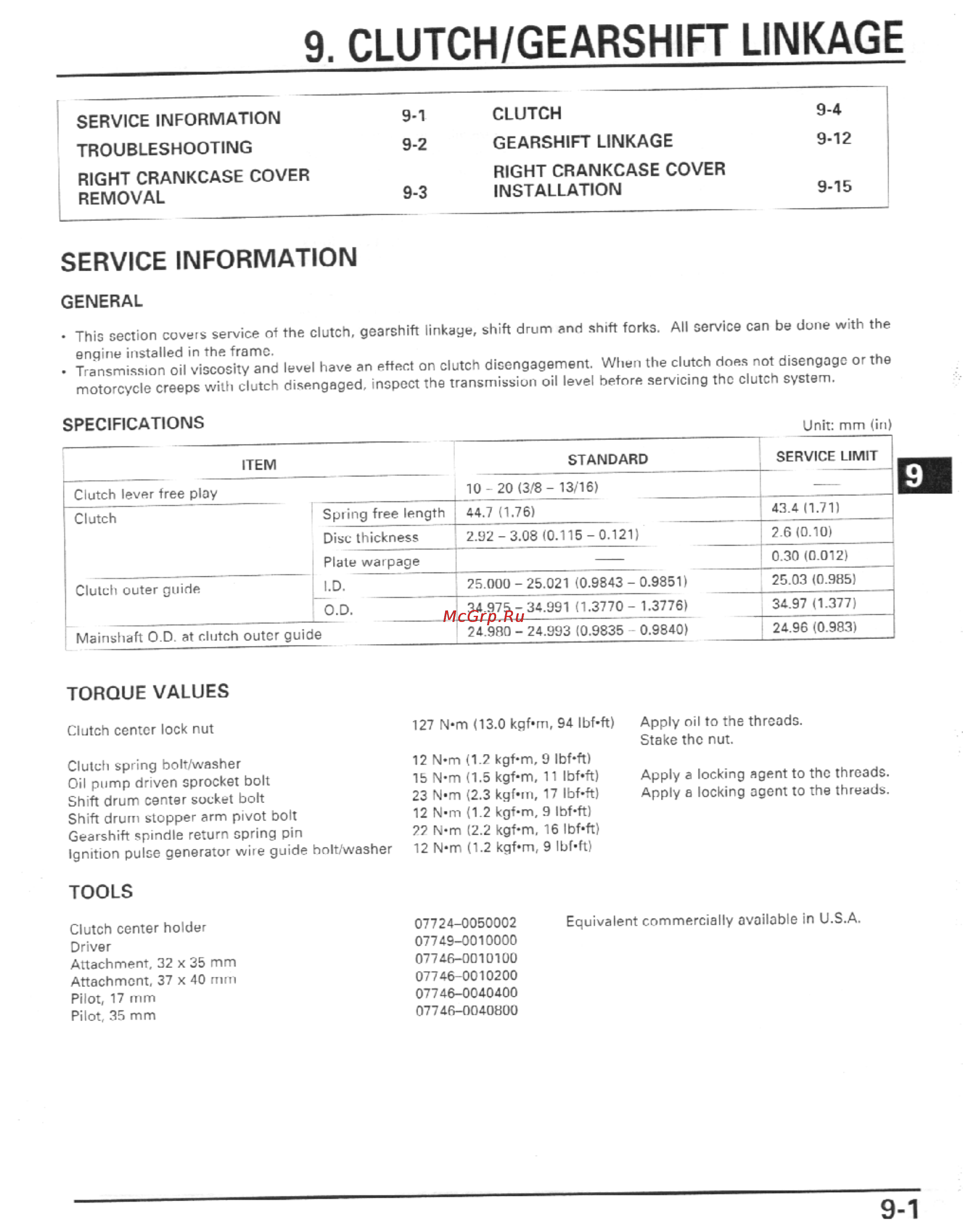

Honda CBR600F4I (2001-2003) [274/492] Clutch gearshift linkage

Содержание

Похожие устройства

9 CLUTCH GEARSHIFT LINKAGE SERVICE INFORMATION 9 1 CLUTCH 9 4 TROUBLESHOOTING 9 2 GEARSHIFT LINKAGE 9 12 RIGHT CRANKCASE COVER INSTALLATION 9 15 RIGHT CRANKCASE COVER REMOVAL 9 3 SERVICE INFORMATION GENERAL This section covers service of the clutch gearshift linkage shift drum and shift forks All service can be dune with the Emission oil viscoshyTnd level have an effect on clutch disengagement When the clutch does not disengage or the motorcycle creeps with clutch disengaged inspect the transmission oil level before servicing the clutch system SPECIFICATIONS Unit mm in ITEM 10 20 3 8 13 16 Clutch lever free play________ Clutch _____________ Spring free length 44 7 1 76 43 4 1 71 Disc thickness 2 92 3 08 0 115 0 121 2 6 0 10 0 30 0 012 Plate war page Clutch outer guide SERVICE LIMIT STANDARD I D 25 000 25 021 0 9843 0 9851 O D 34 975 34 991 1 3770 1 3776 Mainshaft O D at clutch outer guide ______ 24 9R0 24 993 0 9835 0 9840 __________ 25 03 0 985 _ _______ ________ _ 34 97 1 377 24 96 0 983 TORQUE VALUES Clutch center lock nut 127 N m 13 0 kgf m 94 lbf ft Clutch spring bolt washer Oil pump driven sprocket bolt Shift drum center socket bolt Shift drum stopper arm pivot bolt Gearshift spindle return spring pin Ignition pulse generator wire guide bolt washer 12 N m 1 2 kgf m 9 lbf ft 15 N m 1 5 kgf m 11 lbf ft 23 N m 2 3 kgf m 17 lbf ft 12 N m 1 2 kgf m 9 lbf ft 22 N m 2 2 kgf m 16 lbf ft 12 N m 1 2 kgf m 9 lbf ft Apply oil to the threads Stake the nut Apply a locking agent to the threads Apply a locking agent to the threads TOOLS Clutch center holder Driver Attachment 32 x 35 mm Attachment 37 x 40 rum Pilot 17 mm Pilot 35 mm 07724 0050002 07749 0010000 07746 0010100 07746 0010200 07746 0040400 07746 0040800 Equivalent commercially available in U S A 9 1
