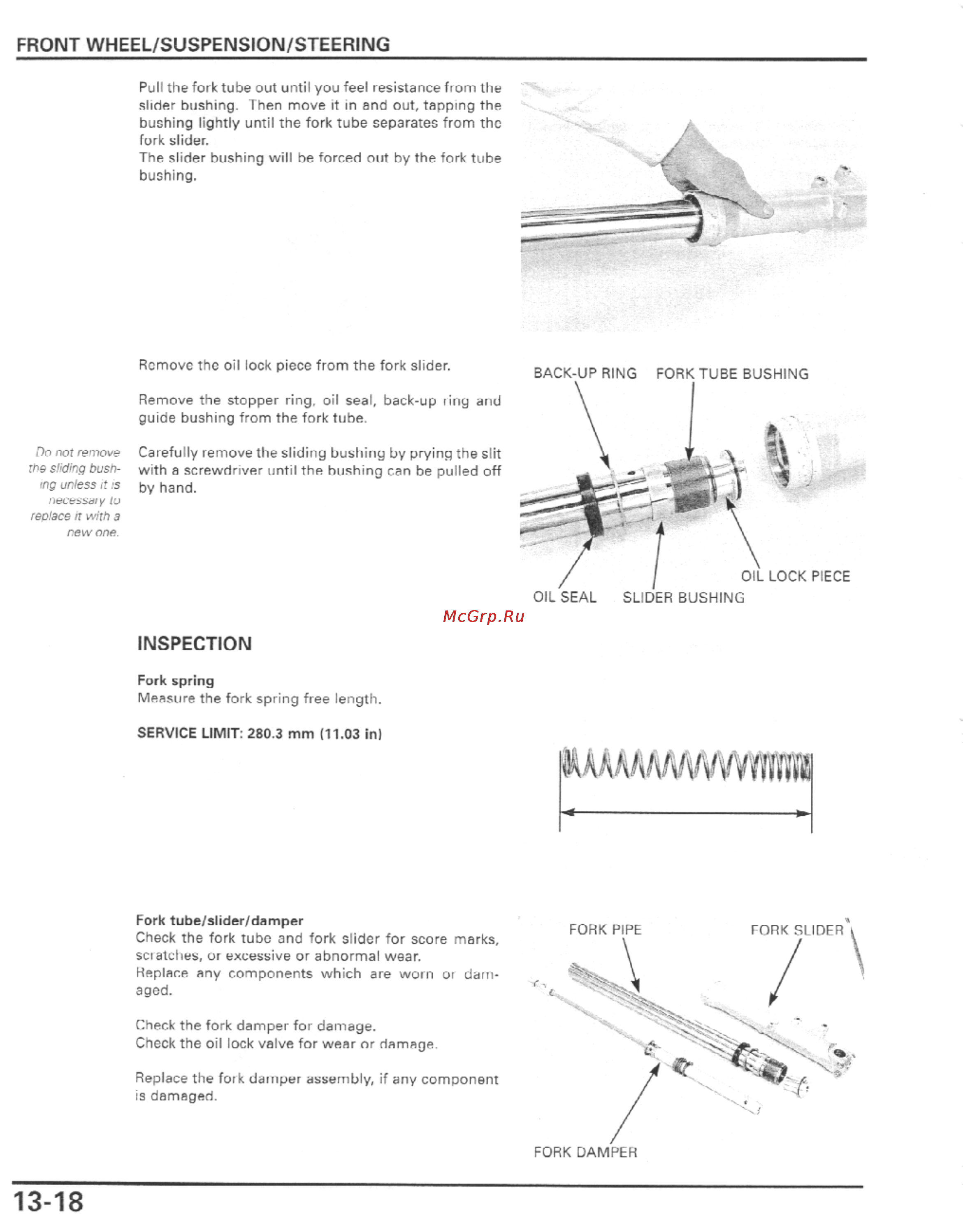

FRONT WHEEL SUSPENSION STEERING Pull the fork tube out until you feel resistance from the slider bushing Then move it in and out tapping the bushing lightly until the fork tube separates from the fork slider The slider bushing will be forced out by the fork tube bushing Remove the oil lock piece from the fork slider BACK UP RING FORK TUBE BUSHING Remove the stopper ring oil seal back up ring and guide bushing from the fork tube Do not remove rhe sliding bush ing unless it is necessaiy Zu reolace it with a new one Carefully remove the sliding bushing by prying the slit with a screwdriver until the bushing can be pulled off by hand OIL SEAL SLIDER BUSHING INSPECTION Fork spring Measure the fork spring free length SERVICE LIMIT 280 3 mm 11 03 in Fork tube slider damper Check the fork tube and fork slider for score marks scratches or excessive or abnormal wear Replace any components which are worn or dam aged Check the fork damper for damage Check the oil lock valve for wear or damage Replace the fork damper assembly if any component is damaged 13 18
