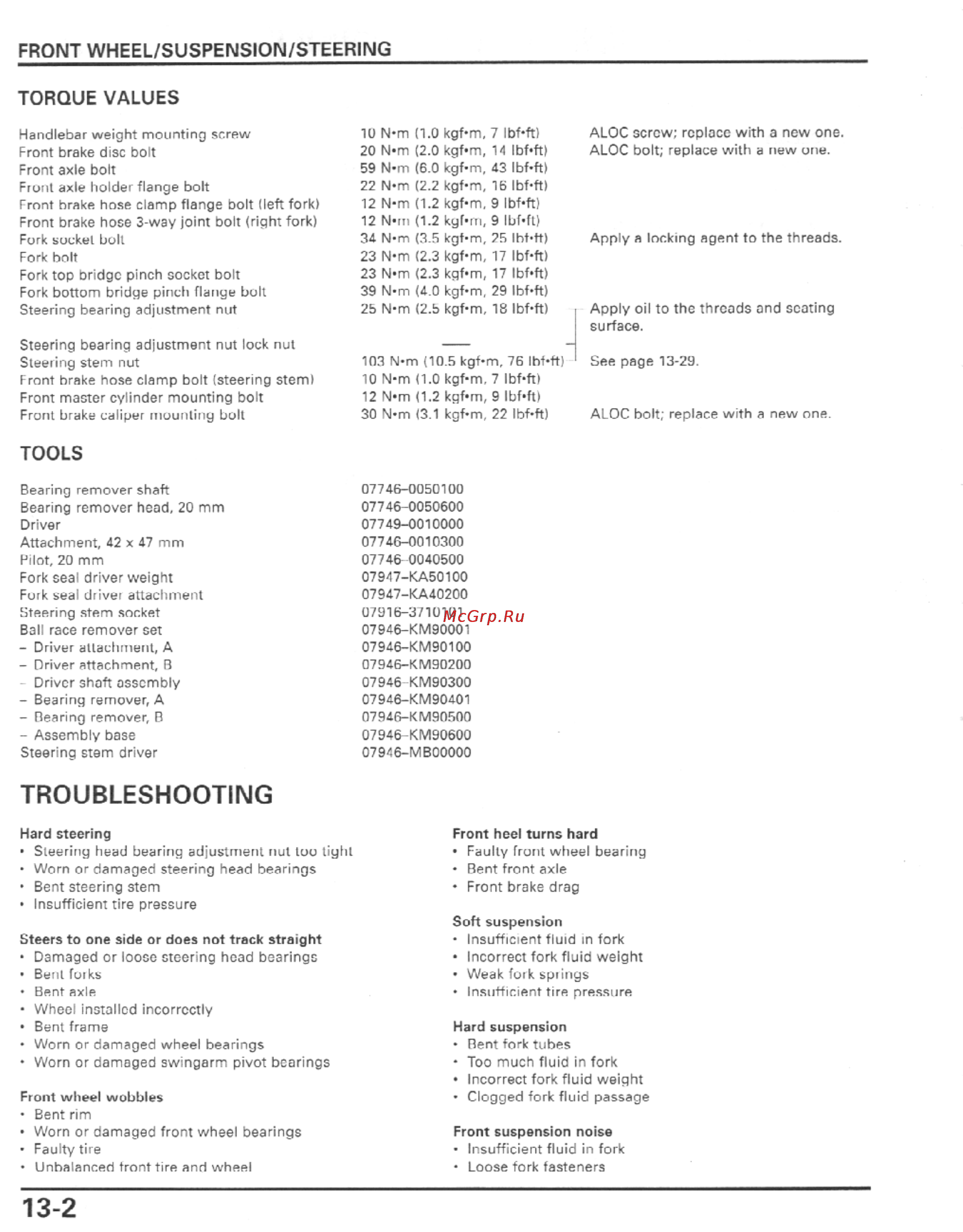

Honda CBR600F4I (2001-2003) [337/492] Troubleshooting

Содержание

Похожие устройства

FRONT WHEEL SUSPENSION STEERING TORQUE VALUES Handlebar weight mounting screw Front brake disc bolt Front axle bolt Front axle holder flange bolt Front brake hose clamp flange bolt left fork Front brake hose 3 way joint bolt right fork Fork socket boll Fork bolt Fork top bridge pinch socket bolt Fork bottom bridge pinch flange bolt Steering bearing adjustment nut 10 N m 1 0 kgf m 7 lbf ft 20 N m 2 0 kgf m 14 lbf ft 59 N m 6 0 kgf m 43 lbf ft 22 N m 2 2 kgf m 16 lbf ft 12 N m 1 2 kgf m 9 lbf ft 12 N m 1 2 kyf m 9 lbf ft 34 N m 3 5 kgf m 25 lbf ft 23 N m 2 3 kgf m 17 lbf ft 23 N m 2 3 kgf m 17 lbf ft 39 N m 4 0 kgf m 29 lbf ft 25 N m 2 5 kgf m 18 lbf ft ALOC screw replace with a new one ALOC bolt replace with a new one Steering bearing adjustment nut lock nut Steering stem nut Front brake hose clamp bolt steering stem Front master cylinder mounting bolt Front brake caliper mounting bolt 103 N m 10 5 kgf m 76 lbf ft 10 N m 1 0 kgf m 7 lbf ft 12 N m 1 2 kgf m 9 lbf ft 30 N m 3 1 kgf m 22 lbf ft See page 13 29 Apply a locking agent to the threads Apply oil to the threads and seating surface ALOC bolt replace with a new one TOOLS Bearing remover shaft Bearing remover head 20 mm Driver Attachment 42 x 47 mm Pilot 20 mm Fork seal driver weight Fork seal driver attachment Steering stem socket Ball race remover set Driver attachment A Driver attachment B Driver shaft assembly Bearing remover A Bearing remover B Assembly base Steering stem driver 07746 0050100 07746 0050600 07749 0010000 07746 0010300 07746 0040500 07947 KA50100 07947 KA40200 07916 3710101 07946 KM90001 07946 KM90100 07946 KM90200 07946 KM90300 07946 KM90401 07946 KM90500 07946 KM90600 07946 MB00000 TROUBLESHOOTING Hard steering Steering head bearing adjustment nut too light Worn or damaged steering head bearings Bent steering stem Insufficient tire pressure Steers to one side or does not track straight Damaged or loose steering head bearings Beni fuiks Bent axle Wheel installed incorrectly Bent frame Worn or damaged wheel bearings Worn or damaged swingarm pivot bearings Front wheel wobbles Bent rim Worn or damaged front wheel bearings Faulty tire Unbalanced front tire and wheel 13 2 Front heel turns hard Faulty front wheel bearing Bent front axle Front brake drag Soft suspension Insufficient fluid in fork Incorrect fork fluid weight Weak fork spiings Insufficient tire pressure Hard suspension Bent fork tubes Too much fluid in fork Incorrect fork fluid weight Clogged fork fluid passage Front suspension noise Insufficient fluid in fork Loose fork fasteners
