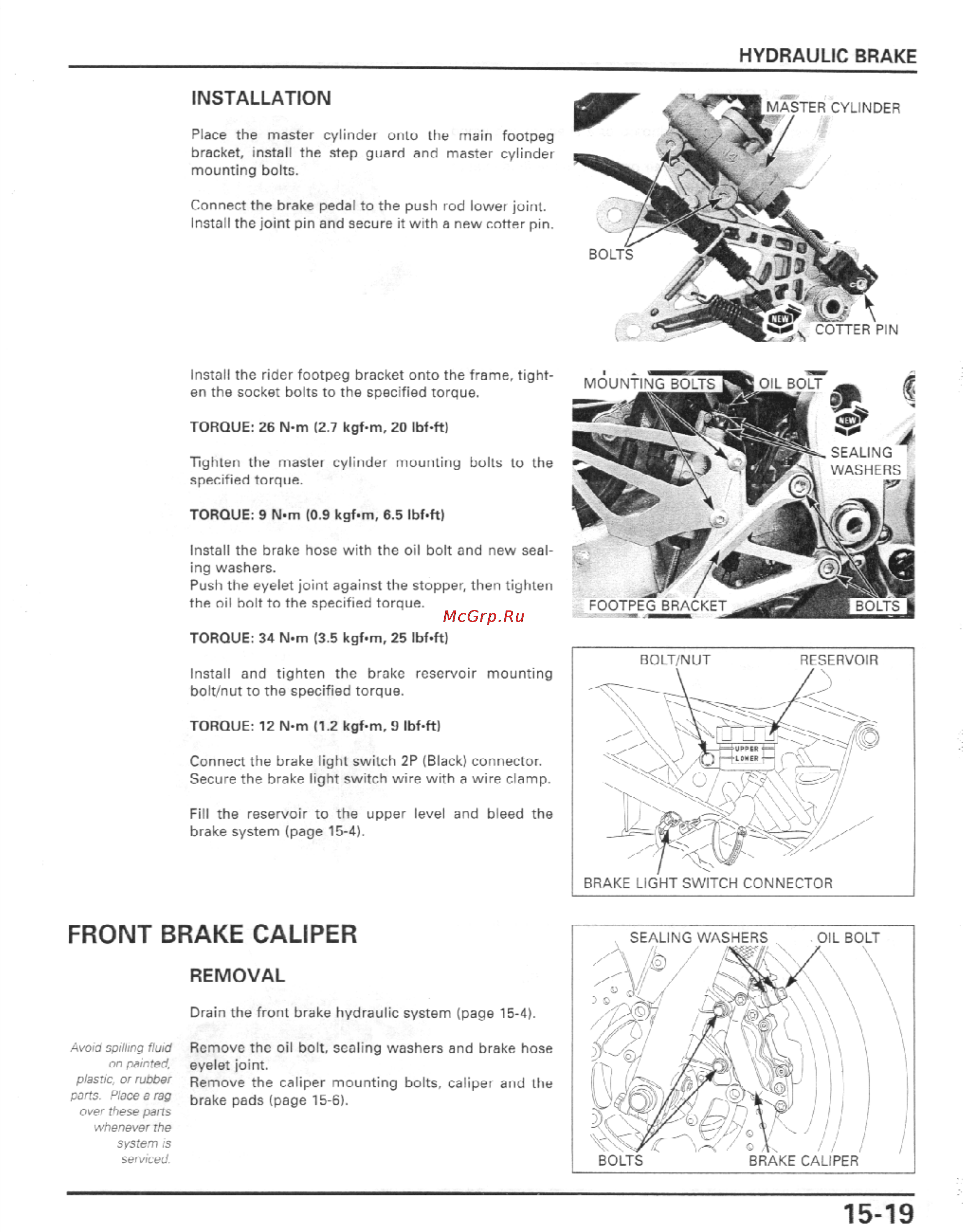

HYDRAULIC BRAKE INSTALLATION Place the master cylinder onto the main footpeg bracket install the step guard and master cylinder mounting bolts Connect the brake pedal to the push rod lower joint Install the joint pin and secure it with a new cotter pin Install the rider footpeg bracket onto the frame tight en the socket bolts to the specified torque TORQUE 26 N m 2 7 kgf m 20 Ibf ft Tighten the master cylinder mounting bulls to the specified torque TORQUE 9 N m 0 9 kgf m 6 5 Ibf ft Install the brake hose with the oil bolt and new seal ing washers Push the eyelet joint against the stopper then tighten the oil bolt to the specified torque TORQUE 34 N m 3 5 kgf m 25 Ibf ft Install and tighten the brake reservoir mounting bolt nut to the specified torque TORQUE 12 N m 1 2 kgf m 9 lbf ft Connect the brake light switch 2P Black connector Secure the brake light switch wire with a wire clamp Fill the reservoir to the upper level and bleed the brake system page 15 4 FRONT BRAKE CALIPER REMOVAL Drain the front brake hydraulic system page 15 4 Avoid spilling fluid on painted plastic or ruDbar ports Place a rag over these pans whenever the system is serviced Remove the oil bolt scaling washers and brake hose eyelet joint Remove the caliper mounting bolts caliper and the brake pads page 15 6
