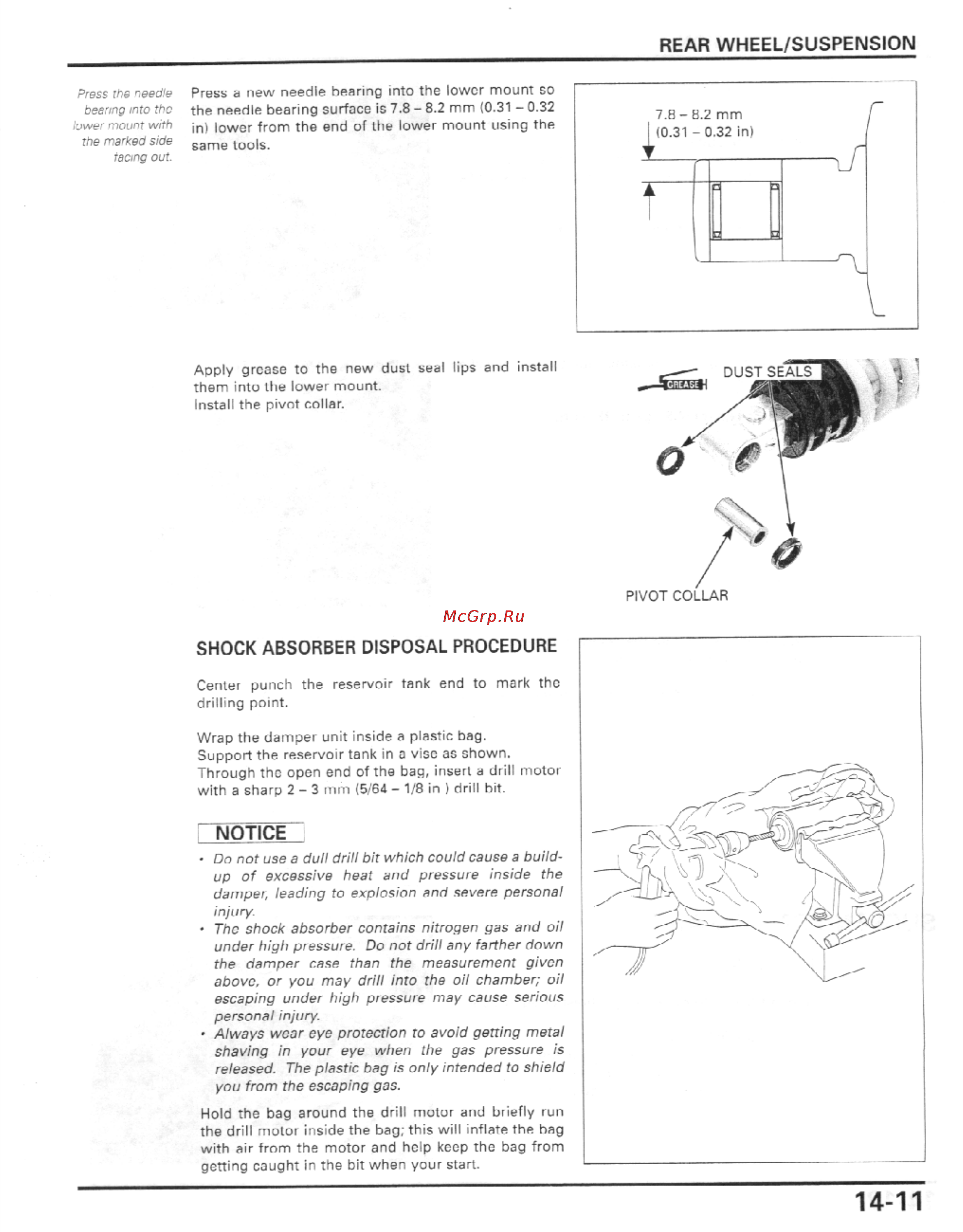

REAR WHEEL SUSPENSION Press ths needle bee ring into the lower mount with the marked side facing out Press a new needle hearing into the lower mount SO the needle bearing surface is 7 8 8 2 mm 0 31 0 32 in lower from the end of the lower mount using the same tools Apply grease to the new dust seal lips and install them into the lower mount Install the pivot collar PIVOT COLLAR SHOCK ABSORBER DISPOSAL PROCEDURE Center punch the reservoir tank end to mark the drilling point Wrap the damper unit inside a plastic bag Support the reservoir tank in a vise as shown Through the open end of the bag insert a drill motor with a sharp 2 3 mm 5 64 1 8 in drill hit NOTICE Do not use a dull drill bit which could cause a build up of excessive heat and pressure inside the damper leading to explosion and severe personal injury The shock absorber contains nitrogen gas and oil under high pressure Do not drill any farther down the damper case than the measurement given above or you may drill into the oil chamber oil escaping under high pressure may cause serious personal injury Always wear eye protection to avoid getting metal shaving in your eye when the gas pressure is released The plastic bag is only intended to shield you from the escaping gas Hold the bag around the drill motor and briefly run the drill motor inside the bag this will inflate the bag with air from the motor and help keep the bag from getting caught in the bit when your start 14 11
