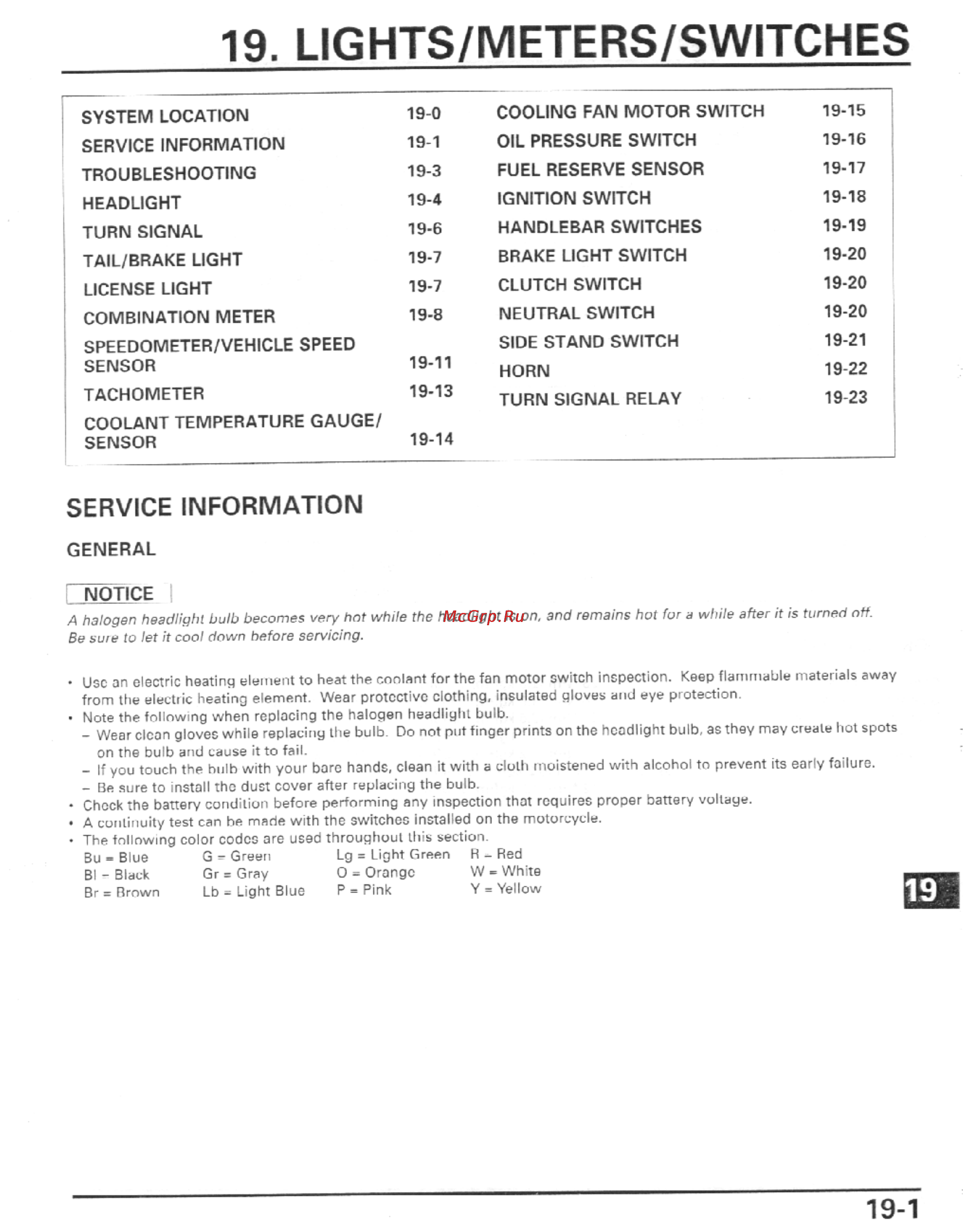

19 LIGHTS METERS SWITCHES SYSTEM LOCATION 19 0 COOLING FAN MOTOR SWITCH 19 15 SERVICE INFORMATION 19 1 OIL PRESSURE SWITCH 19 16 TROUBLESHOOTING 19 3 FUEL RESERVE SENSOR 19 17 HEADLIGHT 19 4 IGNITION SWITCH 19 18 TURN SIGNAL 19 6 HANDLEBAR SWITCHES 19 19 TAIL BRAKE LIGHT 19 7 BRAKE LIGHT SWITCH 19 20 LICENSE LIGHT 19 7 CLUTCH SWITCH 19 20 COMBINATION METER 19 8 NEUTRAL SWITCH 19 20 SIDE STAND SWITCH 19 21 HORN 19 22 TURN SIGNAL RELAY 19 23 SPEEDOMETER VEHICLE SPEED SENSOR 19 11 TACHOMETER 19 13 COOLANT TEMPERATURE GAUGE SENSOR 19 14 SERVICE INFORMATION GENERAL NOTICE A halogen headlight bulb becomes very hot while the headlight is on end remains hot for a while after it is turned off Be sure to let it cool down before servicing Use an electric heating element to heat the coolant for the fan motor switch inspection Keep flammable materials away from the electric heating element Wear protective clothing insulated gloves and eye protection Note the following when replacing the halogen headlight bulb Wear clean gloves while replacing the bulb Do not put finger prints on the headlight bulb as they may create hot spots on the bulb and cause it to fail If you touch the bulb with your bare hands clean it with a cloth moistened with alcohol to prevent its early failure Be sure to install the dust cover after replacing the bulb Check the battery condition before performing any inspection that requires proper battery voltage A continuity test can be made with the switches installed on the motorcycle The following color codes are used throughout this section Bu Blue G Green Lg Light Green H Red Bl Black Gr Gray O Orange W White Br Brown Lb Light Blue P Pink Y Yellow 19 19 1
