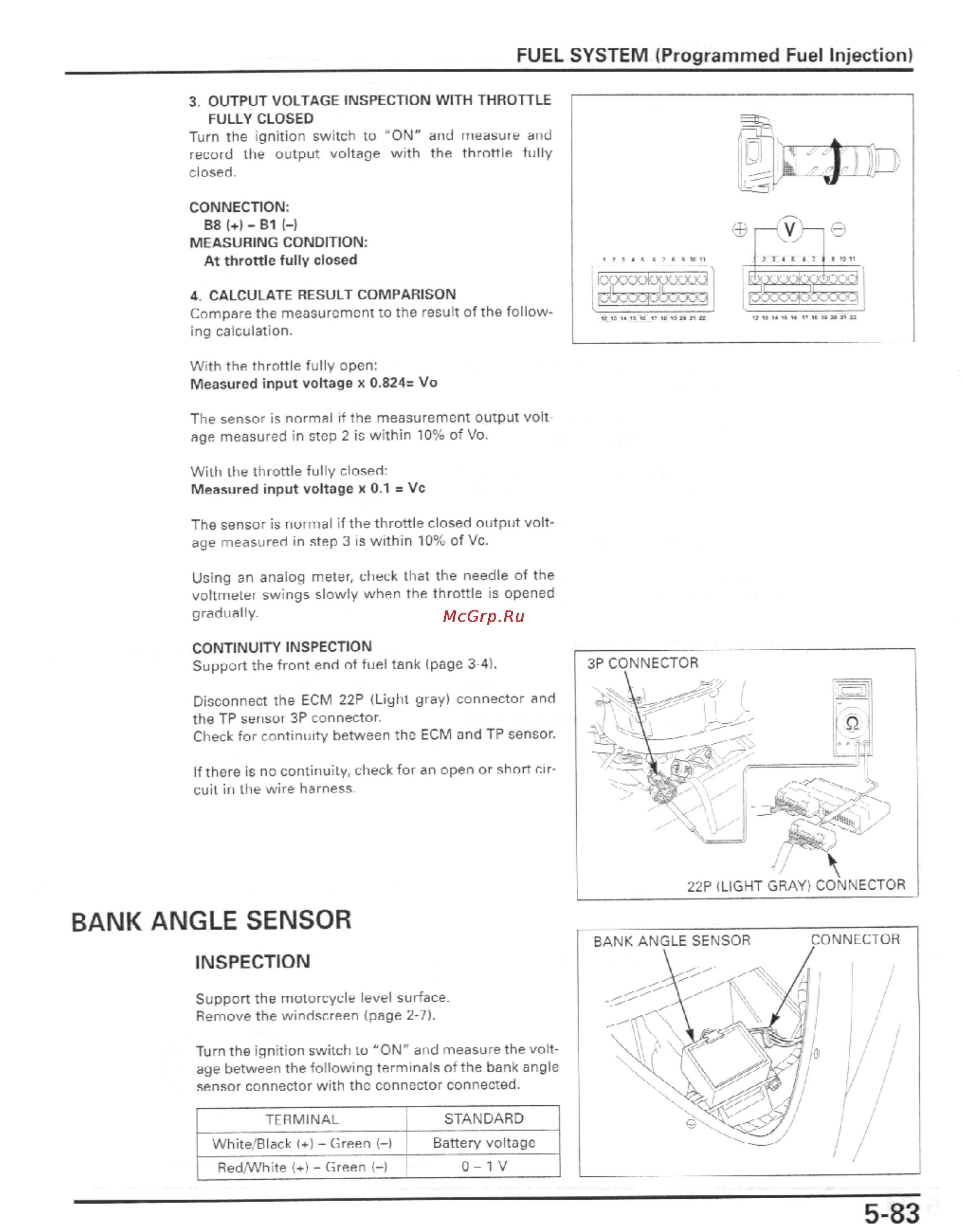

FUEL SYSTEM Programmed Fuel Injection 3 OUTPUT VOLTAGE INSPECTION WITH THROTTLE FULLY CLOSED Turn the ignition switch to ON and measure and record the output voltage with the throttle fully closed CONNECTION B8 B1 MEASURING CONDITION At throttle fully closed 4 CALCULATE RESULT COMPARISON Compare the measurement to the result of the follow ing calculation With the throttle fully open Measured input voltage x 0 824 Vo The sensor is normal if the measurement output volt age measured in step 2 is within 10 of Vo With Ihe throttle fully closed Measured input voltage x 0 1 Vc The sensor is normal if the throttle closed output volt age measured in step 3 is within 10 of Vc Using an analog meter check that the needle of the voltmeter swings slowly when the throttle is opened gradually CONTINUITY INSPECTION Support the front end of fuel tank page 3 4 Disconnect the ECM 22P Light gray connector and the TP sensor 3P connector Check for continuity between the ECM and TP sensor If there is no continuity check for an open or short cir cuit in the wire harness BANK ANGLE SENSOR INSPECTION Support the mutorcycle level surface Remove the windsr reen page 2 7 Turn the ignition switch to ON and measure the volt age between the following terminals of the bank angle sensor connector with the connector connected TERMINAL STANDARD White Black Green Battery voltage Red White Green 0 1 V
