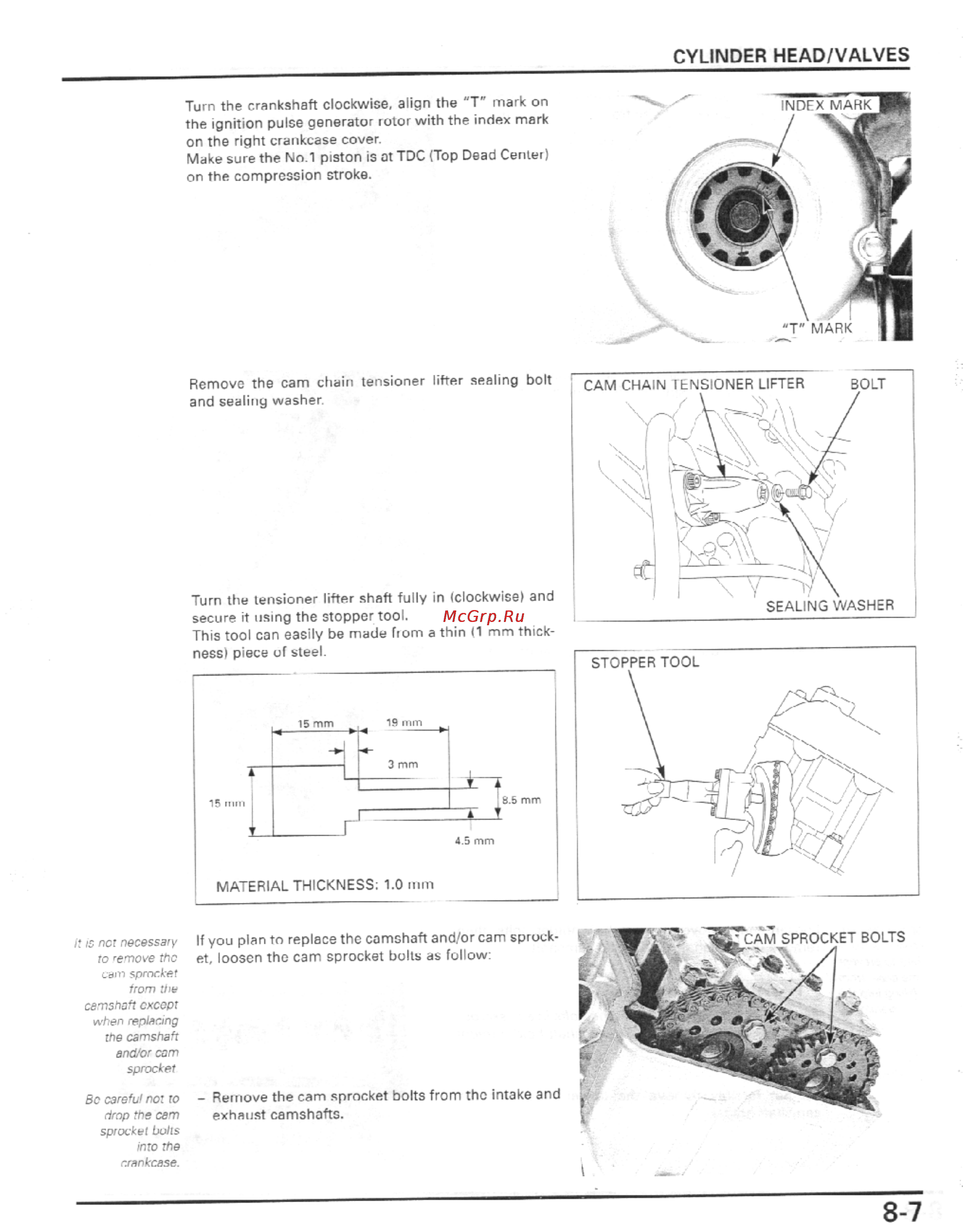

CYLINDER HEAD VALVES Turn the crankshaft clockwise align the T mark on the ignition pulse generator rotor with the index mark on the right crankcase cover Make sure the No 1 piston is at TDC Top Dead Center on the compression stroke Remove the cam chain tensioner lifter sealing bolt and sealing washer Turn the tensioner lifter shaft fully in clockwise and secure it using the stopper tool This tool can easily be made from a thin 1 mm thick ness piece of steel 15 mm CAM CHAIN IENSIONER LIFTER BOLT STOPPER TOOL 19 mm 3 mm MATERIAL THICKNESS 1 0 mm s net necessary to remove the cam sprocket from the camshaft except when replacing the camshaft and or cam sprocket Bo careful not to drop the cam sprocket bulls into the crankcase If you plan to replace the camshaft and or cam sprock et loosen the cam sprocket bolts as follow Remove the cam sprocket bolts from the intake and exhaust camshafts 8 7
