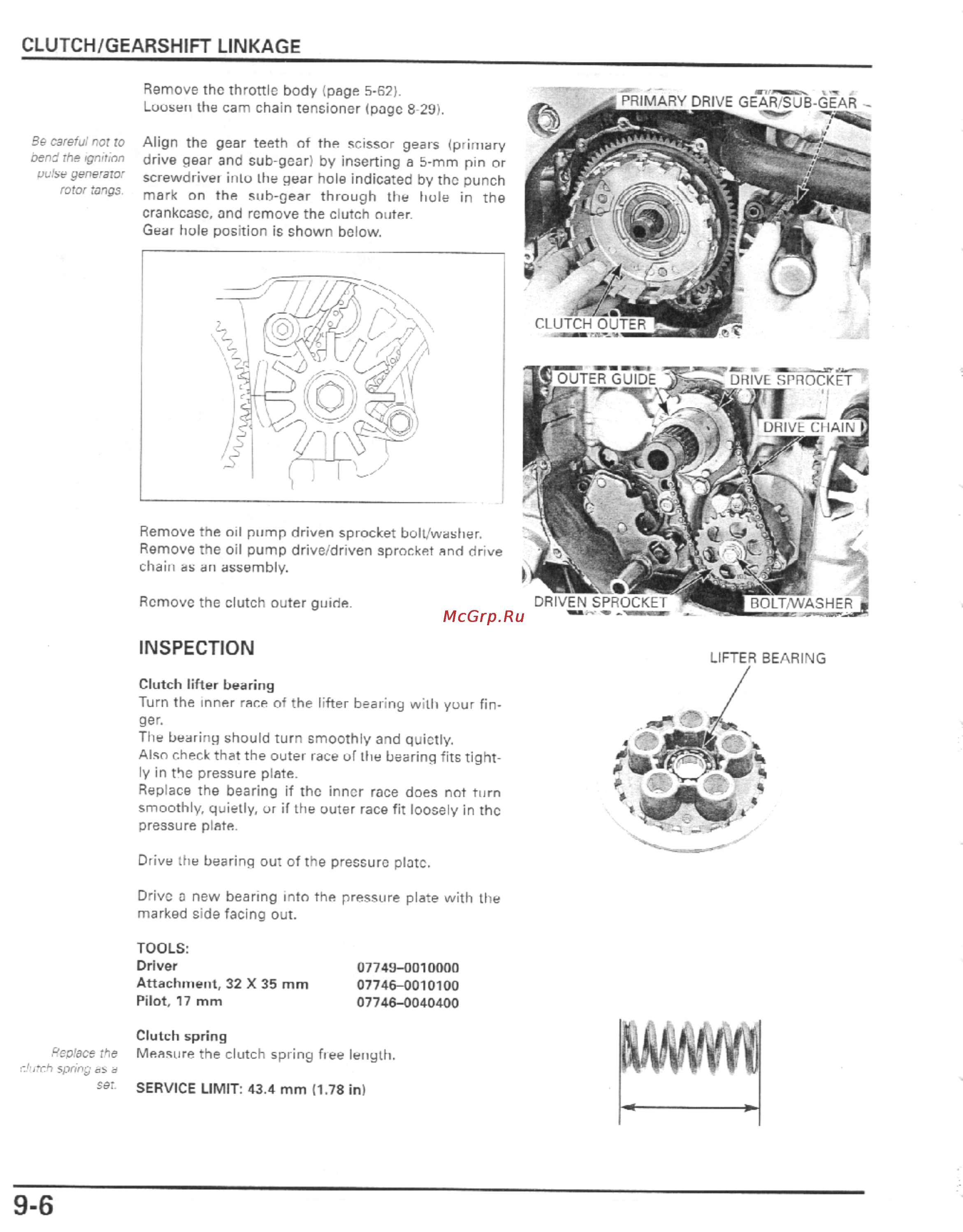

CLUTCH GEARSHIFT LINKAGE Remove the Throttle body page 5 62 Loosen the cam chain tensioner page 8 29 Be careful not to bend rhe ignition pulse generator rotor tangs Align the gear teeth of the scissor gears primary drive gear and sub gear by inserting a 5 mm pin or screwdriver into the gear hole indicated by the punch mark on the sub gear through the hole in the crankcase and remove the clutch outer Gear hole position is shown below Remove the oil pump driven sprocket bolt washer Remove the oil pump drive driven sprocket and drive chain as an assembly Remove the clutch outer guide INSPECTION LIFTER BEARING Clutch lifter bearing Turn the inner race of the lifter bearing with your fin ger The bearing should turn smoothly and quietly Also check that the outer race of the bearing fits tight ly in the pressure plate Replace the bearing if the inner race does not turn smoothly quietly or if the outer race fit loosely in the pressure plate Drive the bearing out of the pressure plate Drive a new bearing into the pressure plate with the marked side facing out TOOLS Driver Attachment 32 X 35 mm Pilot 17 mm Replace the dutch spring as a set 9 6 07749 0010000 07746 0010100 07746 0040400 Clutch spring Measure the clutch spring free length SERVICE LIMIT 43 4 mm 1 78 in WWW
