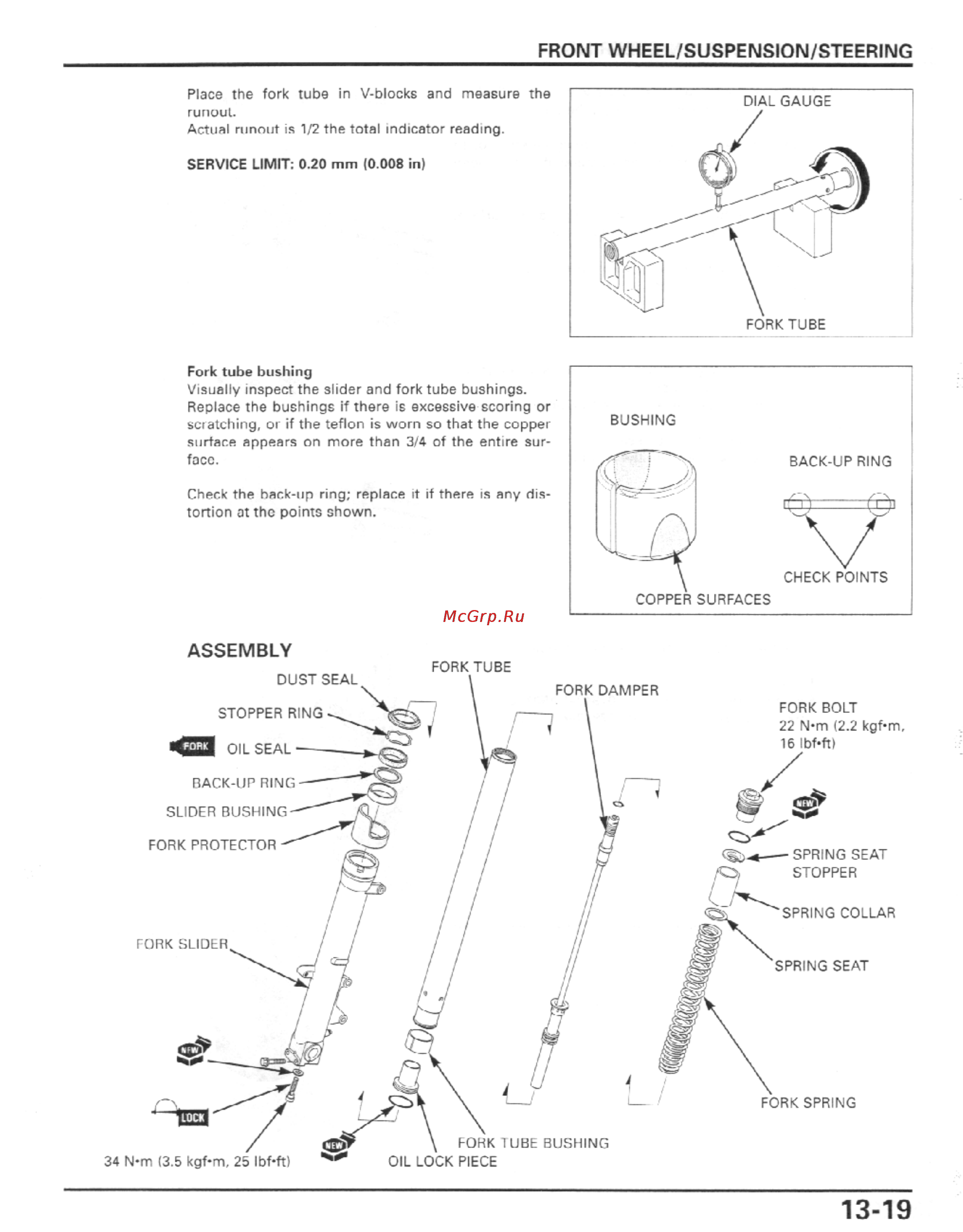

FRONT WHEEL SUSPENSION STEERING Place the fork tube in V blocks and measure the runout Actual runout is 1 2 the total indicator reading SERVICE LIMIT 0 20 mm 0 008 in Fork tube bushing Visually inspect the slider and fork tube bushings Replace the bushings if there is excessive scoring or scratching or if the teflon is worn so that the copper surface appears on more than 3 4 of the entire sur face Check the back up ring replace it if there is any dis tortion at the points shown ASSEMBLY DUST SEAL FORK TUBE DAMPER FORK BOLT 22 N m 2 2 kgf m 16 lbf ft STOPPER RING FORK OIL SEAL BACK UP RING SLIDER BUSHING FORK PROTECTOR SPRING SEAT STOPPER SPRING COLLAR FORK SI IDER SPRING SEAT FORK SPRING ÖUbHING 34 N m 3 5 kgf m 25 lbf ft OIL LOCK PIECE 13 19
