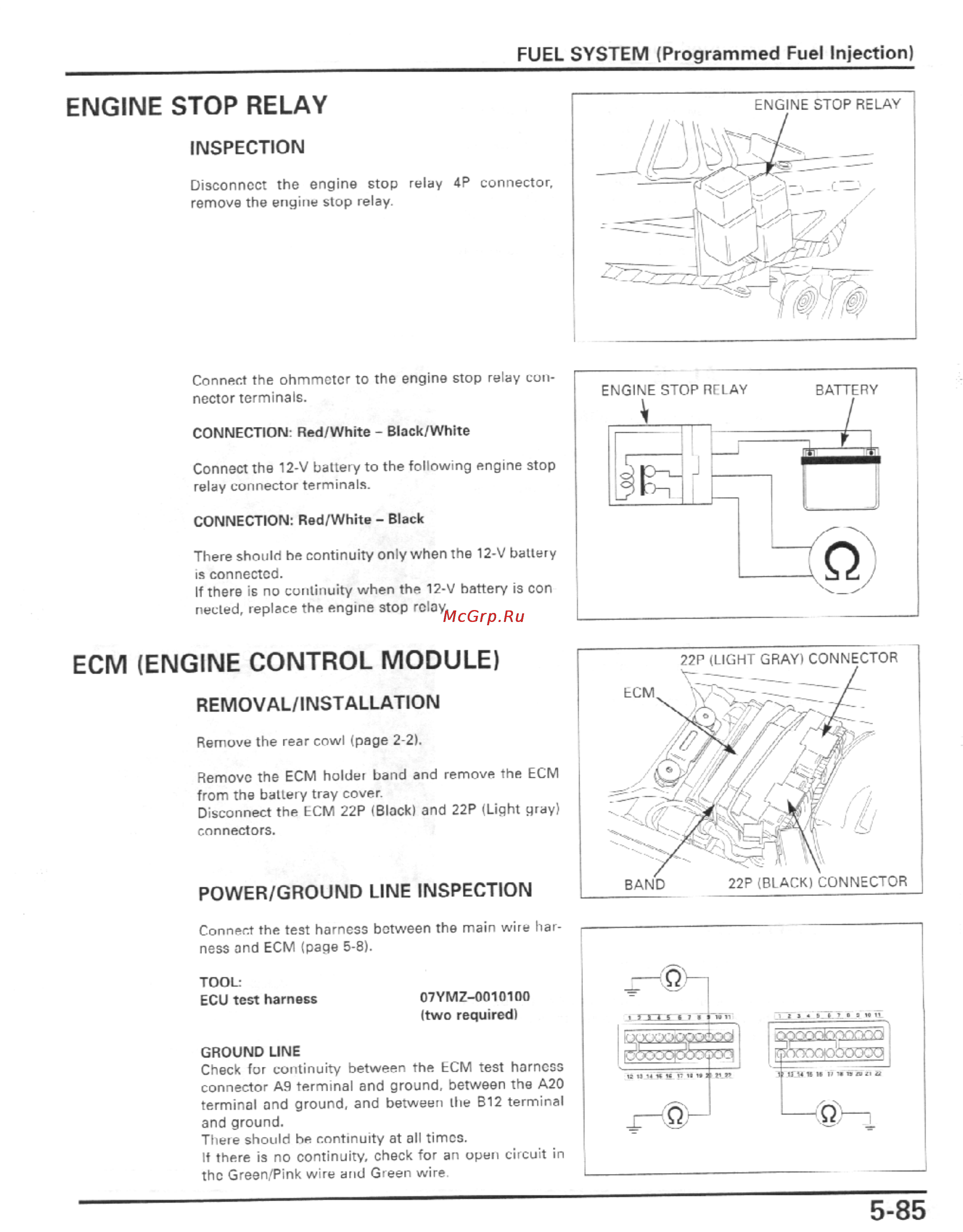

FUEL SYSTEM Programmed Fuel Injection ENGINE STOP RELAY INSPECTION Disconnect the engine stop remove the engine stop relay relay 4P connector Connect the ohmmeter to the engine stop relay con nector terminals CONNECTION Red White Black White Connect the 12 V battery to the following engine stop relay connector terminals CONNECTION Red White Black There should he continuity only when the 12 V battery is connected If there is no continuity when the 12 V battery is con necled replace the engine stop relay ECM ENGINE CONTROL MODULE REMOVAL INSTALLAT1ON Remove the rear cowl page 2 2 Remove the ECM holder band and remove the ECM from the battery tray cover Disconnect the ECM 22P Black and 22P Light gray connectors POWER GROUND LINE INSPECTION Connect the test harness between the main wire har ness and ECM page 5 8 TOOL ECU test harness 07YMZ O010100 two required GROUND LINE Check for continuity between the ECM test harness connector A9 terminal and ground between the A20 terminal and ground and between the B12 terminal and ground There should be continuity at all times If there is no continuity check for an open circuit in the Green Pink wire and Green wire 5 85
