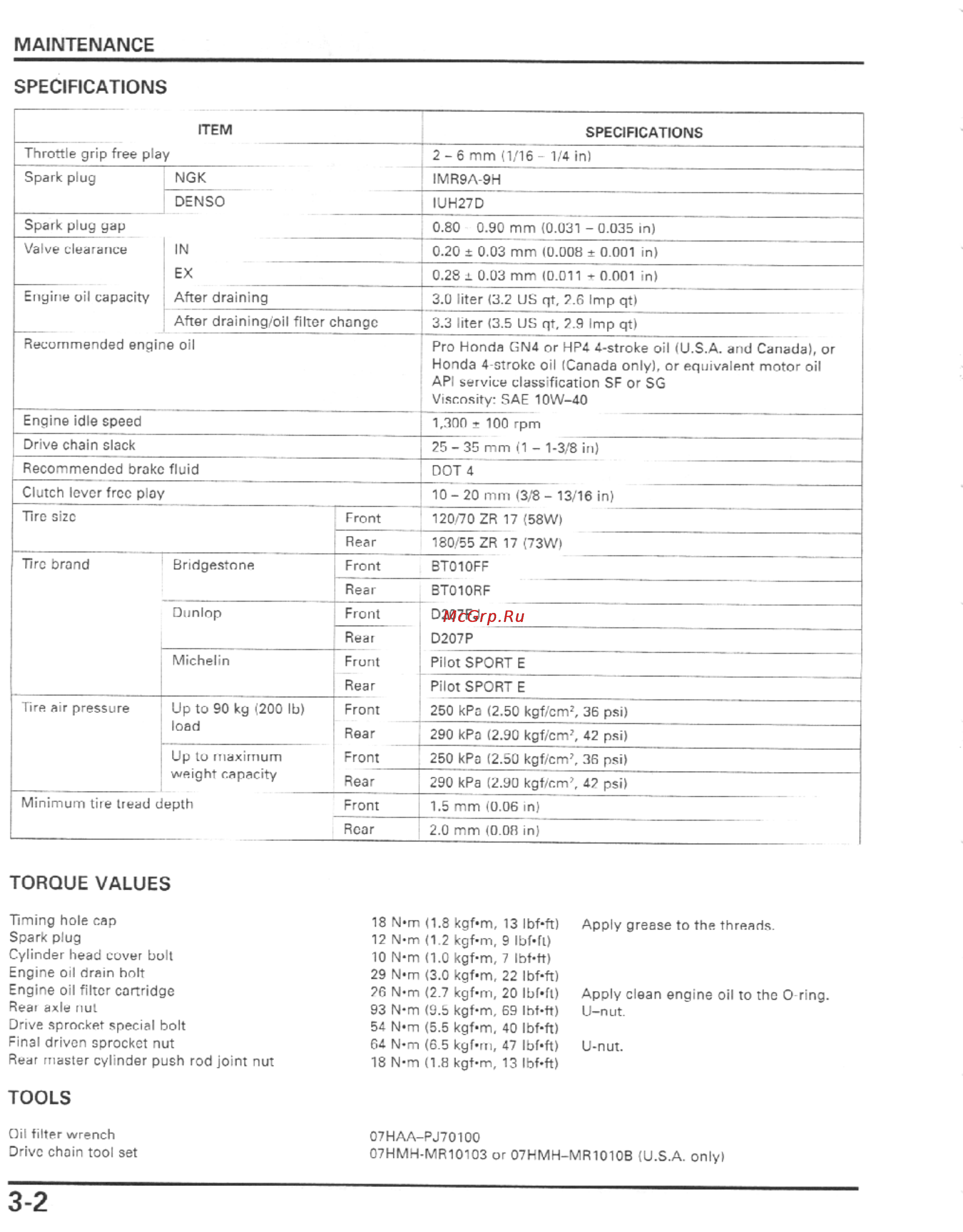

MAINTENANCE SPECIFICATIONS ITEM SPECIFICATIONS Throttle grip free play Spark plug 2 6 mm 1 16 1 4 in NGK IMR9A 9H DENSO IUH27D Spark plug yap Valve clearance Engine oil capacity 0 80 0 90 mm 0 031 0 035 in IN 0 20 0 03 mm Ü 008 0 001 in EX 0 28 x 0 03 mm 0 011 0 001 in After draining 3 0 liter 3 2 US qt 2 6 Imp qt After draining oil filter change 3 3 liter 3 5 US qt 2 9 Imp qt Recommended engine oil Pro Honda GN4 or HP4 4 stroke oil U S A and Canada or Honda 4 strokc oil Canada only or equivalent motor oil API service classification SF or SG Viscosity SAE 10W 40 Engine idle speed 1 300 100 rpm Drive chain slack 25 35 mm 1 1 3 8 in Recommended brake fluid DOT 4 Clutch lever free play 10 20 mm 3 8 13 16 in Tire size Tire brand Bridgestone Dunlop Michelin Tire air pressure Front 120 70 ZR 17 58W Rear 180 55 ZR 17 73W Front BT010FF Rear BT010RF Front D207FJ Rear D207P Front Pilot SPORT E Rear Pilot SPORT E Up to 90 kg 200 lb load Front 250 kPa 2 50 kgf cm2 36 psi Rear 290 kPa 2 90 kgf cm7 42 psi Up to maximum weight capacity Front 250 kPa 2 50 kgf cm7 36 psi Rear 290 kPa 2 90 kgf cm7 42 psi Front 1 5 mm 0 06 in Rear 2 0 mm 0 08 in Minimum tire tread depth TORQUE VALUES Timing hole cap Spark plug Cylinder head cover bolt Engine oil drain holt Engine oil filter cartridge Rear axle nut Drive sprocket special bolt Final driven sprocket nut Rear master cylinder push rod joint nut 18 N m 1 8 kgf m 13 lbf ft 12 N m 1 2 kgf m 9 lbf ft 10 N m 1 0 kgf m 7 lbf ft 29 N m 3 0 kgf m 22 lbf ft 26 N m 2 7 kgf m 20 lbf ft 93 N m 9 5 kgf m 69 lbf ft 54 N m 5 5 kgf m 40 lbf ft 64 N m 6 5 kgf m 47 lbf ft 18 N m 1 8 kgf m 13 lbf ft Apply grease to the threads Apply clean engine oil to the O ring U nut U nut TOOLS Oil filter wrench Drive chain tool set 3 2 07HAA PJ70100 07HMH MR10103 or 07HMH MR1010B U S A only
