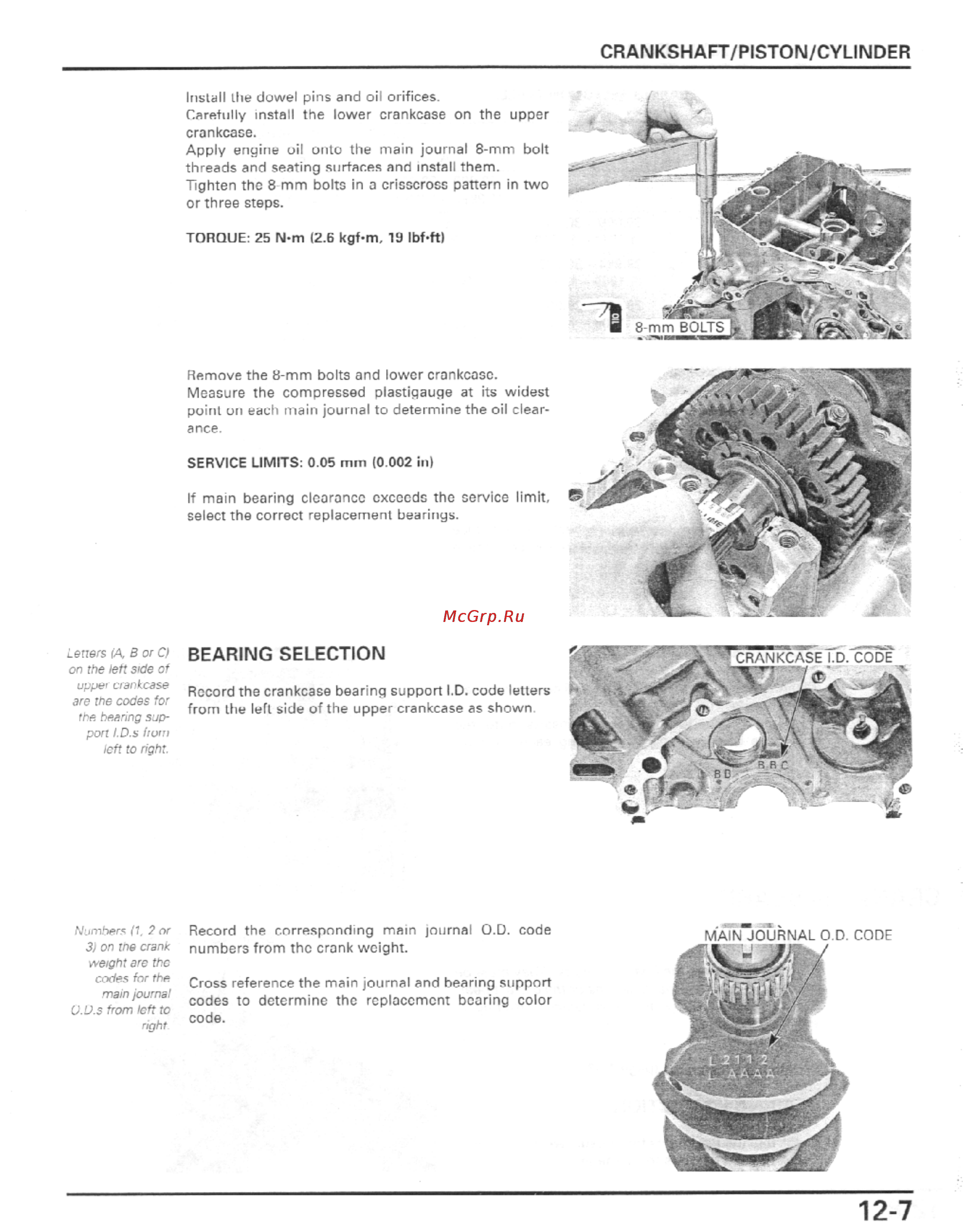

CRANKSHAFT PISTON CYLINDER Install the dowel pins and oil orifices Carefully install the lower crankcase on the upper crankcase Apply engine oil onto the main journal 8 mm bolt threads and seating surfaces and install them Tighten the 8 mm bolts in a crisscross pattern in two or three steps TORQUE 25 N m 2 6 kgf m 19 Ibbft Remove the 8 mm bolts and lower crankcase Measure the compressed plastigauge at its widest point on each main journal to determine the oil clear ance SERVICE LIMITS 0 05 min 0 002 in If main bearing clearance exceeds the service limit select the correct replacement bearings Letters A B or C on the left side of upper crankcase are the codes for the hearing sup port I D s torn left to right Numbers 1 2 or 3 on me crank weight are the codes for the main journal O D s from loft to right BEARING SELECTION Record the crankcase bearing support I D code letters from the left side of the upper crankcase as shown Record the corresponding main journal O D code numbers from the crank weight Cross reference the main journal and bearing support codes to determine the replacement bearing color code 12 7
