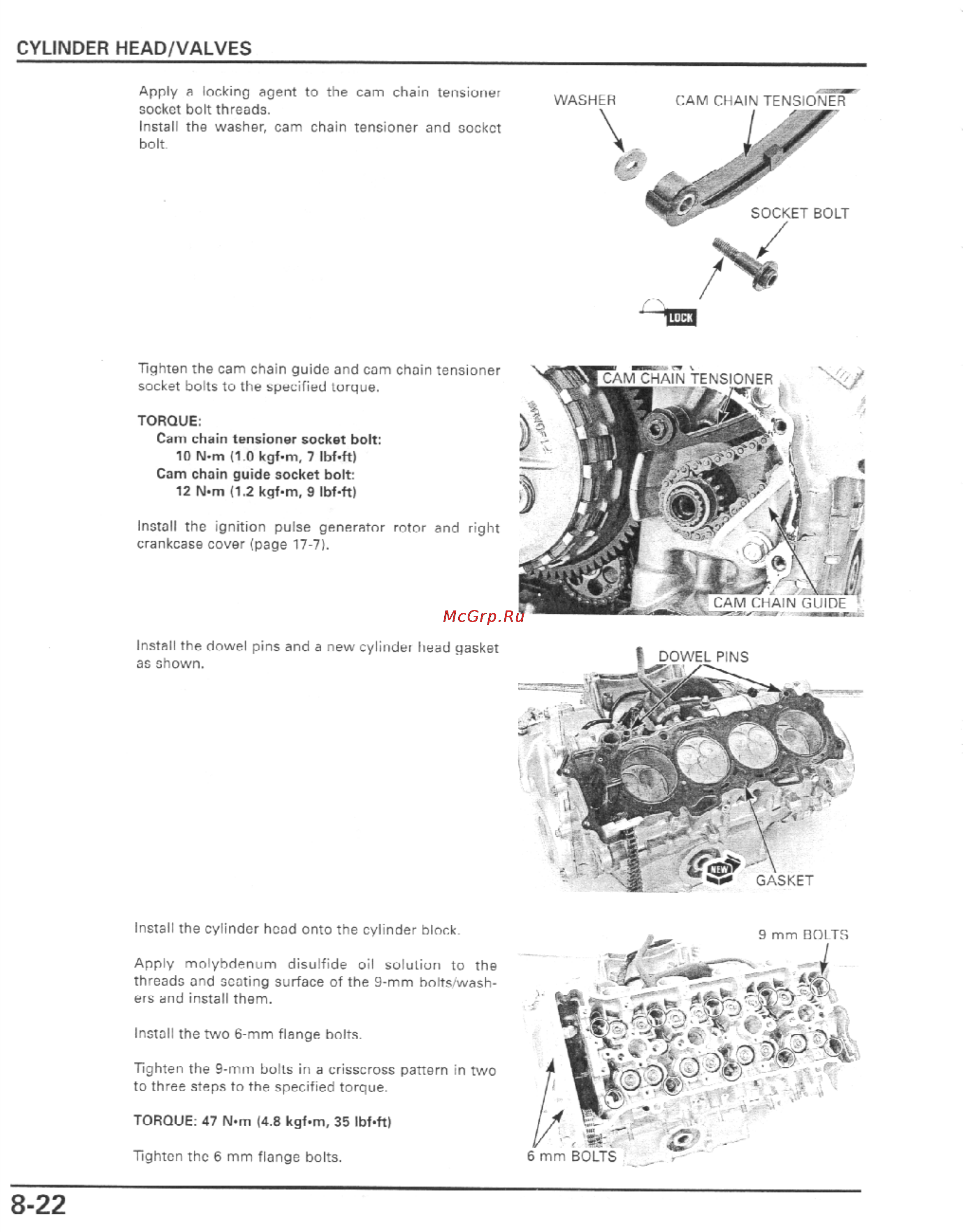

CYLINDER HEAD VALVES Apply a locking agent to the cam chain tensioner socket bolt threads Install the washer cam chain tensioner and socket bolt Tighten the cam chain guide and cam chain tensioner socket bolts to the specified torque TORQUE Cam chain tensioner socket bolt 10 N m 1 0 kgf m 7 Ibf ft Cam chain guide socket bolt 12 N m 1 2 kgf m 9 Ibf ft Install the ignition pulse generator rotor and right crankcase cover page 17 7 Install the dowel pins and a new cylinder head gasket as shown Install the cylinder head onto the cylinder block Apply molybdenum disulfide oil solution to the threads and seating surface of the 9 mm bolts washers and install them Install the two 6 mm flange bolts Tighten the 9 mm bolls in a crisscross pattern in two to three steps to the specified torque TORQUE 47 N m 4 8 kgf m 35 Ibf ft Tighten the 6 mm flange bolts 8 22
