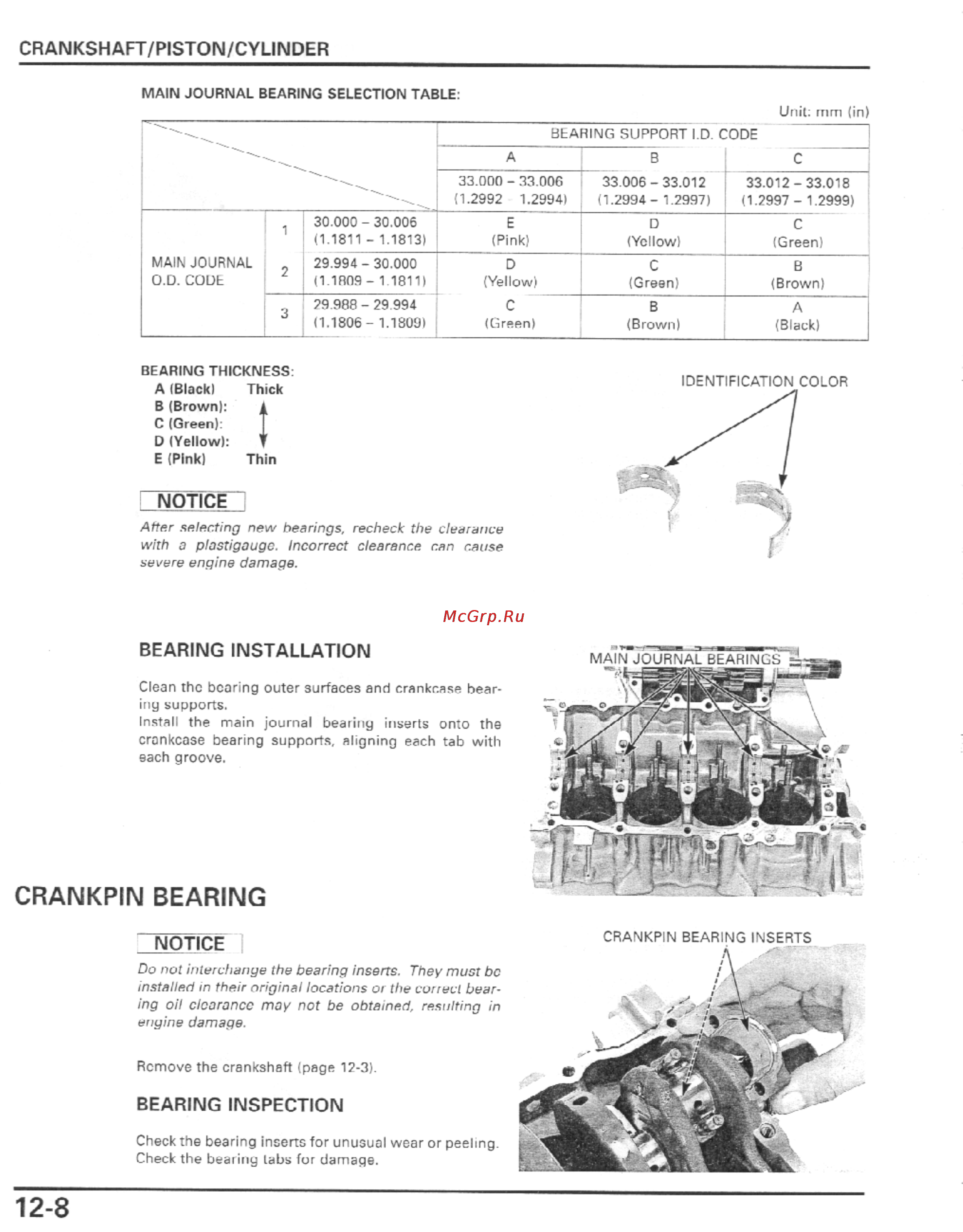

CRANKSHAFT PISTON CYLINDER MAIN JOURNAL BEARING SELECTION TABLE Unit mm in BEARING SUPPORT I D CODE MAIN JOURNAL O D CODE A B 33 000 33 006 1 2992 1 2994 33 006 33 012 1 2994 1 2997 33 012 33 018 1 2997 1 2999 C 1 30 000 30 006 1 1811 1 1813 E Pink D Yellow C Green 2 29 994 30 000 1 1009 1 1811 D Yellow c Green B Brown 3 29 988 29 994 1 1806 1 1809 c Green B Brown A Black BEARING THICKNESS A Black Thick B Brown C Green D Yellow E Pink Thin NOTICE After selecting new hearings recheck the clearance with a plastigauge Incorrect clearance can cause severe engine damage BEARING INSTALLATION Clean the bearing outer surfaces and crankcase bear ing supports Install the main journal bearing inserts onto the crankcase bearing supports aligning each tab with each groove CRANKPIN BEARING NOTICE Do not interchange the bearing inserts They must be installed in their original locations or the correct bear ing oil clearance may not be obtained resulting in engine damage Remove the crankshaft page 12 3 BEARING INSPECTION Check the bearing inserts for unusual wear or peeling Check the bearing labs for damage 12 8 CRANKPIN BEARING INSERTS
