4-48
Chapter 4: Software support
Chapter 4

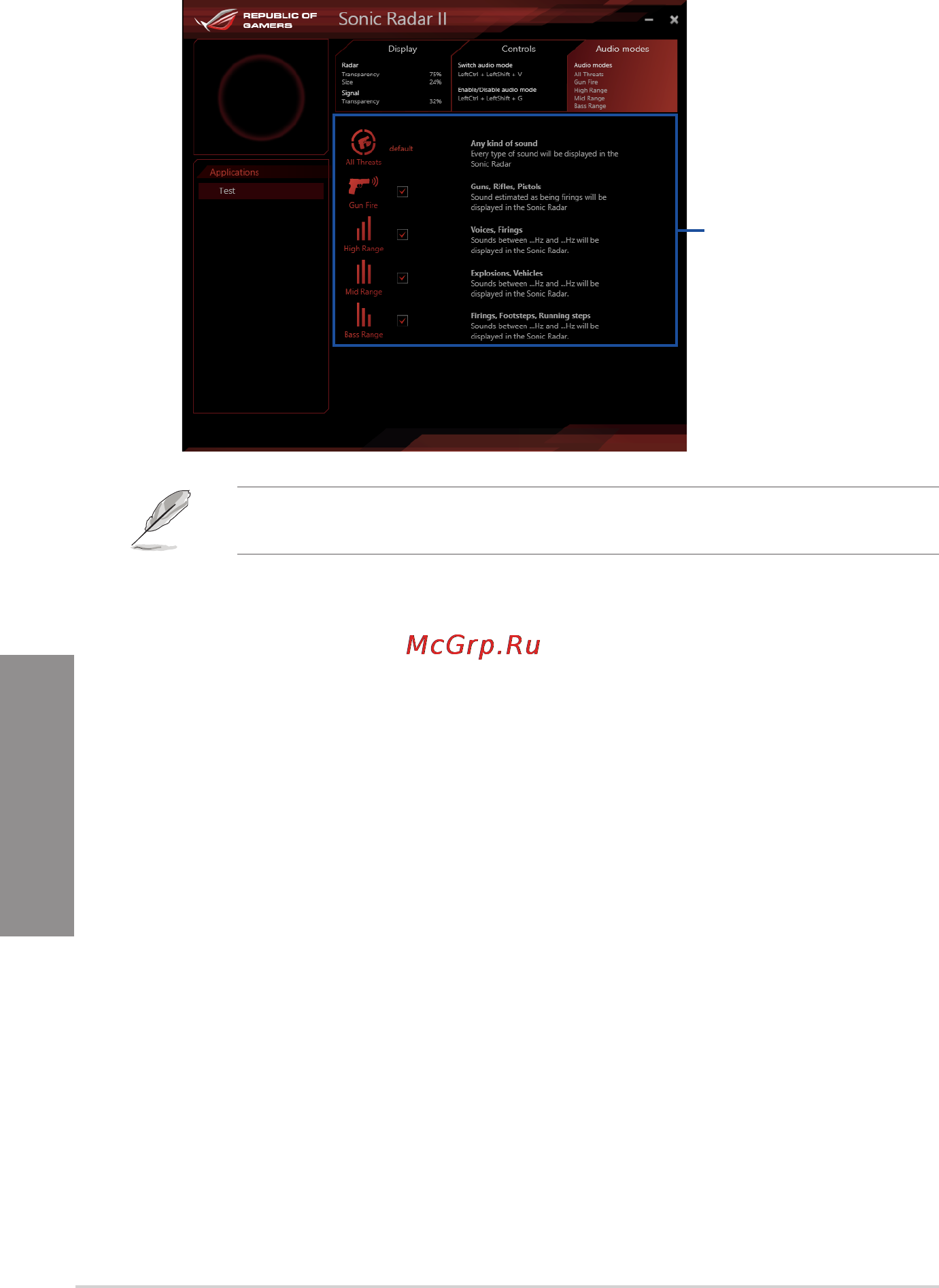

Audio Mode/Radar Selection menu
Allowsyoutocongurethesoundenhancers.
Tick to choose the
desired sound enhancer
AudioMode/RadarSelectionareenabledwithshortcutkeysinthegame.Refertothe
Controlstabformoreinformationabouttheshortcutkeysettings.
__E9550_R5E_UG.indb 48 8/7/2014 2:11:37 PM
