2-22
Chapter 2: Basic Installation
Chapter 2

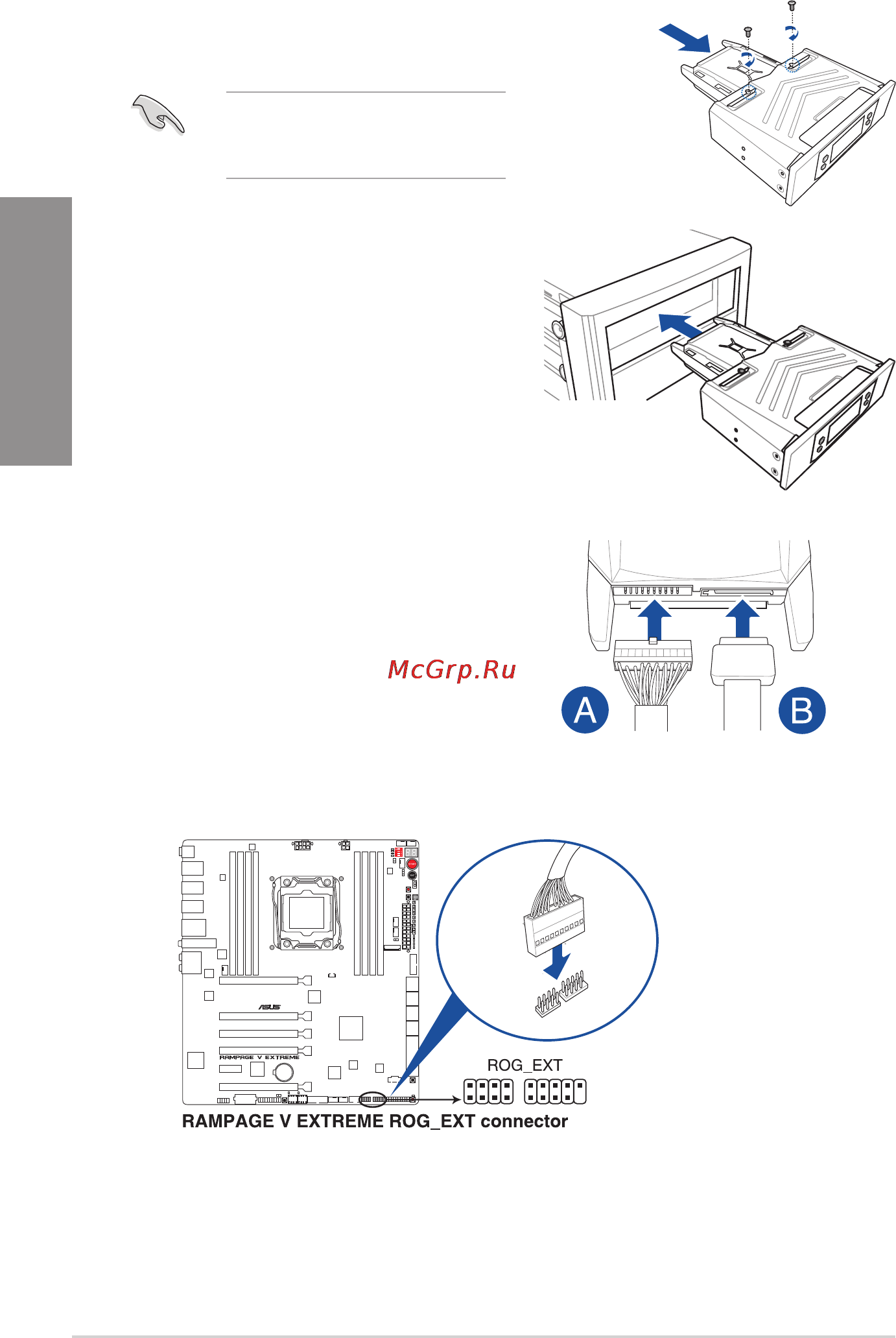

9. Connect the OC Panel data cable (A)
andaSATAPowercable(B)totheOC
Panel.
10. LocatetheROG_EXTconnectoronthemotherboardandconnecttheOCPanelcable.
4. Secure the OC Panel to the OC Panel
5.25-inch drive bay metal case with the
two (2) screws.
EnsurethattheOCPaneltssnugly
into the OC Panel 5.25-inch drive bay
metal case.
5. Shut down your computer.
6. Open your computer chassis and remove
the front cover of an available 5.25-inch
drive bay.
7. Align and insert the OC Panel and the
OC Panel 5.25-inch drive bay metal case
assembly into the drive bay.
8. Secure the OC Panel and the OC Panel
5.25-inch drive bay metal case assembly
into the drive bay with four (4) screws.
11. Bootyourcomputer.
12. PresstheOCPanelLCMPowerbuttontoturnontheOCPanelLCMdisplay.
__E9550_R5E_UG.indb 22 8/7/2014 2:11:25 PM
