1-42

Chapter 1: Product introduction

Chapter 1

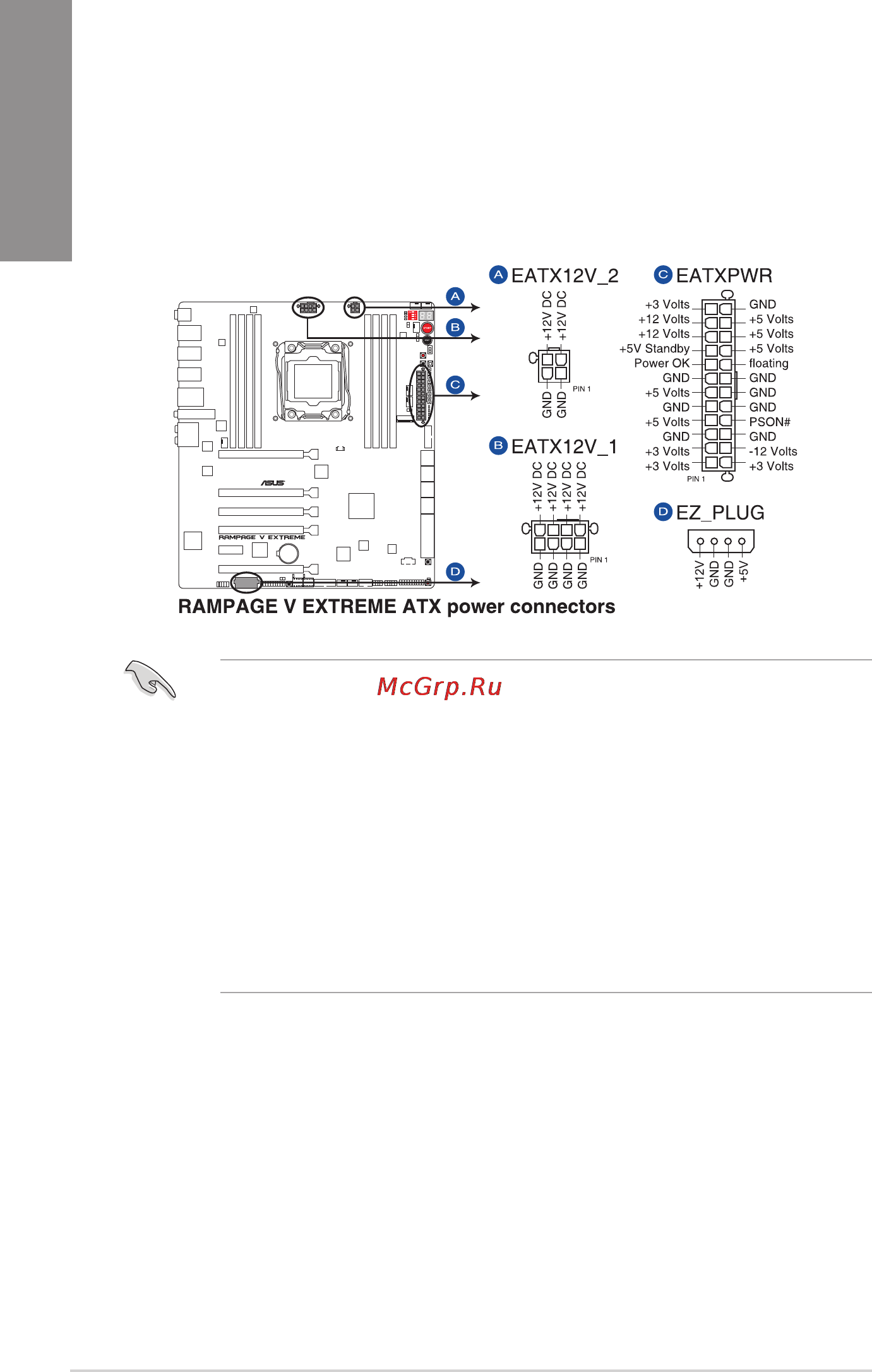

12. ATX power connectors (24-pin EATXPWR; 4-pin EATX12V_1; 8-pin EATX12V_2;

4-pin EZ_PLUG)

These connectors are for ATX power supply plugs. The power supply plugs are

designed to t these connectors in only one orientation. Find the proper orientation and

push down rmly until the connectors completely t.

• For a fully congured system, we recommend that you use a power supply unit

(PSU) that complies with ATX 12 V Specication 2.0 (or later version) and provides a

minimum power of 450 W.

• Do not forget to connect the 4-pin/8-pin EATX12 V power plug; otherwise, the system

will not boot.

• Connect the 4-pin EZ_PLUG power plugs to ensure sufcient power when you install

multiple graphics cards.

• Use of a PSU with higher power output is recommended when conguring a system

with more power-consuming devices. The system may become unstable or may not

boot up if the power is inadequate.

• If you want to use two or more high-end PCI Express x16 cards, use a PSU with at

least 1000W of output power to ensure system stability.
