ASUS RAMPAGE V EXTREME
1-11
Chapter 1

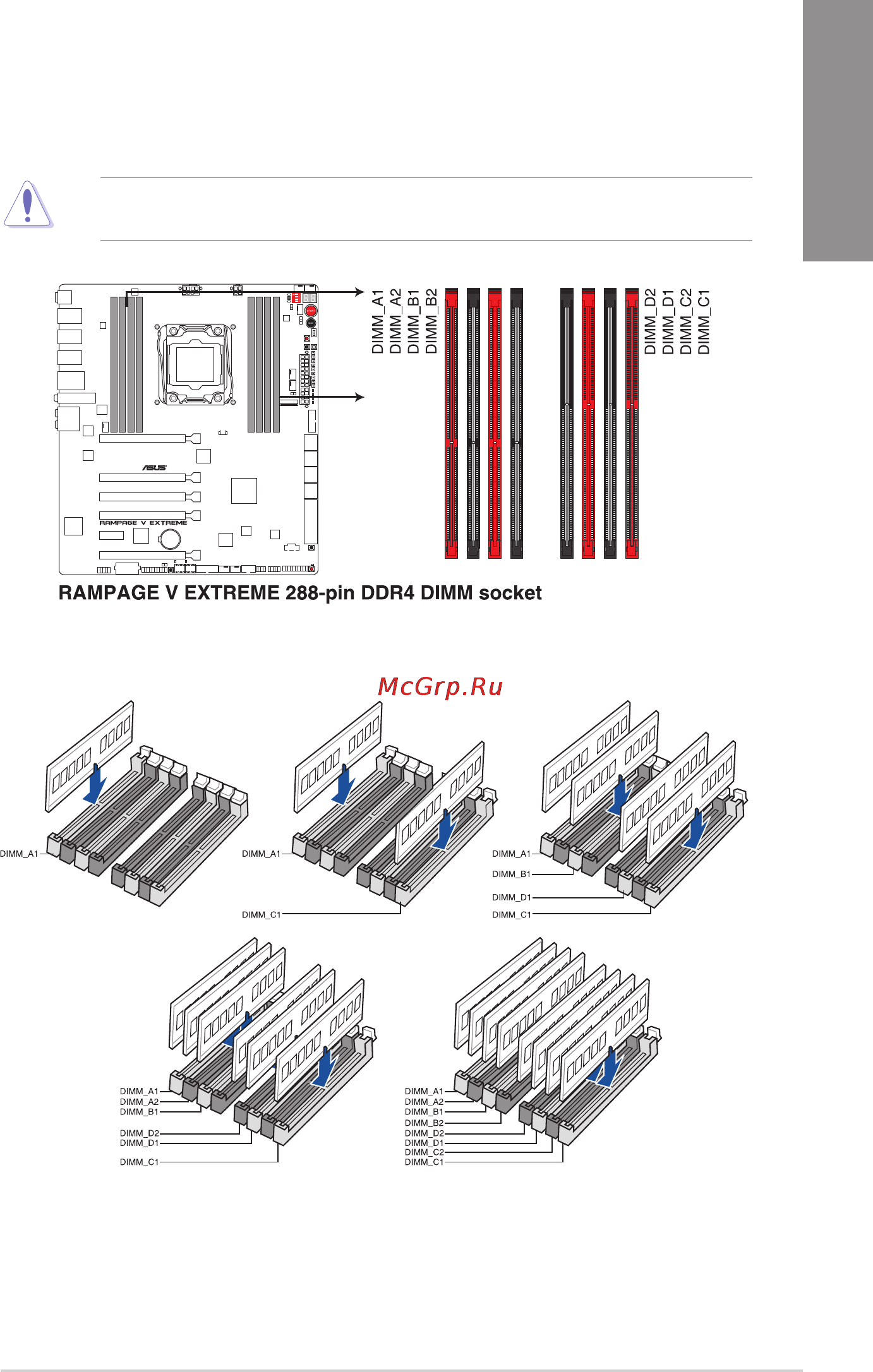

Recommended memory configurations
1.2.4 System memory
The motherboard comes with eight Double Data Rate 4 (DDR4) Dual Inline Memory Module
(DIMM) slots.
A DDR4 module is notched differently from a DDR3 or DDR2 module. DO NOT install a
DDR3 or DDR2 memory module to the DDR4 slot.
__E9550_R5E_UG.indb 11 8/7/2014 2:11:14 PM
