Chapter 1: Product introduction
Chapter 1

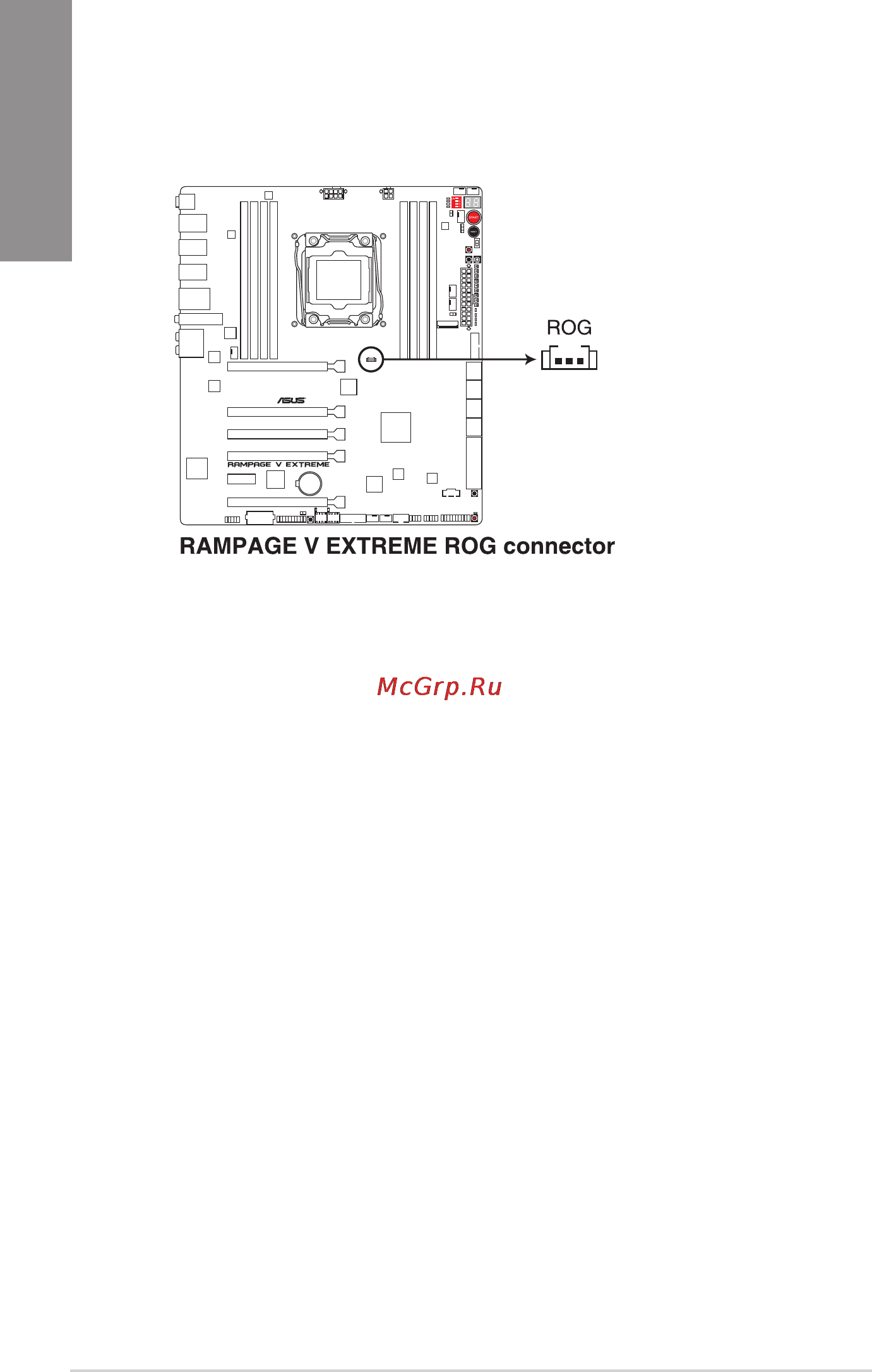

14. ROG Logo LED connector (3-pin ROG)
This connector is for the box (labelled Republic of Gamers) below the CPU socket.
Connect the box’s cable to this connector. The box lights up when you turn on the system.
__E9550_R5E_UG.indb 44 8/7/2014 2:11:18 PM
